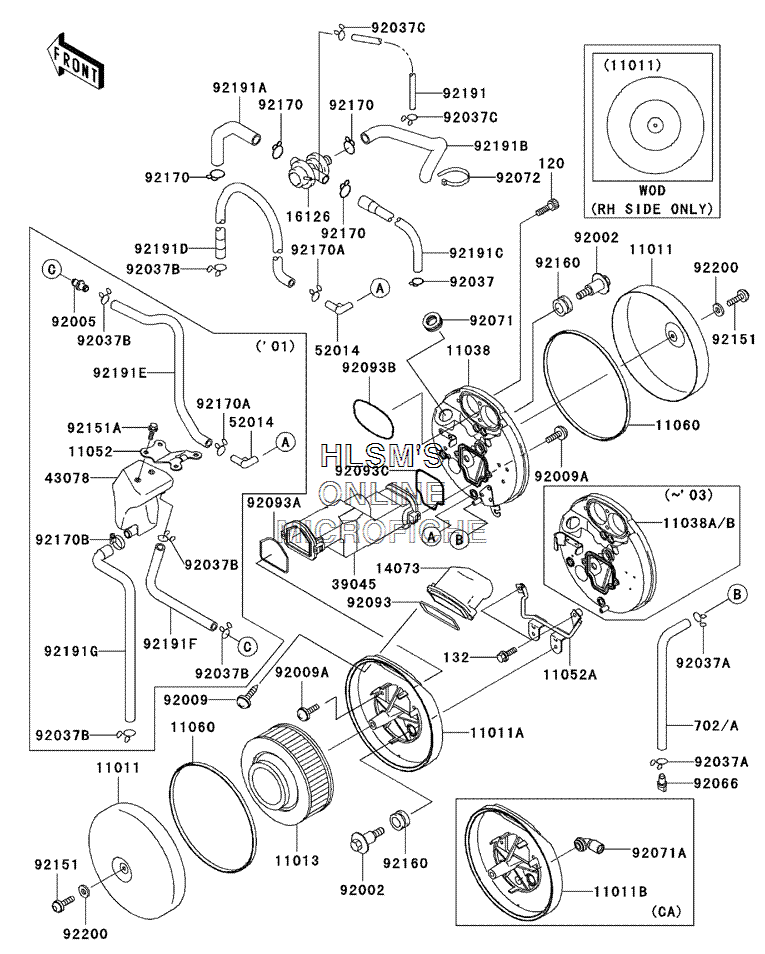

AIR CLEANER для Kawasaki Vulcan 1500 Drifter - 2005 года выпуска
-
№АртикулНазвание
-
1101111011-1576 CASE-AIR FILTER, OUTSIDECASE-AIR FILTER, OUTSIDE
-
11011A11011-1597 CASE-AIR FILTER (LEFT) (US ONLY)CASE-AIR FILTER (LEFT) (US ONLY)
-
11011B11011-1601 CASE-AIR FILTER (LEFT) (CALIF, ONLY)CASE-AIR FILTER (LEFT) (CALIF, ONLY)
-
1101311013-1248 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1103811038-0005 CASE-ASSY-AIR FILTER (RIGHT)CASE-ASSY-AIR FILTER (RIGHT)
-
11052A11052-1166 BRACKETBRACKET
-
1106011060-1968 GASKET, AIR FILTER CASEGASKET, AIR FILTER CASE
-
1407314073-1739 DUCT, AIR FILTERDUCT, AIR FILTER
-
1612616126-1384 VALVE, AIR SWITCHVALVE, AIR SWITCH
-
3904539045-0003 DUCT-ASSY, CENTERDUCT-ASSY, CENTER
-
5201452014-1083 ELBOWELBOW
-
9200292002-1595 BOLT, M6X14X13.5BOLT, M6X14X13.5
-
9200992009-1264 SCREW, TAPPING, 5X16SCREW, TAPPING, 5X16
-
92009A92009-1905 SCREW, 5X20SCREW, 5X20
-
9203792037-1468 CLAMPCLAMP
-
92037A92037-147 CLAMP, TUBECLAMP, TUBE
-
92037B92037-1593 CLAMPCLAMP
-
92037C92037-1712 CLAMPCLAMP
-
9206692066-1211 PLUG, DRAINPLUG, DRAIN
-
9207192071-1028 GROMMET, AIR FILTERGROMMET, AIR FILTER
-
92071A92071-1114 GROMMET, AIR FILTER (CALIF, ONLY)GROMMET, AIR FILTER (CALIF, ONLY)
-
9207292072-1195 BAND, L=202BAND, L=202
-
9209392093-1408 SEAL, AIR FILTER CASESEAL, AIR FILTER CASE
-
92093A92093-1459 SEAL, DUCT (LEFT)SEAL, DUCT (LEFT)
-
92093B92093-1485 SEALSEAL
-
92093C92093-1491 SEAL, DUCT (RIGHT)SEAL, DUCT (RIGHT)
-
9215192151-1438 BOLT, 8X14BOLT, 8X14
-
9216092160-1594 DAMPERDAMPER
-
9217092170-1445 CLAMP, TUBECLAMP, TUBE
-
92170A92170-1695 CLAMPCLAMP
-
120120S0616 BOLT-SOCKETBOLT-SOCKET
-
132132J0625 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
702702A07230 TUBE-RUBBER, 7X10X230TUBE-RUBBER, 7X10X230
-
9219192191-1312 TUBE, THROTTLE-VALVETUBE, THROTTLE-VALVE
-
92191A92191-1359 TUBE, HEAD, FRONT-VALVETUBE, HEAD, FRONT-VALVE
-
92191B92191-1360 TUBE, VALVE-CLEANERTUBE, VALVE-CLEANER
-
92191C92191-1369 TUBE, HEAD, REAR-VALVETUBE, HEAD, REAR-VALVE
-
92191D92191-1406 TUBE, BREATHERTUBE, BREATHER
-
9220092200-1463 WASHER, 8.5X20X1.6WASHER, 8.5X20X1.6
