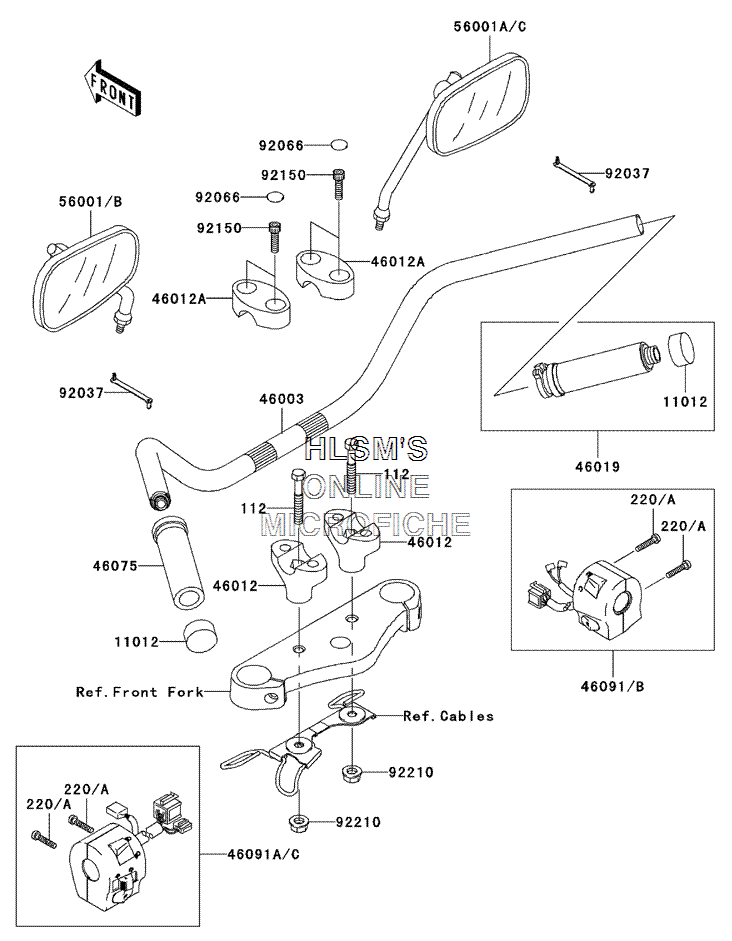

HANDLEBAR для Kawasaki Vulcan 1500 Drifter - 2005 года выпуска
-
№АртикулНазвание
-
112112H1065 BOLT-UPSET, 10X65BOLT-UPSET, 10X65
-
220A220R0525 SCREW-PAN-CROSS, 5X25SCREW-PAN-CROSS, 5X25
-
1101211012-1975 CAP, GRIP ENDCAP, GRIP END
-
4600346003-1556 HANDLEHANDLE
-
4601246012-1272 HOLDER-HANDLE, LOWERHOLDER-HANDLE, LOWER
-
46012A46012-1273 HOLDER-HANDLE, UPPERHOLDER-HANDLE, UPPER
-
4601946019-1109 GRIP-ASSY, THROTTLEGRIP-ASSY, THROTTLE
-
4607546075-1074 GRIP (LEFT)GRIP (LEFT)
-
4609146091-0016 HOUSING-ASSY-CONTROL (RIGHT)HOUSING-ASSY-CONTROL (RIGHT)
-
46091A46091-0017 HOUSING-ASSY-CONTROL (LEFT)HOUSING-ASSY-CONTROL (LEFT)
-
56001B56001-1592 MIRROR-ASSY (LEFT)MIRROR-ASSY (LEFT)
-
56001C56001-1593 MIRROR-ASSY (RIGHT)MIRROR-ASSY (RIGHT)
-
9203792037-1903 CLAMP, SPEED, L=80.5CLAMP, SPEED, L=80.5
-
9206692066-1285 PLUGPLUG
-
9215092150-1942 BOLT, SOCKET, 10X23BOLT, SOCKET, 10X23
-
9221092210-1139 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
