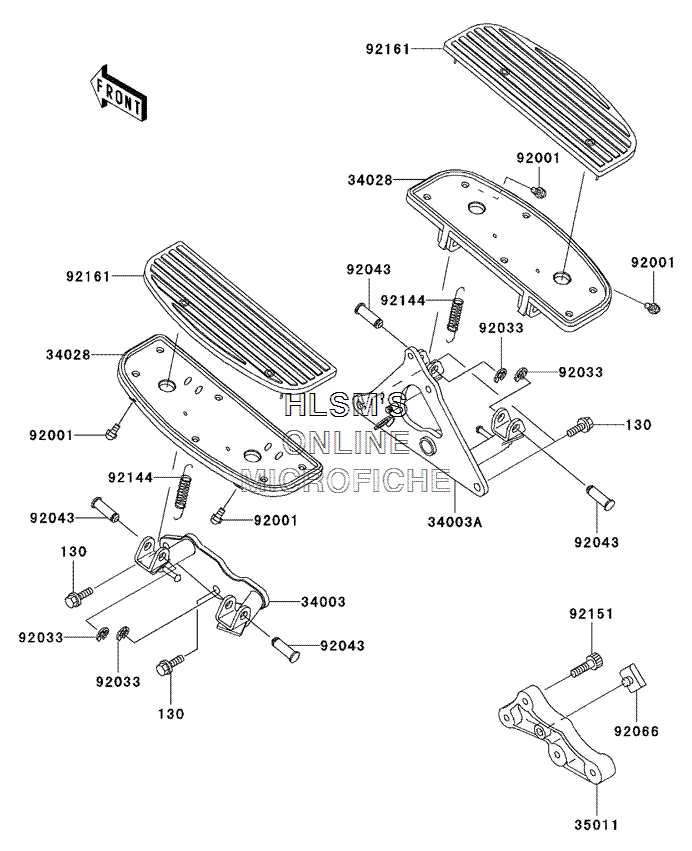

FOOTRESTS для Kawasaki Vulcan 1500 Drifter - 2005 года выпуска
-
№АртикулНазвание
-
130130J1030 BOLT-FLANGED, 10X30BOLT-FLANGED, 10X30
-
3400334003-1501 HOLDER-STEP, FRONT (LEFT)HOLDER-STEP, FRONT (LEFT)
-
34003A34003-1502 HOLDER-STEP, FRONT (RIGHT)HOLDER-STEP, FRONT (RIGHT)
-
3402834028-1497 STEP, FRONTSTEP, FRONT
-
3501135011-1974 STAY, REAR STEP (RIGHT)STAY, REAR STEP (RIGHT)
-
9200192001-1905 BOLT, BANK SENSORBOLT, BANK SENSOR
-
9203392033-1166 RING-SNAP, 10MMRING-SNAP, 10MM
-
9204392043-1358 PIN, 12X37PIN, 12X37
-
9206692066-1548 PLUGPLUG
-
9214492144-1266 SPRING, BRAKE PEDAL RETURNSPRING, BRAKE PEDAL RETURN
-
9215192151-1525 BOLT, SOCKET, 8X25BOLT, SOCKET, 8X25
-
9216192161-1154 DAMPER, FRONT STEPDAMPER, FRONT STEP
