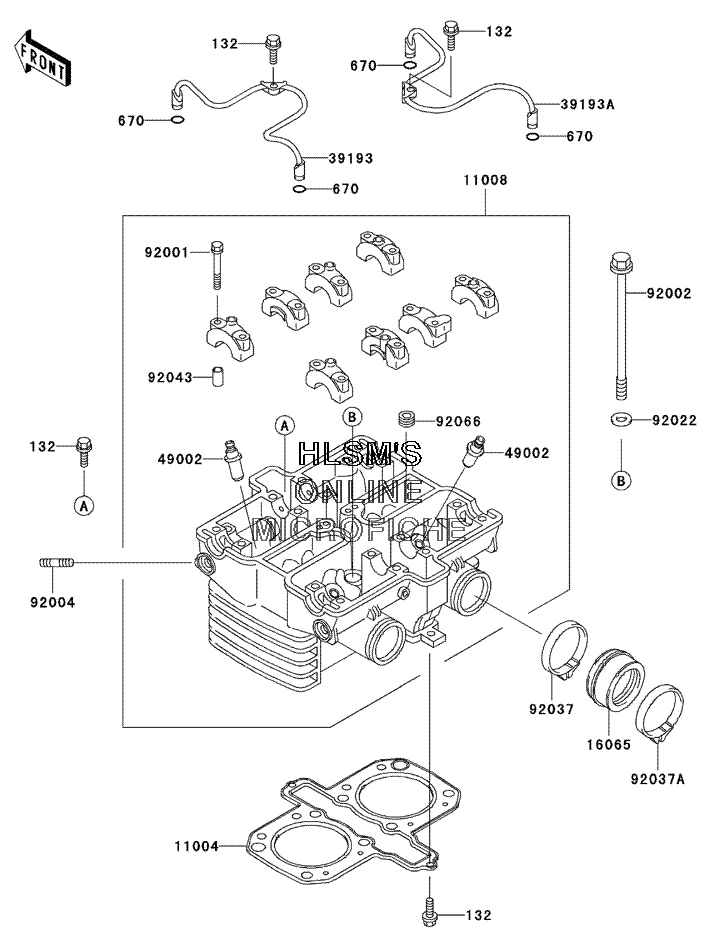

CYLINDER HEAD для Kawasaki Vulcan 500 LTD - 2005 года выпуска
-
№АртикулНазвание
-
132132G0620 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
670670D1507 O-RING, 7MMO-RING, 7MM
-
1100411004-1159 GASKET, HEADGASKET, HEAD
-
1100811008-1231 HEAD, COMP, CYLINDERHEAD, COMP, CYLINDER
-
1606516065-1320 HOLDER, CARBURETORHOLDER, CARBURETOR
-
3919339193-1038 PIPE, OIL, OIL (LEFT)PIPE, OIL, OIL (LEFT)
-
39193A39193-1039 PIPE, OIL, OIL (RIGHT)PIPE, OIL, OIL (RIGHT)
-
4900249002-1052 GUIDE, VALVEGUIDE, VALVE
-
9200192001-1872 BOLT, 6X46BOLT, 6X46
-
9200292002-1943 BOLT, 10X164BOLT, 10X164
-
9200492004-1214 STUD, 8X25STUD, 8X25
-
9202292022-1591 WASHER, 10.5X20X1.6WASHER, 10.5X20X1.6
-
9203792037-1523 CLAMPCLAMP
-
92037A92037-1843 CLAMPCLAMP
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9206692066-0002 PLUG, PT1/2X12.5PLUG, PT1/2X12.5
