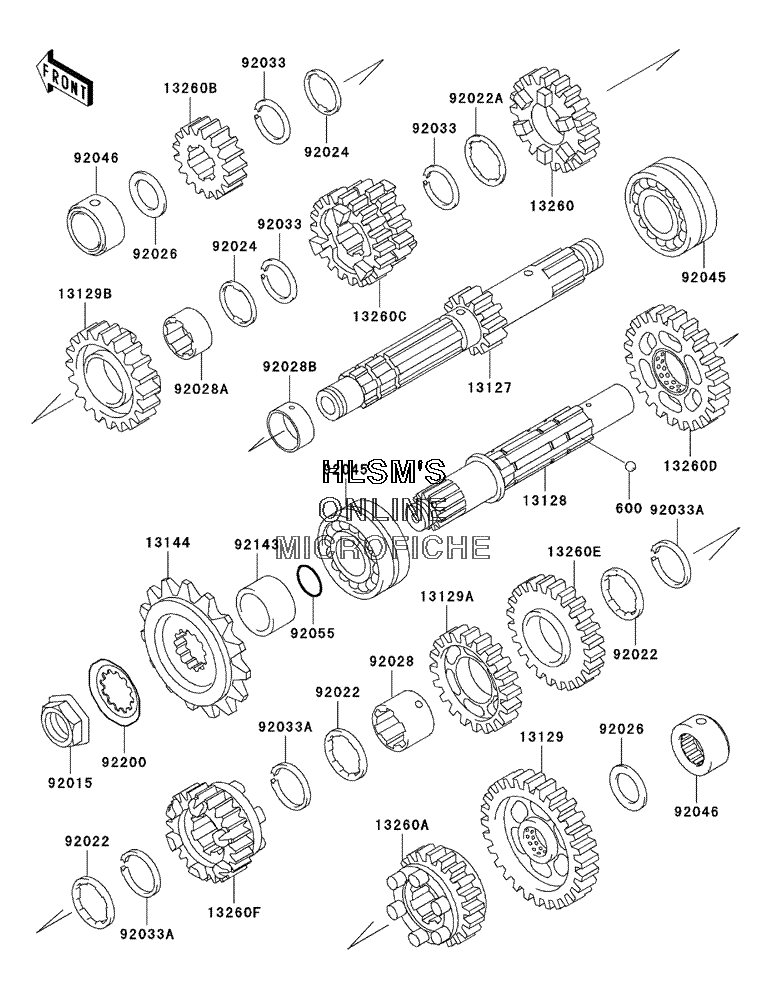

TRANSMISSION для Kawasaki Vulcan 500 LTD - 2005 года выпуска
-
№АртикулНазвание
-
600600A0500 BALL, STEEL, 5/32"BALL, STEEL, 5/32"
-
1312713127-1148 SHAFT, TRANSMISSION INPUT (14 TEETH)SHAFT, TRANSMISSION INPUT (14 TEETH)
-
1312813128-1212 SHAFT, TRANSMISSION OUTPUTSHAFT, TRANSMISSION OUTPUT
-
1312913129-1564 GEAR, OUTPUT LOW (36 TEETH)GEAR, OUTPUT LOW (36 TEETH)
-
13129A13129-1660 GEAR, OUTPUT 4TH (27 TEETH)GEAR, OUTPUT 4TH (27 TEETH)
-
13129B13129-1859 GEAR, INPUT TOP (27 TEETH)GEAR, INPUT TOP (27 TEETH)
-
1314413144-1272 SPROCKET, OUTPUT (16 TEETH)SPROCKET, OUTPUT (16 TEETH)
-
1326013260-1203 GEAR, INPUT 5TH (26 TEETH)GEAR, INPUT 5TH (26 TEETH)
-
13260A13260-1388 GEAR, OUTPUT 5TH (25 TEETH)GEAR, OUTPUT 5TH (25 TEETH)
-
13260B13260-1507 GEAR, INPUT 2ND (18 TEETH)GEAR, INPUT 2ND (18 TEETH)
-
13260C13260-1508 GEAR, INPUT 3RD AND 4TH (21 AND 24 TEETH)GEAR, INPUT 3RD AND 4TH (21 AND 24 TEETH)
-
13260D13260-1572 GEAR, OUTPUT 2ND (31 TEETH)GEAR, OUTPUT 2ND (31 TEETH)
-
13260E13260-1573 GEAR, OUTPUT 3RD (28 TEETH)GEAR, OUTPUT 3RD (28 TEETH)
-
13260F13260-1585 GEAR, OUTPUT TOP (23 TEETH)GEAR, OUTPUT TOP (23 TEETH)
-
9201592015-1963 NUT, 20MMNUT, 20MM
-
9202292022-1139 WASHER, TOOTHED, 28.3X33.5X1WASHER, TOOTHED, 28.3X33.5X1
-
92022A92022-1861 WASHER, TOOTHED, 25.3X31.8X1.6WASHER, TOOTHED, 25.3X31.8X1.6
-
9202492024-033 WASHER, TOOTHED, 25.5X32X1WASHER, TOOTHED, 25.5X32X1
-
9202692026-1022 SPACER, 20.3X30X2.0SPACER, 20.3X30X2.0
-
9202892028-1364 BUSHING, OUTPUT 3RD AND 4TH GEARBUSHING, OUTPUT 3RD AND 4TH GEAR
-
92028A92028-1552 BUSHING, INPUT TOP GEARBUSHING, INPUT TOP GEAR
-
92028B92028-1639 BUSHINGBUSHING
-
9203392033-026 RING, SNAP, 24MMRING, SNAP, 24MM
-
92033A92033-1037 RING, SNAP, T=1.2RING, SNAP, T=1.2
-
9204592045-035 BEARING, BALL, 83993SH2, CSBEARING, BALL, 83993SH2, CS
-
9204692046-1161 BEARING, NEEDLE, NKZ20X34X17BEARING, NEEDLE, NKZ20X34X17
-
9205592055-035 O-RINGO-RING
-
9214392143-1843 COLLAR, 25X40X12COLLAR, 25X40X12
-
9220092200-1065 WASHERWASHER
