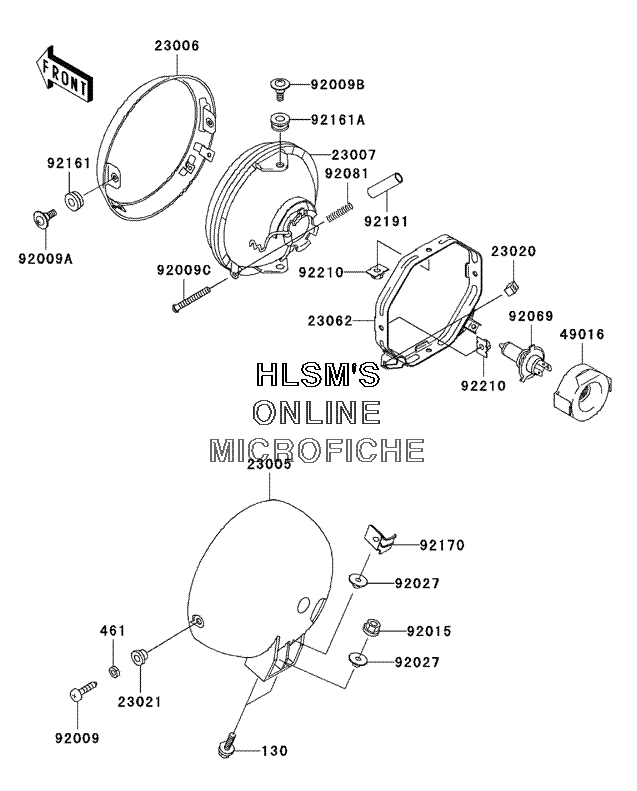

HEADLIGHT(S) для Kawasaki Vulcan 500 LTD - 2005 года выпуска
-
№АртикулНазвание
-
130130V0620 BOLT, FLANGEDBOLT, FLANGED
-
461461S0500 WASHER, SPRING, 5MMWASHER, SPRING, 5MM
-
2300523005-1149 BODY, COMP, HEAD LAMPBODY, COMP, HEAD LAMP
-
2300623006-1084 RIM, LAMPRIM, LAMP
-
2300723007-1401 LENS, COMP, HEAD LAMPLENS, COMP, HEAD LAMP
-
2302023020-018 NUT, 4MM, FOCUS ADJUSTNUT, 4MM, FOCUS ADJUST
-
2302123021-010 WASHERWASHER
-
2306223062-1134 BRACKET, COMPBRACKET, COMP
-
4901649016-1210 COVER, SEAL, HEAD LAMP SOCKETCOVER, SEAL, HEAD LAMP SOCKET
-
9200992009-1947 SCREW, 5MMSCREW, 5MM
-
92009A92009-1955 SCREW, 5MMSCREW, 5MM
-
92009B92009-1956 SCREW, 5MMSCREW, 5MM
-
92009C92009-1957 SCREW, 4X50SCREW, 4X50
-
9201592015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9202792027-252 COLLAR, L=6.5COLLAR, L=6.5
-
9206992069-1002 BULB, 12V 60/55W, H4BULB, 12V 60/55W, H4
-
9208192081-1701 SPRING, FOCUS ADJUSTINGSPRING, FOCUS ADJUSTING
-
9216192161-1187 DAMPERDAMPER
-
92161A92161-1188 DAMPERDAMPER
-
9217092170-1624 CLAMP, HARNESSCLAMP, HARNESS
-
9219192191-1217 TUBE, 3.5X5.5X19TUBE, 3.5X5.5X19
-
9221092210-1060 NUT, SPECIAL, 5MMNUT, SPECIAL, 5MM
Все узлы модели:
- AIR CLEANER
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER - FRONT
- BRAKE PEDAL W/ TORQUE LINK
- BREATHER COVER W/ OIL PAN
- CABLES
- CAMSHAFT(S) W/ TENSIONER
- CARBURETOR
- CARBURETOR PARTS
- CHAIN KIT
- CHASSIS ELECTRICAL EQUIPMENT
- CLUTCH
- CRANKCASE
- CRANKCASE BOLT PATTERN
- CRANKSHAFT
- CYLINDER HEAD
- CYLINDER HEAD COVER
- CYLINDER/PISTON(S)
- DECALS
- ENGINE COVER
- ENGINE MOUNT
- FENDER(S)
- FOOTRESTS
- FRAME
- FRAME FITTINGS
- FRONT FORK
- FUEL EVAPORATIVE SYSTEM (CALIF ONLY)
- FUEL TANK
- GEAR CHANGE DRUM W/ SHIFT FORK(S)
- GEAR CHANGE MECHANISM
- GENERATOR
- HANDLEBAR
- • HEADLIGHT(S)
- IGNITION SWITCH W/ LOCKS AND REFLECTORS
- IGNITION SYSTEM
- LABELS
- METER(S)
- MUFFLER(S)
- OIL PUMP/OIL FILTER
- OWNERS TOOLS
- RADIATOR
- SEAT
- SIDE COVERS W/ CHAIN COVER
- STAND(S)
- STARTER MOTOR
- SUSPENSION - SHOCK ABSORBER
- SUSPENSION - SWINGARM
- TAILLIGHT(S)
- TIRES
- TRANSMISSION
- TURN SIGNALS
- VALVE(S)
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR W/ CHAIN
