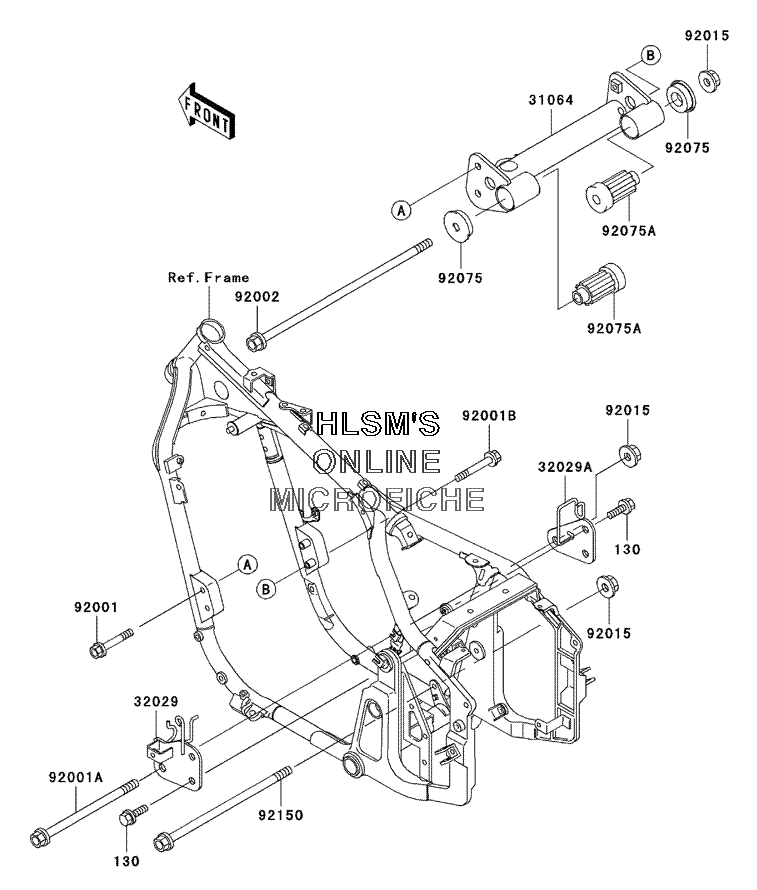

ENGINE MOUNT для Kawasaki Vulcan 800 Drifter - 2005 года выпуска
-
№АртикулНазвание
-
130130J0816 BOLT, FLANGED, 8X16 (BLACK)BOLT, FLANGED, 8X16 (BLACK)
-
3106431064-1175 PIPE, COMP, ENGINE MOUNT, FRONTPIPE, COMP, ENGINE MOUNT, FRONT
-
3202932029-1947 BRACKET, ENGINE, REAR, UPPER (LEFT)BRACKET, ENGINE, REAR, UPPER (LEFT)
-
32029A32029-1948 BRACKET, ENGINE, REAR, UPPER (RIGHT)BRACKET, ENGINE, REAR, UPPER (RIGHT)
-
9200192001-1614 BOLT, FLANGED, 8X50BOLT, FLANGED, 8X50
-
92001A92001-1620 BOLT, FLANGED, 10X155 (BLACK)BOLT, FLANGED, 10X155 (BLACK)
-
92001B92001-1641 BOLT, FLANGED, 8X55 (BLACK)BOLT, FLANGED, 8X55 (BLACK)
-
9200292002-1206 BOLT, FLANGED, 10X285BOLT, FLANGED, 10X285
-
9201592015-1180 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
9207592075-1738 DAMPER, ENGINE MOUNTDAMPER, ENGINE MOUNT
-
92075A92075-1739 DAMPER, ENGINE MOUNT, MAINDAMPER, ENGINE MOUNT, MAIN
-
9215092150-1899 BOLT, FLANGED, 10X205BOLT, FLANGED, 10X205
