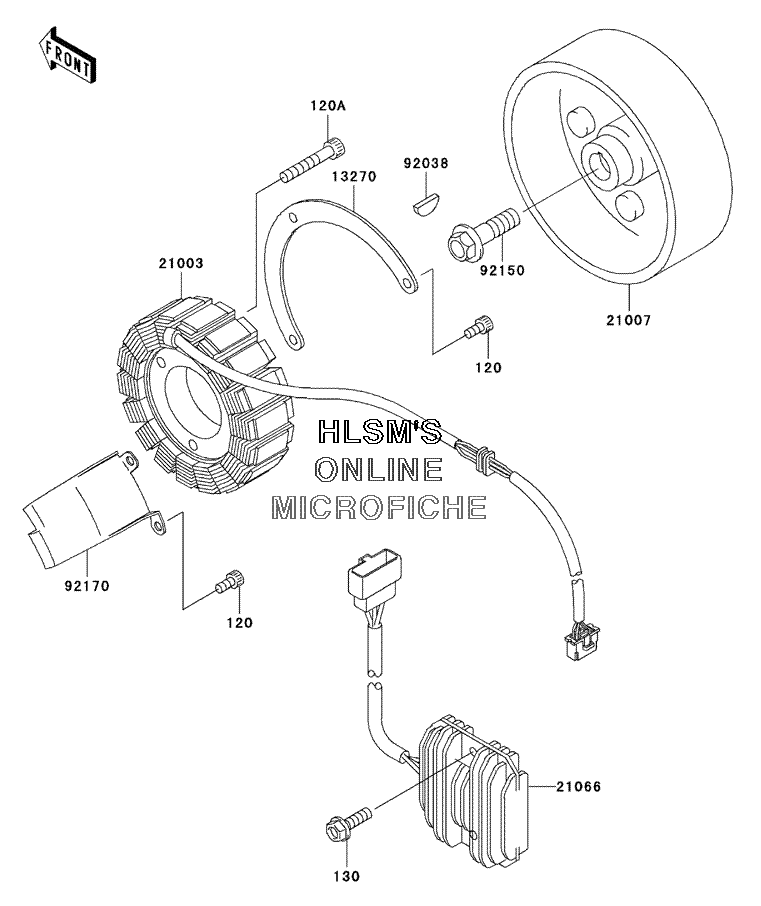

GENERATOR для Kawasaki Vulcan 800 Drifter - 2005 года выпуска
-
№АртикулНазвание
-
120120P0510 BOLT, SOCKETBOLT, SOCKET
-
120A120P0635 BOLT, SOCKET, 6X35BOLT, SOCKET, 6X35
-
130130J0620 BOLT, FLANGEDBOLT, FLANGED
-
1327013270-1398 PLATEPLATE
-
2100321003-1383 STATORSTATOR
-
2100721007-1279 ROTOR, GENERATORROTOR, GENERATOR
-
2106621066-1099 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
9203892038-001 KEY, WOODRUFFKEY, WOODRUFF
-
9215092150-1717 BOLT, 12X40BOLT, 12X40
-
9217092170-1559 CLAMPCLAMP
