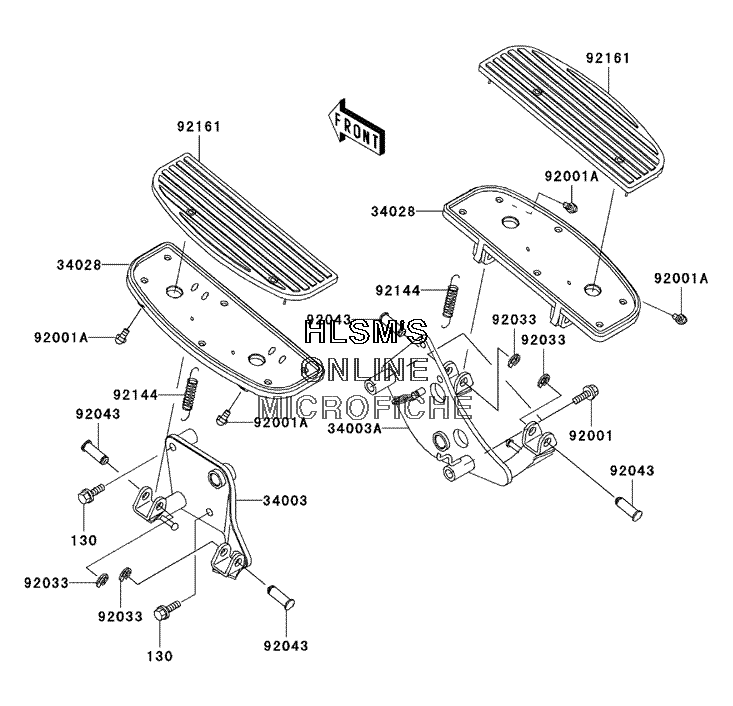

FOOTRESTS для Kawasaki Vulcan 800 Drifter - 2005 года выпуска
-
№АртикулНазвание
-
130130J1055 BOLT, FLANGED, 10X55BOLT, FLANGED, 10X55
-
3400334003-1487 HOLDER, STEP, FRONT (LEFT)HOLDER, STEP, FRONT (LEFT)
-
34003A34003-1488 HOLDER, STEP, FRONT (RIGHT)HOLDER, STEP, FRONT (RIGHT)
-
3402834028-1497 STEP, FRONTSTEP, FRONT
-
9200192001-1617 BOLT, FLANGED, 10X60BOLT, FLANGED, 10X60
-
92001A92001-1905 BOLT, BANK SENSORBOLT, BANK SENSOR
-
9203392033-1166 RING, SNAP, 10MMRING, SNAP, 10MM
-
9204392043-1358 PIN, 12X37PIN, 12X37
-
9214492144-1266 SPRING, BRAKE PEDAL RETURNSPRING, BRAKE PEDAL RETURN
-
9216192161-1154 DAMPER, FRONT STEPDAMPER, FRONT STEP
Все узлы модели:
- AIR CLEANER
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER - FRONT
- BRAKE - MASTER CYLINDER - REAR
- BRAKE - REAR
- BRAKE PEDAL W/ TORQUE LINK
- CABLES
- CAMSHAFT(S) W/ TENSIONER
- CARBURETOR
- CHASSIS ELECTRICAL EQUIPMENT
- CLUTCH
- CRANKCASE
- CRANKCASE BOLT PATTERN
- CRANKSHAFT
- CYLINDER HEAD
- CYLINDER HEAD COVER
- CYLINDER/PISTON(S)
- DECALS (SILVER/EBONY)
- ENGINE COVER(S) - LEFT
- ENGINE COVER(S) - RIGHT
- ENGINE MOUNT
- FENDER(S)
- • FOOTRESTS
- FRAME
- FRAME FITTINGS
- FRONT FORK
- FUEL EVAPORATIVE SYSTEM (CALIF ONLY)
- FUEL TANK
- GEAR CHANGE DRUM W/ SHIFT FORK(S)
- GEAR CHANGE MECHANISM
- GENERATOR
- HANDLEBAR
- HEADLIGHT(S)
- IGNITION SWITCH W/ LOCKS AND REFLECTORS
- IGNITION SYSTEM
- LABELS
- METER(S)
- MUFFLER(S)
- OIL PUMP/OIL FILTER
- OWNERS TOOLS
- RADIATOR
- SEAT A
- SEAT B
- SIDE COVERS W/ CHAIN COVER
- STAND(S)
- STARTER MOTOR
- SUSPENSION - REAR W/ SHOCK ABSORBER
- SUSPENSION - SWINGARM
- TAILLIGHT(S)
- TIRES
- TRANSMISSION
- TURN SIGNALS
- VALVE(S)
- WHEEL - FRONT
- WHEEL - REAR W/ CHAIN
