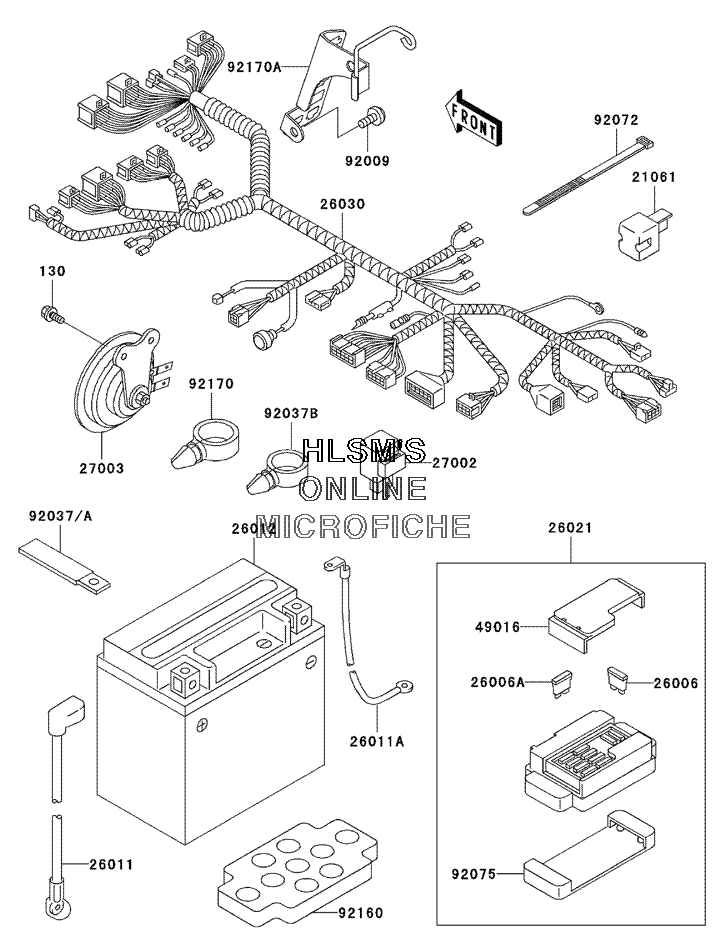

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki Vulcan 800 - 2005 года выпуска
-
№АртикулНазвание
-
130130J0612 BOLT, FLANGEDBOLT, FLANGED
-
2106121061-1003 RECTIFIERRECTIFIER
-
2600626006-1067 FUSE, 30A, GFUSE, 30A, G
-
26006A26006-1068 FUSE, 10A, RFUSE, 10A, R
-
2601126011-1621 WIRE, LEAD, BATTERY (+)WIRE, LEAD, BATTERY (+)
-
26011A26011-1633 WIRE, LEAD, BATTERY (-)WIRE, LEAD, BATTERY (-)
-
2601226012-0049 BATTERY, YTX12, BS, 12V 10AHBATTERY, YTX12, BS, 12V 10AH
-
2602126021-1089 JUNCTION BOXJUNCTION BOX
-
2603026030-1795 HARNESS, MAINHARNESS, MAIN
-
2700227002-1101 RELAY, ASSY, TURN SIGNALRELAY, ASSY, TURN SIGNAL
-
2700327003-1239 HORN, 350HZ (LEFT)HORN, 350HZ (LEFT)
-
4901649016-1177 COVER, SEAL, FUSECOVER, SEAL, FUSE
-
9200992009-1662 SCREW, 6X14SCREW, 6X14
-
9203792037-1069 CLAMP, L=60CLAMP, L=60
-
92037A92037-1539 CLAMP, L=45CLAMP, L=45
-
92037B92037-1827 CLAMP, HOSECLAMP, HOSE
-
9207292072-1197 BAND, L=365BAND, L=365
-
9207592075-1688 DAMPER, JUNCTION BOXDAMPER, JUNCTION BOX
-
9216092160-1635 DAMPER, BATTERYDAMPER, BATTERY
-
9217092170-1067 CLAMPCLAMP
-
92170A92170-1570 CLAMP, HARNESSCLAMP, HARNESS
