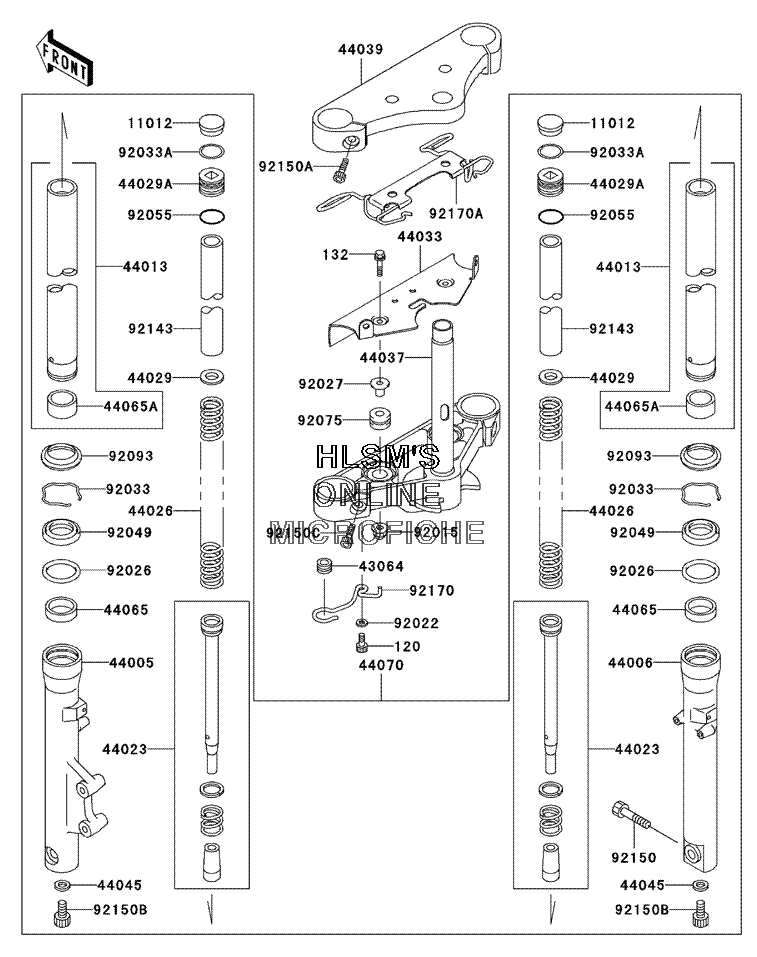

FRONT FORK для Kawasaki Vulcan 800 - 2005 года выпуска
-
№АртикулНазвание
-
120120P0614 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
132132E0625 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
1101211012-1618 CAP, FORK TOPCAP, FORK TOP
-
4306443064-006 GROMMET, HOSE CLAMPGROMMET, HOSE CLAMP
-
4400544005-1357 PIPE, LEFT FORK OUTERPIPE, LEFT FORK OUTER
-
4400644006-1356 PIPE, RIGHT FORK OUTERPIPE, RIGHT FORK OUTER
-
4401344013-1412 PIPE, FORK INNERPIPE, FORK INNER
-
4402344023-1097 CYLINDER, COMP, FORKCYLINDER, COMP, FORK
-
4402644026-1589 SPRING, FRONT FORKSPRING, FRONT FORK
-
4402944029-1131 SEAT, FORK SPRINGSEAT, FORK SPRING
-
44029A44029-1144 SEAT, FORK SPRINGSEAT, FORK SPRING
-
4403344033-1211 COVER, FORKCOVER, FORK
-
4403744037-1334 HOLDER, FORK UNDERHOLDER, FORK UNDER
-
4403944039-1260 HOLDER, FORK UPPERHOLDER, FORK UPPER
-
4404544045-051 GASKET, FORK CYLINDER BOLTGASKET, FORK CYLINDER BOLT
-
4406544065-1079 BUSHING, FRONT FORKBUSHING, FRONT FORK
-
44065A44065-1087 BUSHING, FRONT FORK, INNER PIPEBUSHING, FRONT FORK, INNER PIPE
-
4407044070-1429 DAMPER, ASSY, FORKDAMPER, ASSY, FORK
-
9201592015-1385 NUT, CAP, 6MMNUT, CAP, 6MM
-
9202292022-1523 WASHER, 6.5X13X2.0WASHER, 6.5X13X2.0
-
9202692026-1276 SPACER, FORK OUTERSPACER, FORK OUTER
-
9202792027-1847 COLLAR, L=16.1COLLAR, L=16.1
-
9203392033-1222 RING, SNAPRING, SNAP
-
92033A92033-1223 RING, SNAP, SPRING SEATRING, SNAP, SPRING SEAT
-
9204992049-1363 SEAL, OIL, FORKSEAL, OIL, FORK
-
9205592055-1481 O-RINGO-RING
-
9207592075-1035 DAMPERDAMPER
-
9209392093-1268 SEAL, FORKSEAL, FORK
-
9214392143-1792 COLLAR, FORK, L=100COLLAR, FORK, L=100
-
9215092150-1029 BOLT, SOCKET, 10X40BOLT, SOCKET, 10X40
-
92150A92150-1031 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
-
92150B92150-1432 BOLT, SOCKET, 8X18BOLT, SOCKET, 8X18
-
92150C92150-1960 BOLTBOLT
-
9217092170-1545 CLAMP, HOSECLAMP, HOSE
-
92170A92170-1546 CLAMPCLAMP
