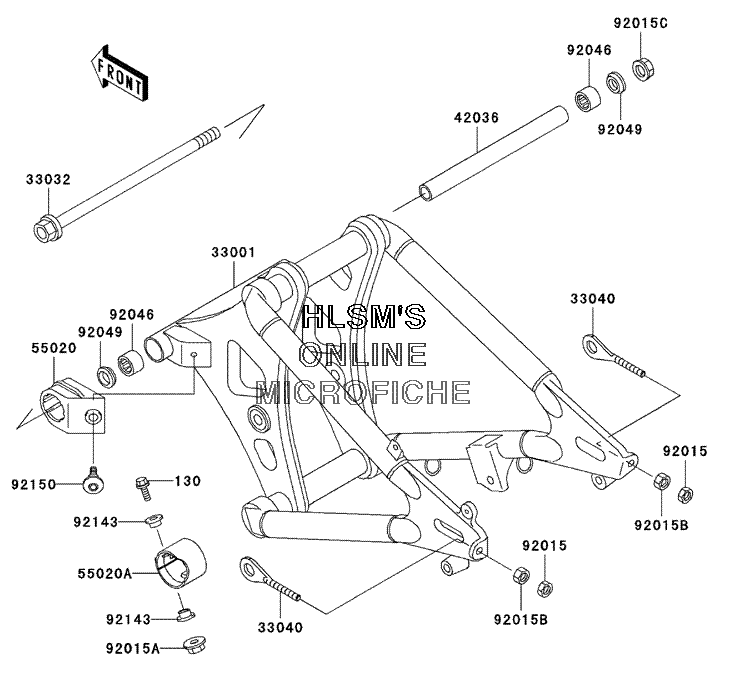

SUSPENSION - SWINGARM для Kawasaki Vulcan 800 - 2005 года выпуска
-
№АртикулНазвание
-
130130J0625 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
3300133001-1509 ARM, COMP, SWINGARM, COMP, SWING
-
3303233032-1177 SHAFT, SWING ARMSHAFT, SWING ARM
-
3304033040-1146 ADJUSTER, CHAINADJUSTER, CHAIN
-
4203642036-1324 SLEEVE, SWING ARM, L=243SLEEVE, SWING ARM, L=243
-
5502055020-1530 GUARD, CHAIN PIVOTGUARD, CHAIN PIVOT
-
55020A55020-1531 GUARD, CHAIN CLOSSGUARD, CHAIN CLOSS
-
9201592015-1364 NUT, 8MMNUT, 8MM
-
92015A92015-1603 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
92015B92015-1658 NUT, 8MMNUT, 8MM
-
92015C92015-1946 NUT, FLANGED, 16MMNUT, FLANGED, 16MM
-
9204692046-1174 BEARING, NEEDLE, TA2230ZBEARING, NEEDLE, TA2230Z
-
9204992049-1289 SEAL, OIL, MHA22X29X5.7FSEAL, OIL, MHA22X29X5.7F
-
9214392143-1088 COLLAR, L=6.6COLLAR, L=6.6
-
9215092150-1154 BOLT, SOCKET, 6MMBOLT, SOCKET, 6MM
