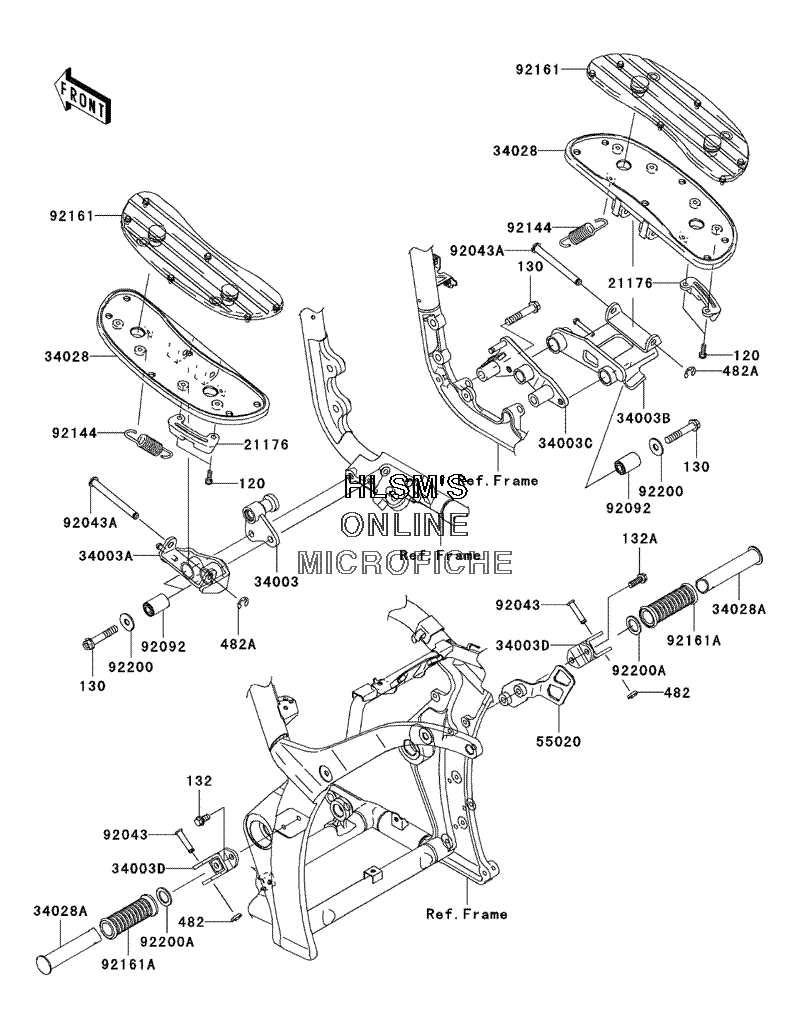

FOOTRESTS для Kawasaki Vulcan 2000 Limited - 2006 года выпуска
-
№АртикулНазвание
-
120120S0616 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
130130L1055 BOLT, FLANGED, 10X55BOLT, FLANGED, 10X55
-
132132L0816 BOLT, FLANGED, SMALL, 8X16BOLT, FLANGED, SMALL, 8X16
-
132A132L0830 BOLT, FLANGED, SMALL, 8X30BOLT, FLANGED, SMALL, 8X30
-
482482L7000 CIRCLIP, TYPE, ECIRCLIP, TYPE, E
-
482A482L8000 CIRCLIP, TYPE, E, 8MMCIRCLIP, TYPE, E, 8MM
-
2117621176-0021 SENSOR, BANKSENSOR, BANK
-
3400334003-0020 HOLDER, STEP, FRONT (LEFT)HOLDER, STEP, FRONT (LEFT)
-
34003A34003-0026 HOLDER, STEP, FRONT (LEFT)HOLDER, STEP, FRONT (LEFT)
-
34003B34003-0029 HOLDER, STEP, FRONT (RIGHT)HOLDER, STEP, FRONT (RIGHT)
-
34003C34003-0031 HOLDER, STEP, FRONT (RIGHT)HOLDER, STEP, FRONT (RIGHT)
-
34003D34003-0043-458 HOLDER, STEP, REAR (P.SILVER)HOLDER, STEP, REAR (P.SILVER)
-
3402834028-0011 STEP, FRONTSTEP, FRONT
-
34028A34028-0017 STEP, REARSTEP, REAR
-
5502055020-0219-458 GUARD, MUFFLER (P.SILVER)GUARD, MUFFLER (P.SILVER)
-
9204392043-1339 PIN, 8X36.5PIN, 8X36.5
-
92043A92043-1707 PIN, 10X98.5PIN, 10X98.5
-
9209292092-0005 BUSHING, RUBBERBUSHING, RUBBER
-
9214492144-1266 SPRINGSPRING
-
9216192161-0126 DAMPER, FOOT BOARDDAMPER, FOOT BOARD
-
92161A92161-0232 DAMPER, STEPDAMPER, STEP
-
9220092200-0113 WASHER, 10.3X28X2.3WASHER, 10.3X28X2.3
-
92200A92200-1482 WASHER, 22.5X33X2.3WASHER, 22.5X33X2.3
