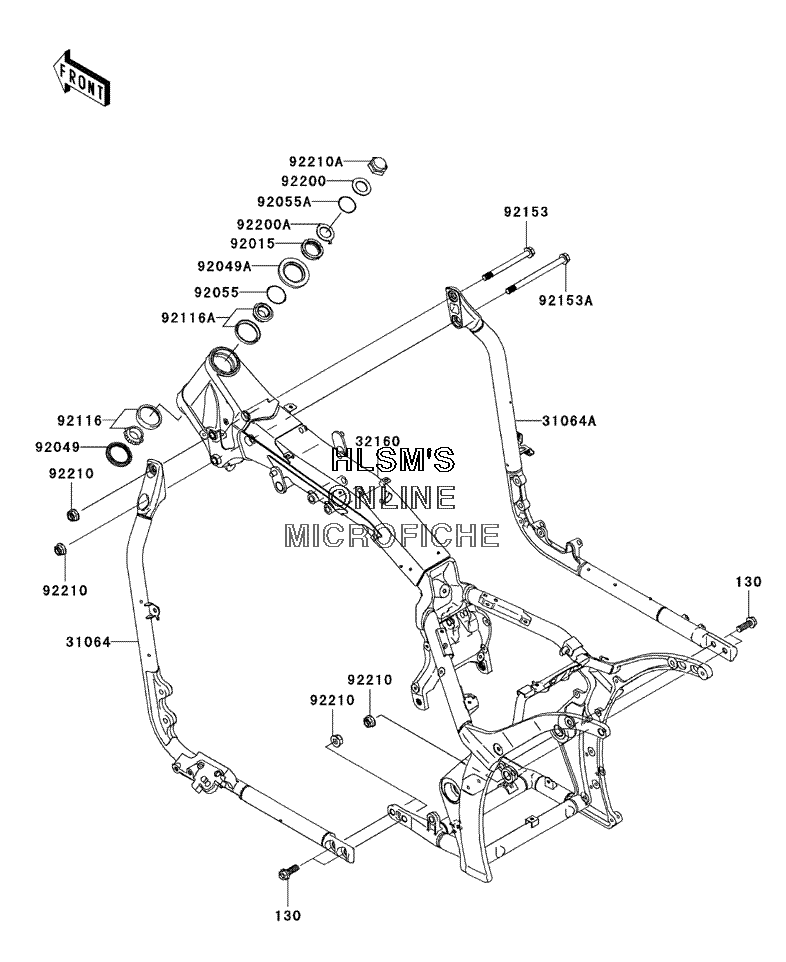

FRAME для Kawasaki Vulcan 2000 Limited - 2006 года выпуска
-
№АртикулНазвание
-
130130W1235 BOLT, FLANGED, 12X35BOLT, FLANGED, 12X35
-
3106431064-0050-458 PIPE, COMP, DOWNTUBE (LEFT) (P.SILVER)PIPE, COMP, DOWNTUBE (LEFT) (P.SILVER)
-
31064A31064-0051-458 PIPE, COMP, DOWNTUBE (RIGHT) (P.SILVER)PIPE, COMP, DOWNTUBE (RIGHT) (P.SILVER)
-
3216032160-0166-458 FRAME, COMP (P.SILVER)FRAME, COMP (P.SILVER)
-
9201592015-1848 NUT, STEERING STEM, 35MMNUT, STEERING STEM, 35MM
-
9204992049-1383 SEAL, OIL, XMHE 43 55 4JSEAL, OIL, XMHE 43 55 4J
-
92049A92049-1483 SEAL, OIL, MX043N2SEAL, OIL, MX043N2
-
9205592055-1452 O-RING, 34.5X2.0O-RING, 34.5X2.0
-
92055A92055-1459 O-RING, ID=24.5O-RING, ID=24.5
-
9211692116-1072 BEARING, ROLLER, 32907JR, 2BEARING, ROLLER, 32907JR, 2
-
92116A92116-1074 BEARING, ROLLER, 32907JR, 3BEARING, ROLLER, 32907JR, 3
-
9215392153-0598 BOLT, FLANGED, 12X132BOLT, FLANGED, 12X132
-
92153A92153-0599 BOLT, FLANGED, 12X168BOLT, FLANGED, 12X168
-
9220092200-0105 WASHER, 25.5X42X2.3WASHER, 25.5X42X2.3
-
92200A92200-0137 WASHER, CLAW, 25.5X40X2.3WASHER, CLAW, 25.5X40X2.3
-
9221092210-0110 NUT, LOCK, FLANGED, 12MMNUT, LOCK, FLANGED, 12MM
-
92210A92210-1166 NUT, CAP, 25MMNUT, CAP, 25MM
