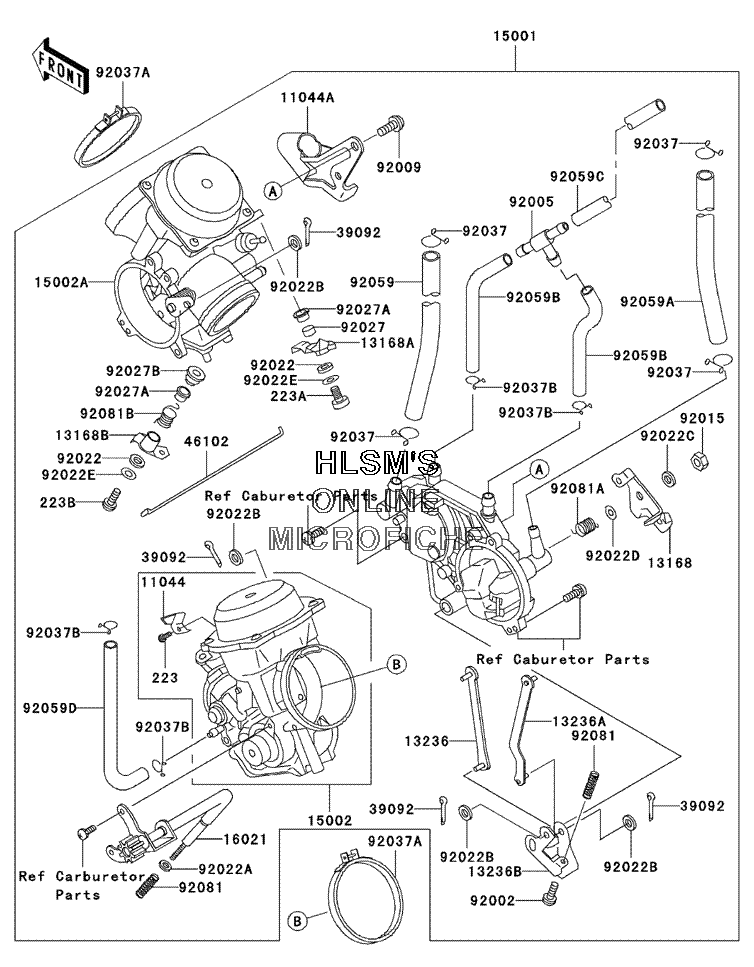

CARBURETOR для Kawasaki Vulcan 750 - 2006 года выпуска
-
№АртикулНазвание
-
1104411044-1152 BRACKETBRACKET
-
11044A11044-1351 BRACKET, THROTTLE CABLEBRACKET, THROTTLE CABLE
-
1316813168-1262 LEVER, THROTTLELEVER, THROTTLE
-
13168A13168-1275 LEVER, PLUNGER, FRONTLEVER, PLUNGER, FRONT
-
13168B13168-1276 LEVER, PLUNGER, REARLEVER, PLUNGER, REAR
-
1323613236-1130 LEVER, COMP, FRONTLEVER, COMP, FRONT
-
13236A13236-1131 LEVER, COMP, REARLEVER, COMP, REAR
-
13236B13236-1132 LEVER, COMP, THROTTLELEVER, COMP, THROTTLE
-
1500115001-1306 CARBURETOR, ASSYCARBURETOR, ASSY
-
1500215002-1394 CARBURETOR, FRONTCARBURETOR, FRONT
-
15002A15002-1395 CARBURETOR, REARCARBURETOR, REAR
-
1602116021-1112 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
3909239092-1051 PIN, HAIRPIN, HAIR
-
4610246102-1141 ROD, STARTERROD, STARTER
-
9200292002-1556 BOLT, THROTTLE ADJUSTBOLT, THROTTLE ADJUST
-
9200592005-1135 FITTING, T, TYPEFITTING, T, TYPE
-
9200992009-1365 SCREW, 5X10SCREW, 5X10
-
9201592015-1526 NUT, LOCKNUT, LOCK
-
9202292022-1199 WASHER, 6.1X11X0.8, POLYACETALWASHER, 6.1X11X0.8, POLYACETAL
-
92022A92022-1480 WASHER, PLAIN, STOP SPRINGWASHER, PLAIN, STOP SPRING
-
92022B92022-1676 WASHER, 3.1X8X0.5, POLYACETALWASHER, 3.1X8X0.5, POLYACETAL
-
92022C92022-1708 WASHER, SPRINGWASHER, SPRING
-
92022D92022-1709 WASHER, 8X16X1.1WASHER, 8X16X1.1
-
92022E92022-1721 WASHER, 4X10X1.5WASHER, 4X10X1.5
-
9202792027-1917 COLLARCOLLAR
-
92027A92027-1918 COLLARCOLLAR
-
92027B92027-1919 COLLARCOLLAR
-
9203792037-1158 CLAMP, FUEL HOSECLAMP, FUEL HOSE
-
92037A92037-1637 CLAMPCLAMP
-
92037B92037-1682 CLAMP, TUBECLAMP, TUBE
-
9205992059-1029 TUBE, FUEL, 7.3X12.5X200TUBE, FUEL, 7.3X12.5X200
-
92059A92059-1492 TUBE, 7.3X12.5X260TUBE, 7.3X12.5X260
-
92059B92059-1612 TUBE, 7X11X55TUBE, 7X11X55
-
92059C92059-1613 TUBE, 7X11X260TUBE, 7X11X260
-
92059D92059-1623 TUBE, 5.3X10.5X100TUBE, 5.3X10.5X100
-
9208192081-1617 SPRING, THROTTLE STOP SCREWSPRING, THROTTLE STOP SCREW
-
92081A92081-1841 SPRING, THROTTLE LEVERSPRING, THROTTLE LEVER
-
92081B92081-1842 SPRING, PLUNGER LEVERSPRING, PLUNGER LEVER
-
223223D0408 SCREW, PAN, WS, CROS, 4X8SCREW, PAN, WS, CROS, 4X8
-
223A223D0414 SCREW, PAN, WS, CROS, 4X14SCREW, PAN, WS, CROS, 4X14
-
223B223D0420 SCREW, PAN, WS, CROS, 4X20SCREW, PAN, WS, CROS, 4X20
