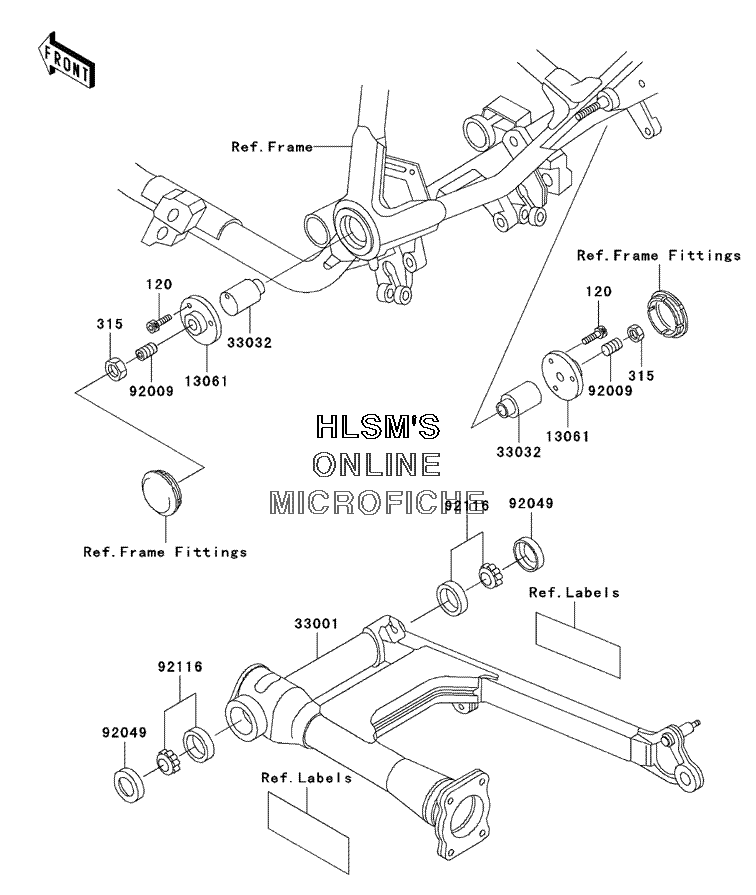

SUSPENSION - SWINGARM для Kawasaki Vulcan 750 - 2006 года выпуска
-
№АртикулНазвание
-
120120P0616 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
315315B1200 NUT, HEX, FINENUT, HEX, FINE
-
1306113061-1149 BOSSBOSS
-
3300133001-1234 ARM, COMP, SWINGARM, COMP, SWING
-
3303233032-1043 SHAFT, SWING ARMSHAFT, SWING ARM
-
9200992009-1374 SCREW, SOCKET, 12X22SCREW, SOCKET, 12X22
-
9204992049-1030 SEAL, OIL, 26406SEAL, OIL, 26406
-
9211692116-1001 BEARING, ROLLER, 4T30203E1BEARING, ROLLER, 4T30203E1
