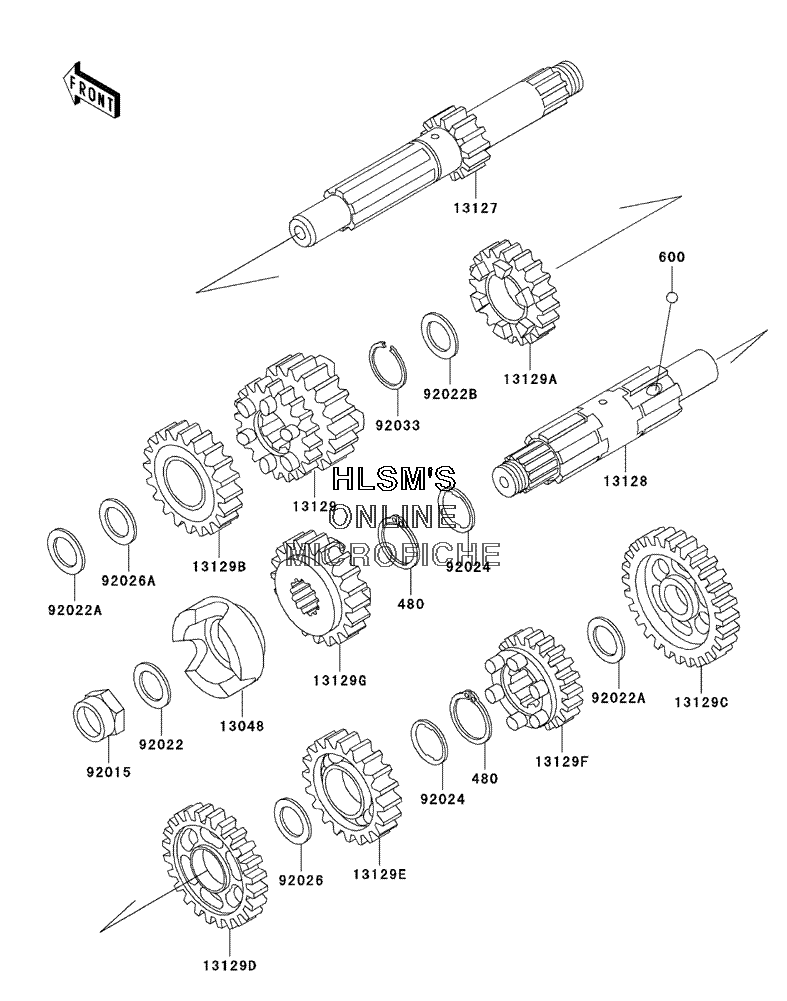

TRANSMISSION для Kawasaki Vulcan 750 - 2006 года выпуска
-
№АртикулНазвание
-
480480J3000 CIRCLIP, TYPE, C, 30MMCIRCLIP, TYPE, C, 30MM
-
600600A0500 BALL, STEEL, 5/32"BALL, STEEL, 5/32"
-
1304813048-1014 CAM, DAMPER, OUTPUT SHAFTCAM, DAMPER, OUTPUT SHAFT
-
1312713127-1240 SHAFT, TRANSMISSION INPUTSHAFT, TRANSMISSION INPUT
-
1312813128-1114 SHAFT, TRANSMISSION OUTPUTSHAFT, TRANSMISSION OUTPUT
-
1312913129-1630 GEAR, INPUT 2ND AND 3RD (20/26 TEETH)GEAR, INPUT 2ND AND 3RD (20/26 TEETH)
-
13129A13129-1631 GEAR, INPUT 4TH (26 TEETH)GEAR, INPUT 4TH (26 TEETH)
-
13129B13129-1632 GEAR, INPUT 5TH (28 TEETH)GEAR, INPUT 5TH (28 TEETH)
-
13129C13129-1633 GEAR, OUTPUT LOW (36 TEETH)GEAR, OUTPUT LOW (36 TEETH)
-
13129D13129-1634 GEAR, OUTPUT 2ND (32 TEETH)GEAR, OUTPUT 2ND (32 TEETH)
-
13129E13129-1635 GEAR, OUTPUT 3RD (32 TEETH)GEAR, OUTPUT 3RD (32 TEETH)
-
13129F13129-1636 GEAR, OUTPUT 4TH (26 TEETH)GEAR, OUTPUT 4TH (26 TEETH)
-
13129G13129-1637 GEAR, OUTPUT 5TH (24 TEETH)GEAR, OUTPUT 5TH (24 TEETH)
-
9201592015-1067 NUT, LOCK, 14MMNUT, LOCK, 14MM
-
9202292022-1115 WASHER, 14.1X31X5WASHER, 14.1X31X5
-
92022A92022-112 WASHER, 20.5X30X1, STEELWASHER, 20.5X30X1, STEEL
-
92022B92022-161 WASHER, 25.3X30X1WASHER, 25.3X30X1
-
9202492024-069 WASHER, TOOTHED, 30.5X38X1WASHER, TOOTHED, 30.5X38X1
-
9202692026-079 SPACER, 30X38X1.0SPACER, 30X38X1.0
-
92026A92026-1535 SPACER, 20.5X30X0.5SPACER, 20.5X30X0.5
-
9203392033-026 RING, SNAP, 24MMRING, SNAP, 24MM
