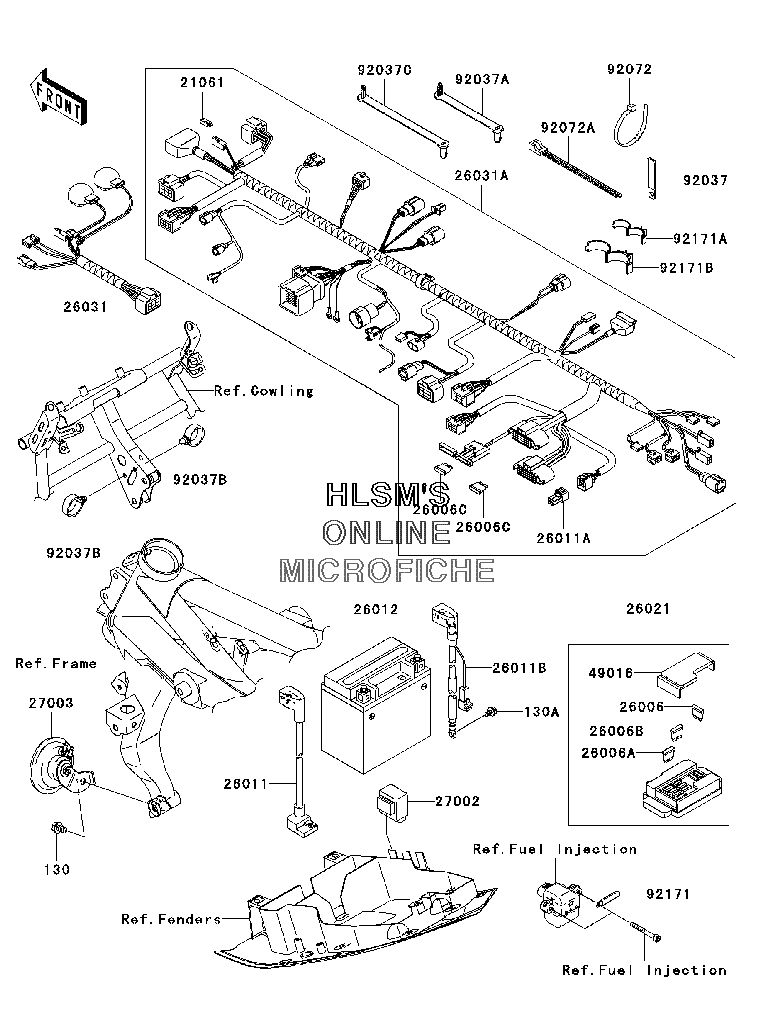

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki Z750S - 2006 года выпуска
-
№АртикулНазвание
-
130130L0812 BOLT, FLANGED, 8X12BOLT, FLANGED, 8X12
-
130A130V0610 BOLT, FLANGED, 6X10BOLT, FLANGED, 6X10
-
2106121061-0001 RECTIFIERRECTIFIER
-
2600626006-1067 FUSE, 30A, GFUSE, 30A, G
-
26006A26006-1068 FUSE, 10A, RFUSE, 10A, R
-
26006B26006-1069 FUSE, 15A, BFUSE, 15A, B
-
26006C26006-1075 FUSE, 15AFUSE, 15A
-
2601126011-0006 WIRE, LEAD, BATTERY (+)WIRE, LEAD, BATTERY (+)
-
26011A26011-0037 WIRE, LEADWIRE, LEAD
-
26011B26011-0041 WIRE, LEAD, BATTERY (-)WIRE, LEAD, BATTERY (-)
-
2601226012-1326 BATTERY, YTX9, BS, 12V 8AHBATTERY, YTX9, BS, 12V 8AH
-
2602126021-0003 JUNCTION BOXJUNCTION BOX
-
2603126031-0256 HARNESS, FRONTHARNESS, FRONT
-
26031A26031-0268 HARNESS, MAINHARNESS, MAIN
-
2700227002-1097 RELAY, ASSY, SIGNAL LAMPRELAY, ASSY, SIGNAL LAMP
-
2700327003-0032 HORNHORN
-
4901649016-0005 COVER, SEAL, FUSECOVER, SEAL, FUSE
-
9203792037-1069 CLAMP, L=60CLAMP, L=60
-
92037A92037-1163 CLAMP, SPEED, L=58CLAMP, SPEED, L=58
-
92037B92037-1827 CLAMP, HOSECLAMP, HOSE
-
92037C92037-1903 CLAMP, SPEED, L=80.5CLAMP, SPEED, L=80.5
-
9207292072-1195 BAND, L=202BAND, L=202
-
92072A92072-1237 BAND, L=250BAND, L=250
-
9217192171-0181 CLAMPCLAMP
-
92171A92171-1424 CLAMP, DIA=15CLAMP, DIA=15
-
92171B92171-1559 CLAMP, DIA=25CLAMP, DIA=25
