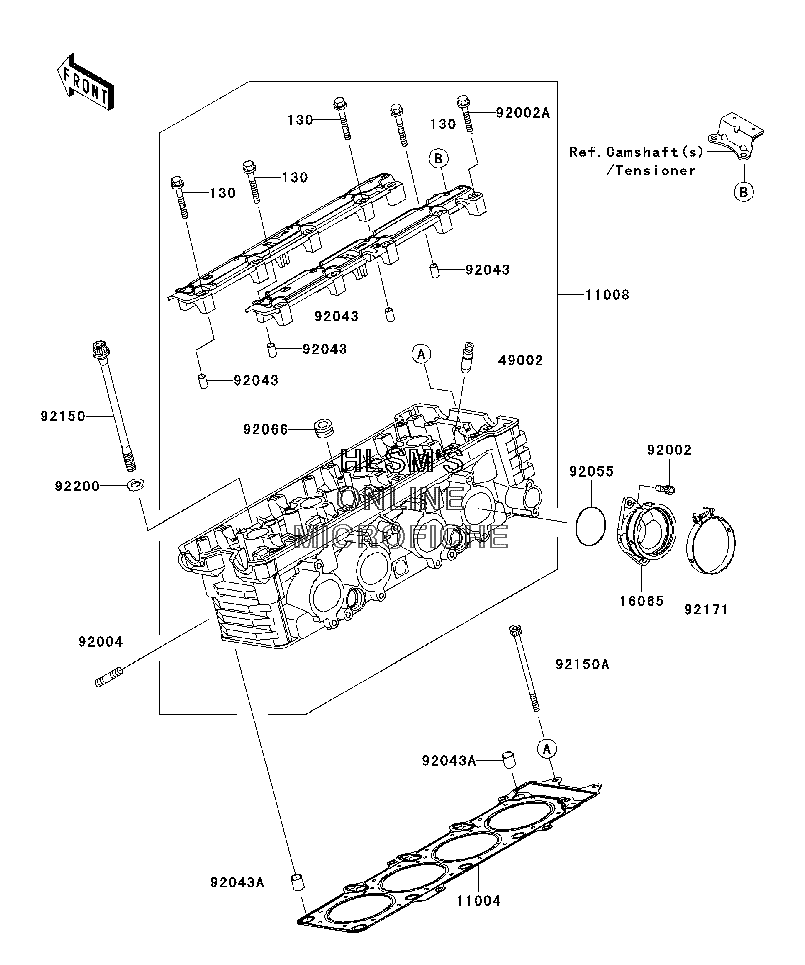

CYLINDER HEAD для Kawasaki Z750S - 2006 года выпуска
-
№АртикулНазвание
-
130130P0645 BOLT, FLANGED, 6X45BOLT, FLANGED, 6X45
-
1100411004-0006 GASKET, HEADGASKET, HEAD
-
1100811008-0013 HEAD, COMP, CYLINDERHEAD, COMP, CYLINDER
-
1606516065-0008 HOLDER, THROTTLEHOLDER, THROTTLE
-
4900249002-1116 GUIDE, VALVEGUIDE, VALVE
-
9200292002-1143 BOLT, 6X16BOLT, 6X16
-
92002A92002-1756 BOLT, 6X40BOLT, 6X40
-
9200492004-1249 STUD, 8X22STUD, 8X22
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
92043A92043-4009 PIN, 10.1X12X14PIN, 10.1X12X14
-
9205592055-1401 O-RING, 43.7X1.9O-RING, 43.7X1.9
-
9206692066-0002 PLUG, PT1/2X12.5PLUG, PT1/2X12.5
-
9215092150-1368 BOLT, 10X165BOLT, 10X165
-
92150A92150-1755 BOLT, SOCKET, 6X110BOLT, SOCKET, 6X110
-
9217192171-1552 CLAMPCLAMP
-
9220092200-1042 WASHER, 10.5X19X2.3WASHER, 10.5X19X2.3
