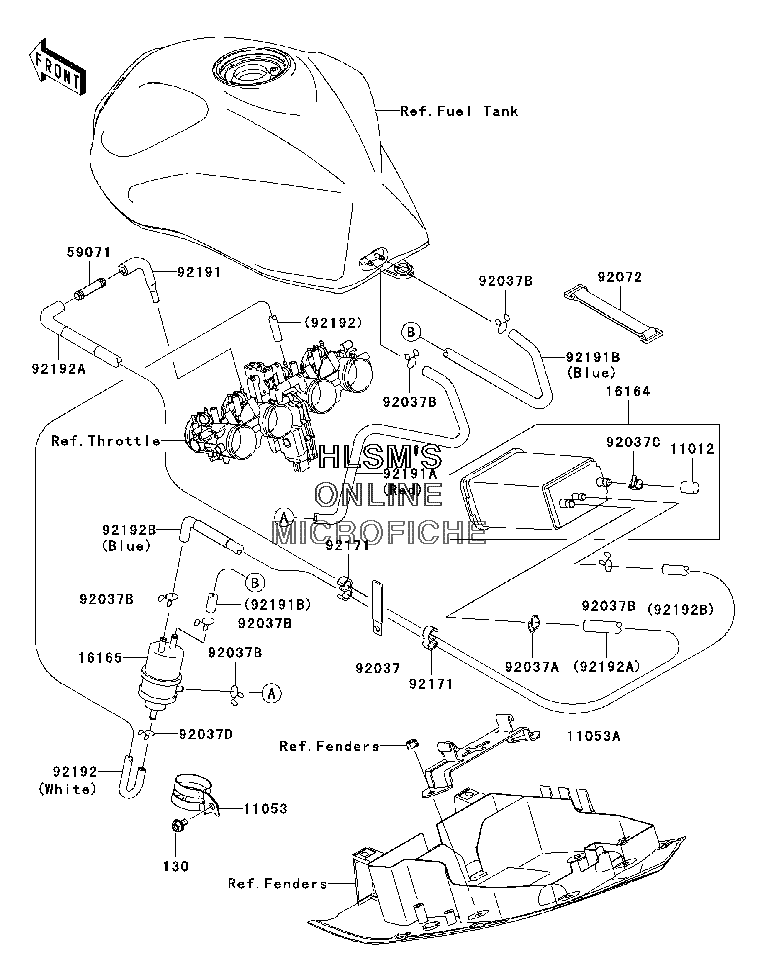

FUEL EVAPORATIVE SYSTEM (CALIF ONLY) для Kawasaki Z750S - 2006 года выпуска
-
№АртикулНазвание
-
130130G0610 BOLT, FLANGED, 6X10BOLT, FLANGED, 6X10
-
1101211012-1388 CAP, CANISTERCAP, CANISTER
-
1105311053-1191 BRACKET, SEPARATORBRACKET, SEPARATOR
-
11053A11053-1611 BRACKET, CANISTERBRACKET, CANISTER
-
1616416164-1054 CANISTERCANISTER
-
1616516165-1001 SEPARATORSEPARATOR
-
5907159071-3764 JOINTJOINT
-
9203792037-1069 CLAMP, L=60CLAMP, L=60
-
92037A92037-1104 CLAMP, HOSECLAMP, HOSE
-
92037B92037-147 CLAMP, TUBECLAMP, TUBE
-
92037C92037-1512 CLAMP, CANISTERCLAMP, CANISTER
-
92037D92037-1712 CLAMPCLAMP
-
9207292072-1384 BANDBAND
-
9217192171-1184 CLAMPCLAMP
-
9219192191-0031 TUBE, THROTTLE, FITTINGTUBE, THROTTLE, FITTING
-
92191A92191-1804 TUBE, TANK, SEPARATOR, REDTUBE, TANK, SEPARATOR, RED
-
92191B92191-1805 TUBE, TANK, SEPARATOR, BLUETUBE, TANK, SEPARATOR, BLUE
-
9219292192-0008 TUBE, THROTTLE, SEPARATOR (WHITE)TUBE, THROTTLE, SEPARATOR (WHITE)
-
92192A92192-0179 TUBE, 7X12X1185, GRN, PROTECTORTUBE, 7X12X1185, GRN, PROTECTOR
-
92192B92192-0180 TUBE, CANISTER, SEPARATOR, BLUETUBE, CANISTER, SEPARATOR, BLUE
