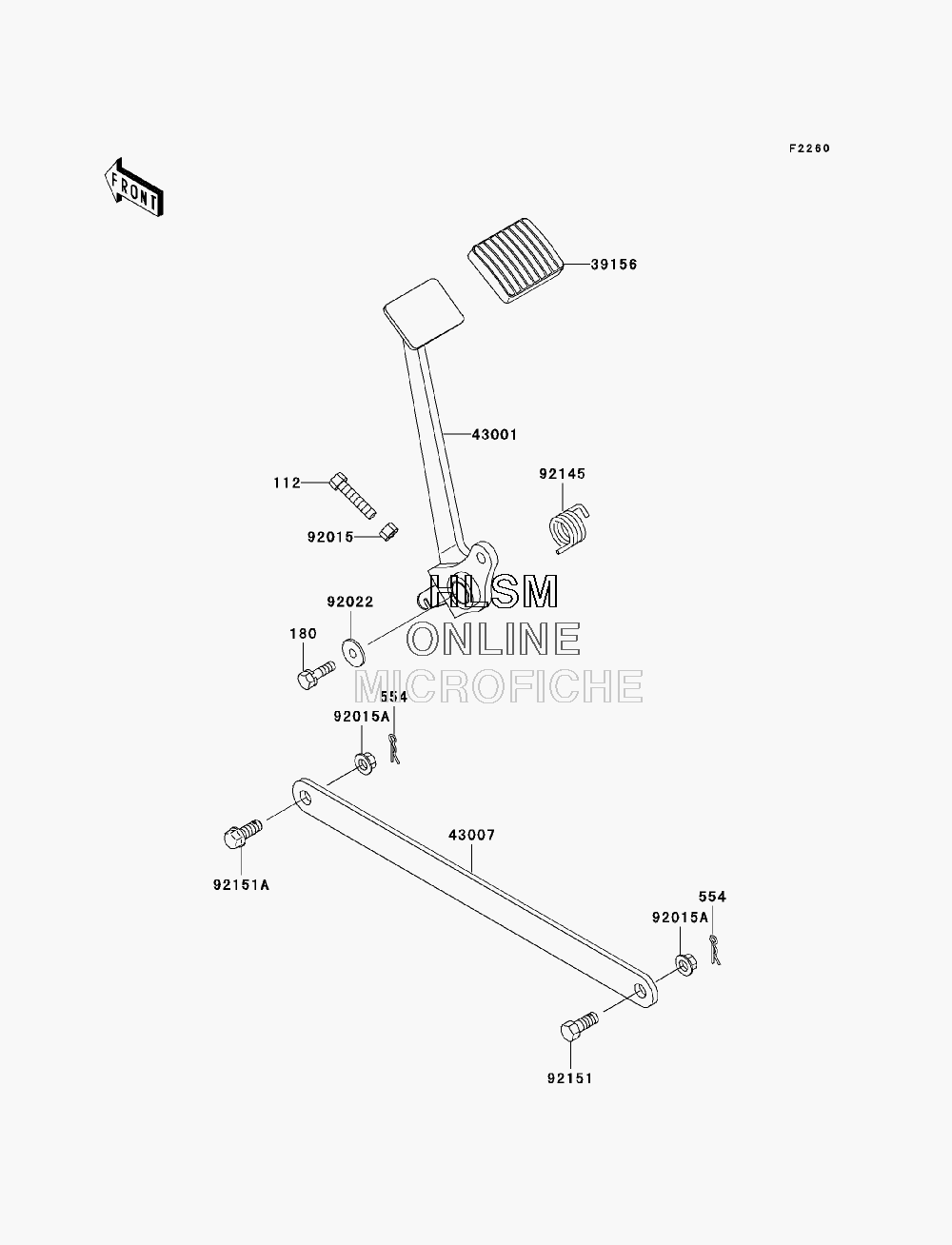

BRAKE PEDAL W/ TORQUE LINK для Kawasaki ELIMINATOR 125 (BN125A7F) - 2007 года выпуска
-
№АртикулНазвание
-
112112V0630 BOLT-UPSET, 6X30BOLT-UPSET, 6X30
-
180180BB0616 BOLT-UPSET-WS, 6X16BOLT-UPSET-WS, 6X16
-
554554DA0800 PIN-SNAPPIN-SNAP
-
3915639156-1071 PAD, BRAKE PEDALPAD, BRAKE PEDAL
-
4300143001-1390 LEVER-BRAKE, PEDALLEVER-BRAKE, PEDAL
-
4300743007-1037 ROD-TORQUEROD-TORQUE
-
9201592015-1391 NUT, 6MMNUT, 6MM
-
92015A92015-1428 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
9202292022-1346 WASHER, 6.5X20X1.6, BLACKWASHER, 6.5X20X1.6, BLACK
-
9214592145-1072 SPRING, BRAKE PEDAL RETURNSPRING, BRAKE PEDAL RETURN
-
9215192151-1203 BOLT, 10X27BOLT, 10X27
-
92151A92151-1337 BOLT, FLANGED, 10X25BOLT, FLANGED, 10X25
