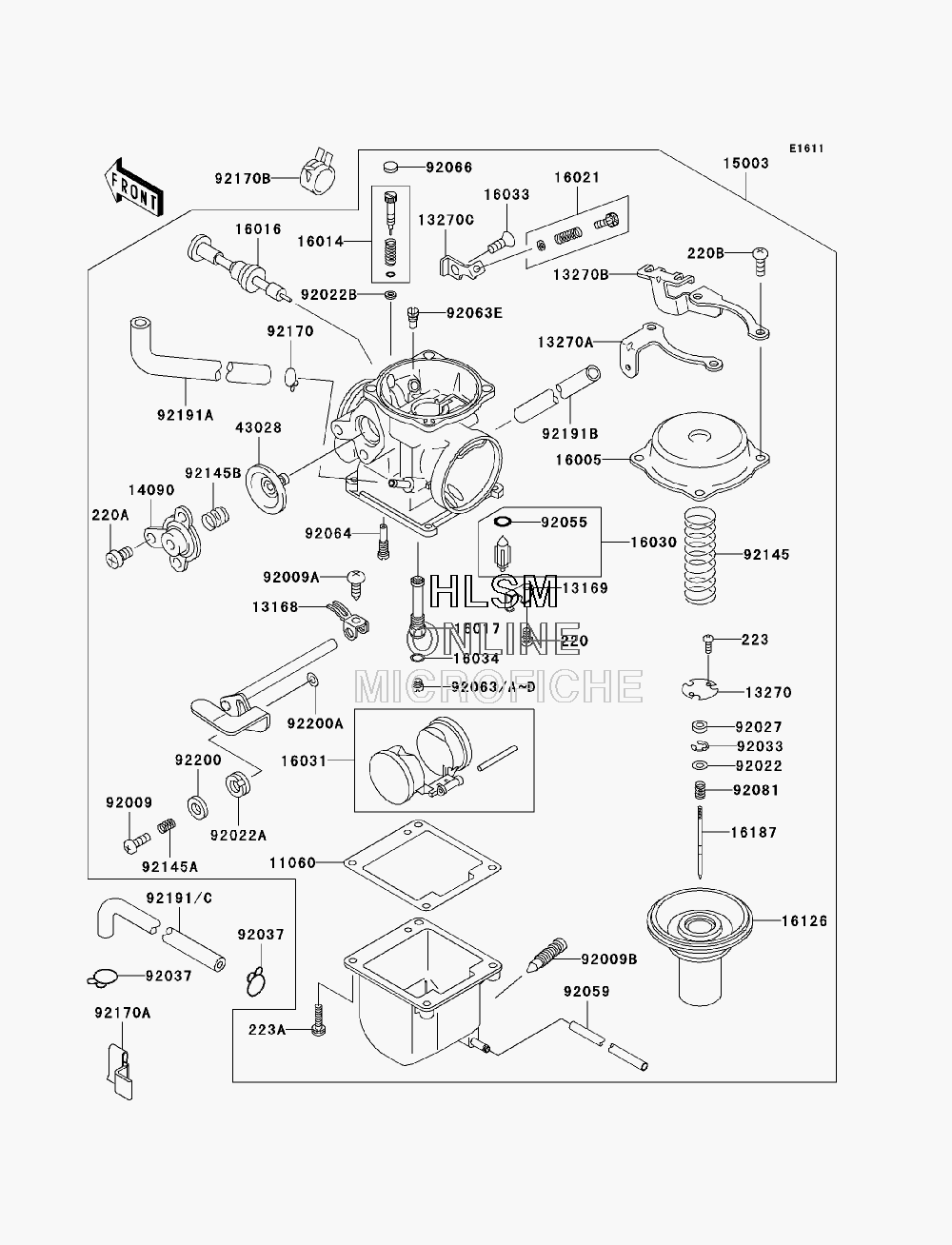

CARBURETOR для Kawasaki ELIMINATOR 125 (BN125A7F) - 2007 года выпуска
-
№АртикулНазвание
-
1106011060-1849 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
1316813168-1642 LEVER, STARTERLEVER, STARTER
-
1316913169-1482 PLATE, FLOAT VALVEPLATE, FLOAT VALVE
-
1327013270-1981 PLATE, VACUUM VALVEPLATE, VACUUM VALVE
-
13270A13270-1982 PLATE, LEFT HANDPLATE, LEFT HAND
-
13270B13270-1983 PLATE, RIGHT HANDPLATE, RIGHT HAND
-
13270C13270-1984 PLATE, THROTTLE STOP SCREWPLATE, THROTTLE STOP SCREW
-
1409014090-1931 COVER, AIR CUT VALVECOVER, AIR CUT VALVE
-
1500315003-0106 CARBURETOR-ASSY, BS28CARBURETOR-ASSY, BS28
-
1600516005-0004 TOP-CHAMBERTOP-CHAMBER
-
1601416014-1117 SCREW-PILOT AIRSCREW-PILOT AIR
-
1601616016-1106 PLUNGERPLUNGER
-
1601716017-1432 JET-NEEDLE, O-8MJET-NEEDLE, O-8M
-
1602116021-1217 SCREW-THROTTLE STOPSCREW-THROTTLE STOP
-
1603016030-1086 VALVE-FLOATVALVE-FLOAT
-
1603116031-1094 FLOATFLOAT
-
1603316033-024 SCREW, 5X8SCREW, 5X8
-
1603416034-001 WASHER, MAIN JETWASHER, MAIN JET
-
1612616126-1352 VALVE, VACUUMVALVE, VACUUM
-
1618716187-1188 NEEDLE-JET, 4C17NEEDLE-JET, 4C17
-
4302843028-1026 DIAPHRAGM, COASTING RICHERDIAPHRAGM, COASTING RICHER
-
9200992009-1823 SCREW, STARTER LEVERSCREW, STARTER LEVER
-
92009A92009-1824 SCREW, STARTERSCREW, STARTER
-
92009B92009-1826 SCREW, DRAINSCREW, DRAIN
-
9202292022-1123 WASHER, JET NEEDLEWASHER, JET NEEDLE
-
92022A92022-1147 WASHER, PLAIN, DURACONWASHER, PLAIN, DURACON
-
92022B92022-1187 WASHER, ADJUST SCREWWASHER, ADJUST SCREW
-
9202792027-1103 COLLAR, THROTTLE VALVECOLLAR, THROTTLE VALVE
-
9203392033-1290 RING-SNAPRING-SNAP
-
9203792037-1610 CLAMPCLAMP
-
9205592055-1105 RING-ORING-O
-
9205992059-1243 TUBE, 3X5X220, OVERFLOWTUBE, 3X5X220, OVERFLOW
-
9206392063-1100 JET-MAIN, #A127.5 (OPTION)JET-MAIN, #A127.5 (OPTION)
-
92063A92063-1101 JET-MAIN, #A122.5 (OPTION)JET-MAIN, #A122.5 (OPTION)
-
92063B92063-1102 JET-MAIN, #A125JET-MAIN, #A125
-
92063C92063-1103 JET-MAIN, #A130 (OPTION)JET-MAIN, #A130 (OPTION)
-
92063D92063-1106 JET-MAIN, #A120 (OPTION)JET-MAIN, #A120 (OPTION)
-
220220AA0406 SCREW-PAN-CROS, 4X6SCREW-PAN-CROS, 4X6
-
220A220AA0410 SCREW-PAN-CROS, 4X10SCREW-PAN-CROS, 4X10
-
220B220AA0510 SCREW-PAN-CROSS, 5X10SCREW-PAN-CROSS, 5X10
-
223223AA0307 SCREW-PAN-WS-CROS, 3X7SCREW-PAN-WS-CROS, 3X7
-
223A223AA0414 SCREW-PAN-WS-CROS, 4X14SCREW-PAN-WS-CROS, 4X14
-
92063E92063-2059 JET, #70JET, #70
-
9206492064-1230 JET-PILOT, #32.5JET-PILOT, #32.5
-
9206692066-1501 PLUG, PILOT AIR SCREWPLUG, PILOT AIR SCREW
-
9208192081-1126 SPRING, JET NEEDLESPRING, JET NEEDLE
-
9214592145-1124 SPRING, VACUUM VALVESPRING, VACUUM VALVE
-
92145A92145-1125 SPRING, STARTER LEVERSPRING, STARTER LEVER
-
92145B92145-1127 SPRING, AIR CUT VALVESPRING, AIR CUT VALVE
-
9217092170-1818 CLAMPCLAMP
-
92170A92170-1936 CLAMPCLAMP
-
92170B92170-2043 CLAMPCLAMP
-
9219192191-1210 TUBE, L=115 (EXCEPT CALIF.)TUBE, L=115 (EXCEPT CALIF.)
-
92191A92191-1244 TUBETUBE
-
92191B92191-1245 TUBE, 5X8X300TUBE, 5X8X300
-
92191C92191-1623 TUBE, L=66.8 (CALIF. ONLY)TUBE, L=66.8 (CALIF. ONLY)
-
9220092200-1397 WASHER, STARTER LEVERWASHER, STARTER LEVER
-
92200A92200-1398 WASHER, STARTER LEVERWASHER, STARTER LEVER
