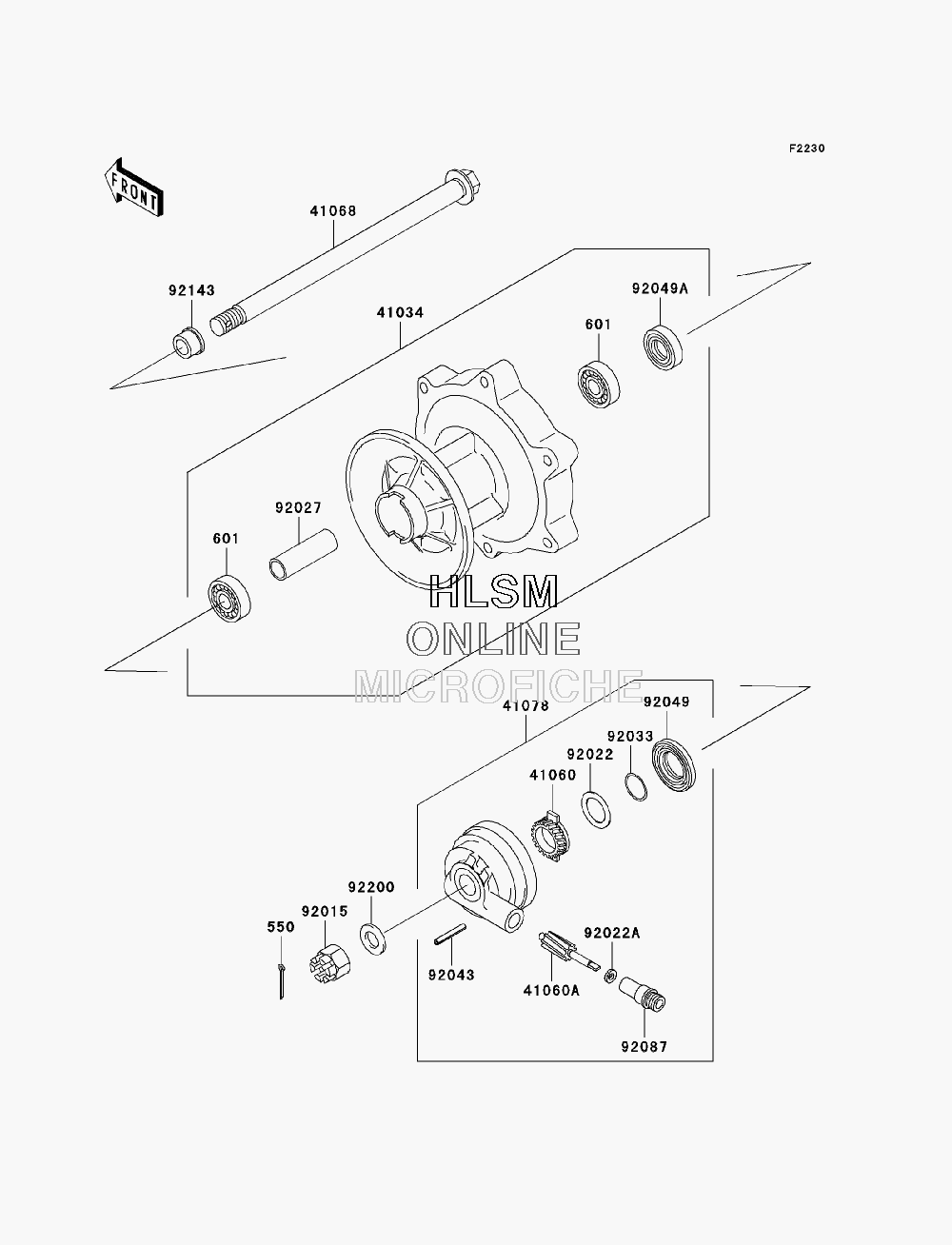

WHEEL - FRONT для Kawasaki ELIMINATOR 125 (BN125A7F) - 2007 года выпуска
-
№АртикулНазвание
-
550550S3025 PIN-COTTER, 3X25PIN-COTTER, 3X25
-
601601B6202G BEARING-BALL, #6202GBEARING-BALL, #6202G
-
4103441034-1312 DRUM-ASSY, FRONT BRAKEDRUM-ASSY, FRONT BRAKE
-
4106041060-1133 GEAR-METER SCREW, 20TGEAR-METER SCREW, 20T
-
41060A41060-1134 GEAR-METER SCREW, 8TGEAR-METER SCREW, 8T
-
4106841068-1421 AXLE, FRONTAXLE, FRONT
-
4107841078-1087 CASE-ASSY-METER GEARCASE-ASSY-METER GEAR
-
9201592015-1765 NUT, CASTLE, 14MMNUT, CASTLE, 14MM
-
9202292022-1510 WASHER, 20X29X1.0WASHER, 20X29X1.0
-
92022A92022-1511 WASHER, 5X9.5X0.8WASHER, 5X9.5X0.8
-
9202792027-1866 COLLAR, L=70COLLAR, L=70
-
9203392033-1160 RING-SNAP, 19MMRING-SNAP, 19MM
-
9204392043-1220 PIN, SPRING, 2X14PIN, SPRING, 2X14
-
9204992049-1173 SEAL-OIL, SD42 50 6SEAL-OIL, SD42 50 6
-
92049A92049-1348 SEAL-OIL, 22X35X8SEAL-OIL, 22X35X8
-
9208792087-1051 BUSHING-METER GEARBUSHING-METER GEAR
-
9214392143-1949 COLLAR, FRONT AXLE, L=23.5COLLAR, FRONT AXLE, L=23.5
-
9220092200-1366 WASHER, 15X30X3.2WASHER, 15X30X3.2
