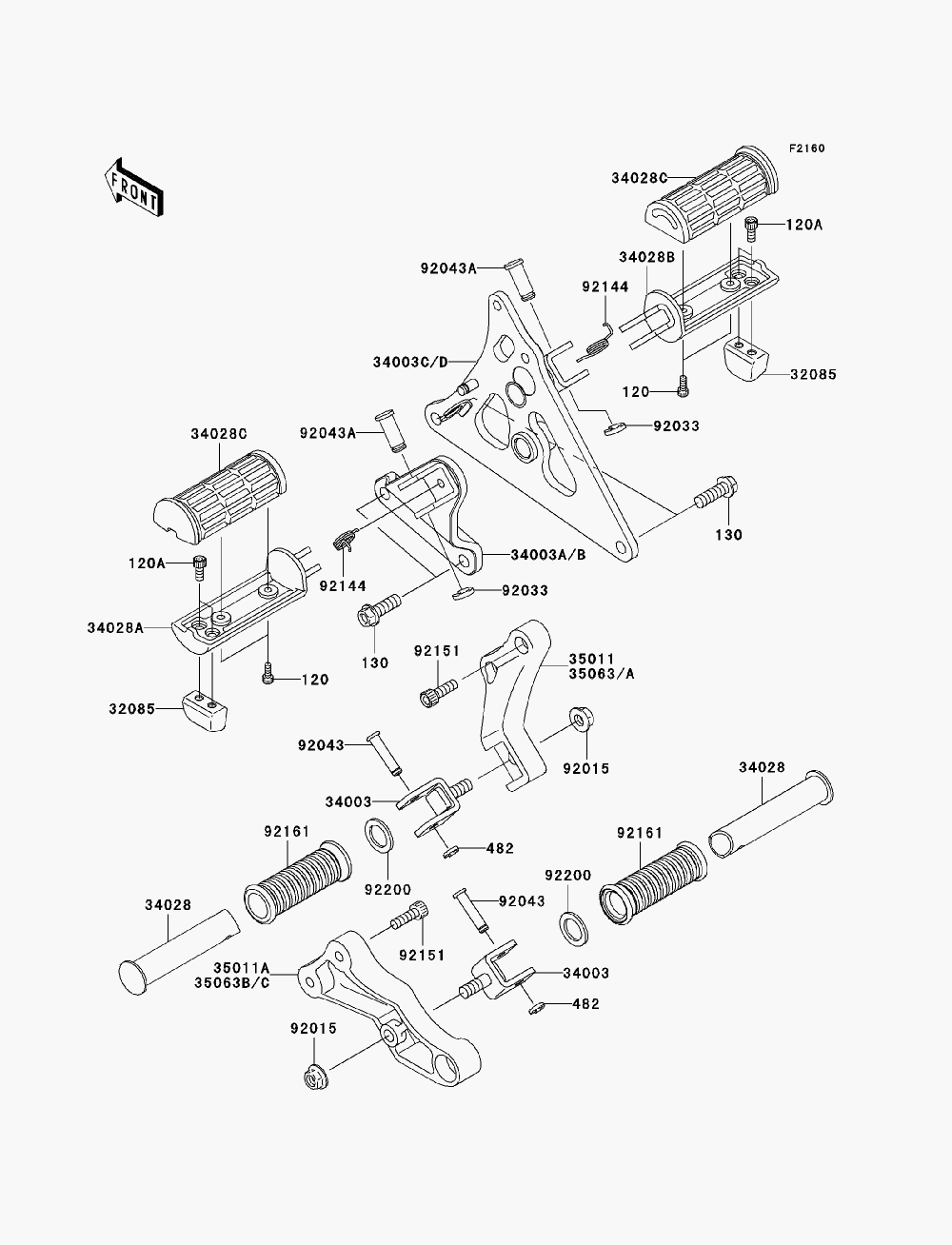

FOOTRESTS для Kawasaki VULCAN 1600 MEAN STREAK (VN1600B8F) - 2008 года выпуска
-
№АртикулНазвание
-
120120S0512 BOLT-SOCKET, 5X12BOLT-SOCKET, 5X12
-
120A120S0614 BOLT-SOCKET, 6X14BOLT-SOCKET, 6X14
-
130130J1030 BOLT-FLANGED, 10X30BOLT-FLANGED, 10X30
-
482482L7000 CIRCLIP-TYPE-ECIRCLIP-TYPE-E
-
3208532085-1534 STOPPER, BANK SENSORSTOPPER, BANK SENSOR
-
3400334003-0015 HOLDER-STEP, REARHOLDER-STEP, REAR
-
34003B34003-0064 HOLDER-STEP, FRONT, LEFT HANDHOLDER-STEP, FRONT, LEFT HAND
-
34003C34003-0065 HOLDER-STEP, FRONT, RIGHT HANDHOLDER-STEP, FRONT, RIGHT HAND
-
3402834028-0017 STEP, REARSTEP, REAR
-
34028A34028-1519 STEP, FRONT, LEFT HANDSTEP, FRONT, LEFT HAND
-
34028B34028-1520 STEP, FRONT, RIGHT HANDSTEP, FRONT, RIGHT HAND
-
34028C34028-1522 STEP, RUBBERSTEP, RUBBER
-
3506335063-0245-18R STAY, REAR STEP, LEFT HAND, BLACK (USA ONLY) (FOR 816)STAY, REAR STEP, LEFT HAND, BLACK (USA ONLY) (FOR 816)
-
35063A35063-0245-796 STAY, REAR STEP, LEFT HAND, P.RED (CANADA ONLY) (FOR 17K)STAY, REAR STEP, LEFT HAND, P.RED (CANADA ONLY) (FOR 17K)
-
35063B35063-0246-18R STAY, REAR STEP, RIGHT HAND, BLACK (USA ONLY) (FOR 816)STAY, REAR STEP, RIGHT HAND, BLACK (USA ONLY) (FOR 816)
-
35063C35063-0246-796 STAY, REAR STEP, RIGHT HAND, P.RED (CANADA ONLY) (FOR 17K)STAY, REAR STEP, RIGHT HAND, P.RED (CANADA ONLY) (FOR 17K)
-
9201592015-1428 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
9203392033-1166 RING-SNAP, 10MMRING-SNAP, 10MM
-
9204392043-1339 PIN, 8X36.5PIN, 8X36.5
-
92043A92043-1358 PIN, 12X37PIN, 12X37
-
9214492144-1126 SPRING, STEP RETURNSPRING, STEP RETURN
-
9215192151-1525 BOLT, SOCKET, 8X25BOLT, SOCKET, 8X25
-
9216192161-0232 DAMPER, STEPDAMPER, STEP
-
9220092200-1482 WASHER, 22.5X33X2.3WASHER, 22.5X33X2.3
