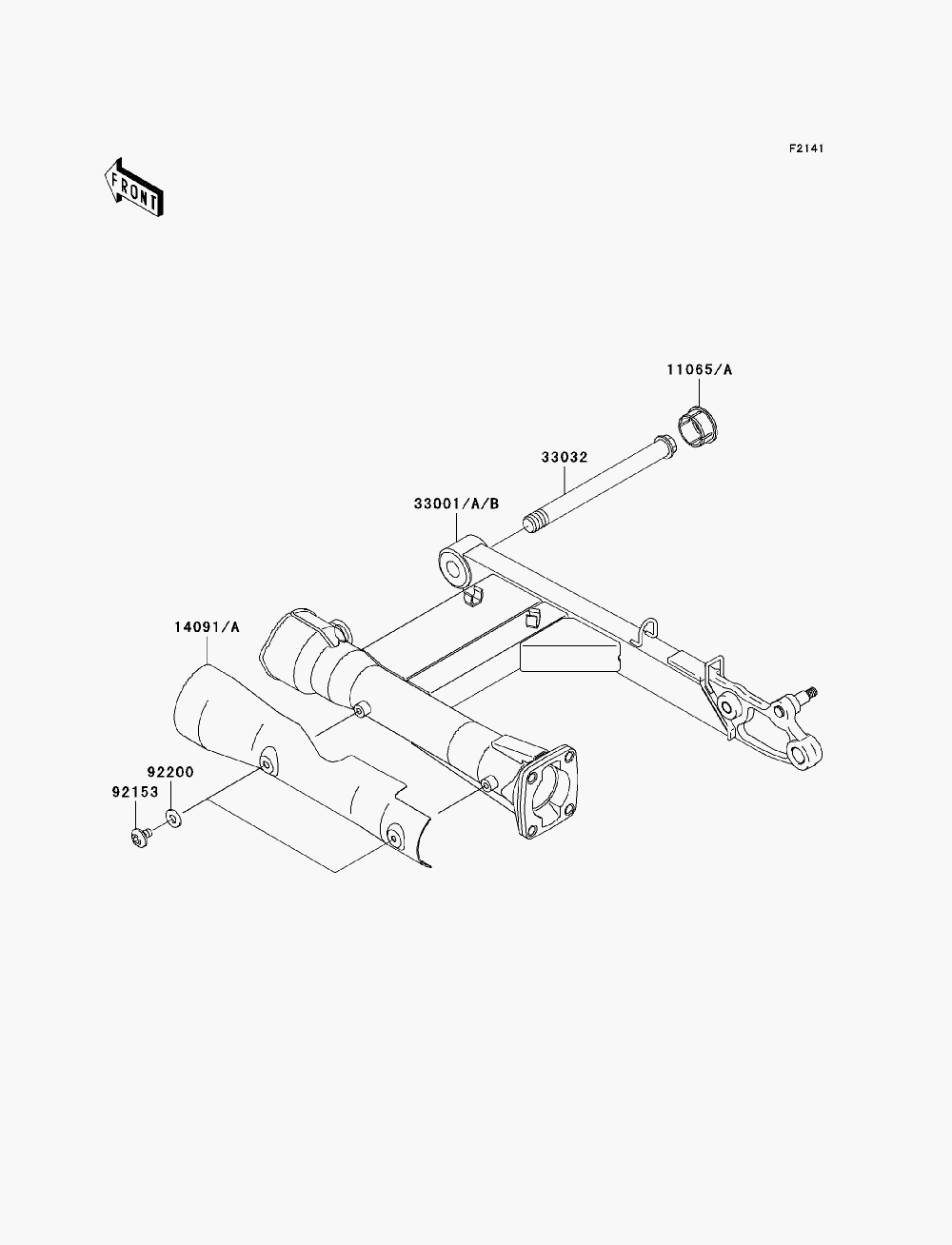

SUSPENSION - SWINGARM для Kawasaki VULCAN 1600 MEAN STREAK (VN1600B8F) - 2008 года выпуска
-
№АртикулНазвание
-
1106511065-0243 CAP, SWING ARMCAP, SWING ARM
-
1409114091-0060 COVER, SWING ARM (USA ONLY)COVER, SWING ARM (USA ONLY)
-
14091A14091-0517-796 COVER, SWING ARM, P.RED (CANADA ONLY) (FOR 17K)COVER, SWING ARM, P.RED (CANADA ONLY) (FOR 17K)
-
33001A33001-0075-18R ARM-COMP-SWING, BLACK (USA ONLY) (FOR 816)ARM-COMP-SWING, BLACK (USA ONLY) (FOR 816)
-
33001B33001-0075-796 ARM-COMP-SWING, P.RED (CANADA ONLY) (FOR 17K)ARM-COMP-SWING, P.RED (CANADA ONLY) (FOR 17K)
-
3303233032-1181 SHAFT-SWING ARMSHAFT-SWING ARM
-
9215392153-0411 BOLT, SOCKET, 6X10BOLT, SOCKET, 6X10
-
9220092200-3775 WASHER, 6.5X14.5X1.5WASHER, 6.5X14.5X1.5
