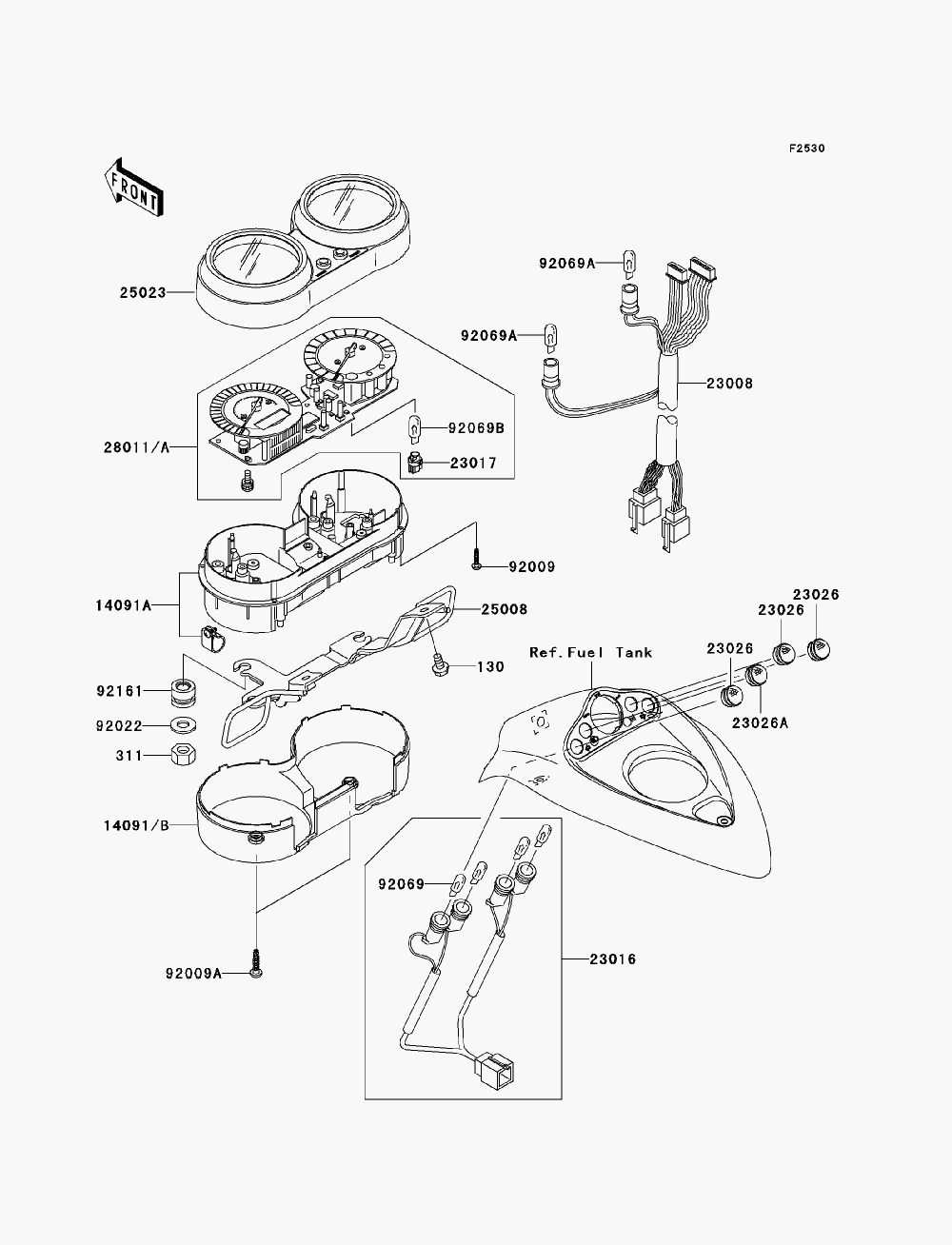

METER(S) для Kawasaki VULCAN 1600 MEAN STREAK (VN1600B8F) - 2008 года выпуска
-
№АртикулНазвание
-
130130J0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
311311B0500 NUT-HEXNUT-HEX
-
1409114091-0676 COVER, METER, LWR (CANADA ONLY)COVER, METER, LWR (CANADA ONLY)
-
14091A14091-1370 COVER, METER HOUSINGCOVER, METER HOUSING
-
14091B14091-1371 COVER, METER, LWR (USA ONLY)COVER, METER, LWR (USA ONLY)
-
2300823008-1655 SOCKET-ASSY, METERSOCKET-ASSY, METER
-
2301623016-1192 LAMP-ASSYLAMP-ASSY
-
2301723017-1064 SOCKETSOCKET
-
2302623026-1171 LENS, GREENLENS, GREEN
-
23026A23026-1172 LENS, BLUELENS, BLUE
-
2500825008-1230 BRACKET-METERBRACKET-METER
-
2502325023-1261 COVER-METER CASE, UPPCOVER-METER CASE, UPP
-
2801128011-1224 METER, SPEED & TACHO, MPH (USA ONLY)METER, SPEED & TACHO, MPH (USA ONLY)
-
28011A28011-1225 METER, SPEED & TACHO, KPH (CANADA ONLY)METER, SPEED & TACHO, KPH (CANADA ONLY)
-
9200992009-1592 SCREW, TAPPING, 3X14SCREW, TAPPING, 3X14
-
92009A92009-1601 SCREW, TAPPING, 4X16SCREW, TAPPING, 4X16
-
9202292022-263 WASHER, 5.2X16X1.2WASHER, 5.2X16X1.2
-
9206992069-1007 BULB, 12V 3.4W, T10BULB, 12V 3.4W, T10
-
92069A92069-1059 BULB, 12V 1.7W, T10BULB, 12V 1.7W, T10
-
92069B92069-1068 BULB, 12V 3W, T6.5BULB, 12V 3W, T6.5
-
9216192161-1247 DAMPER, METER BRACKETDAMPER, METER BRACKET
