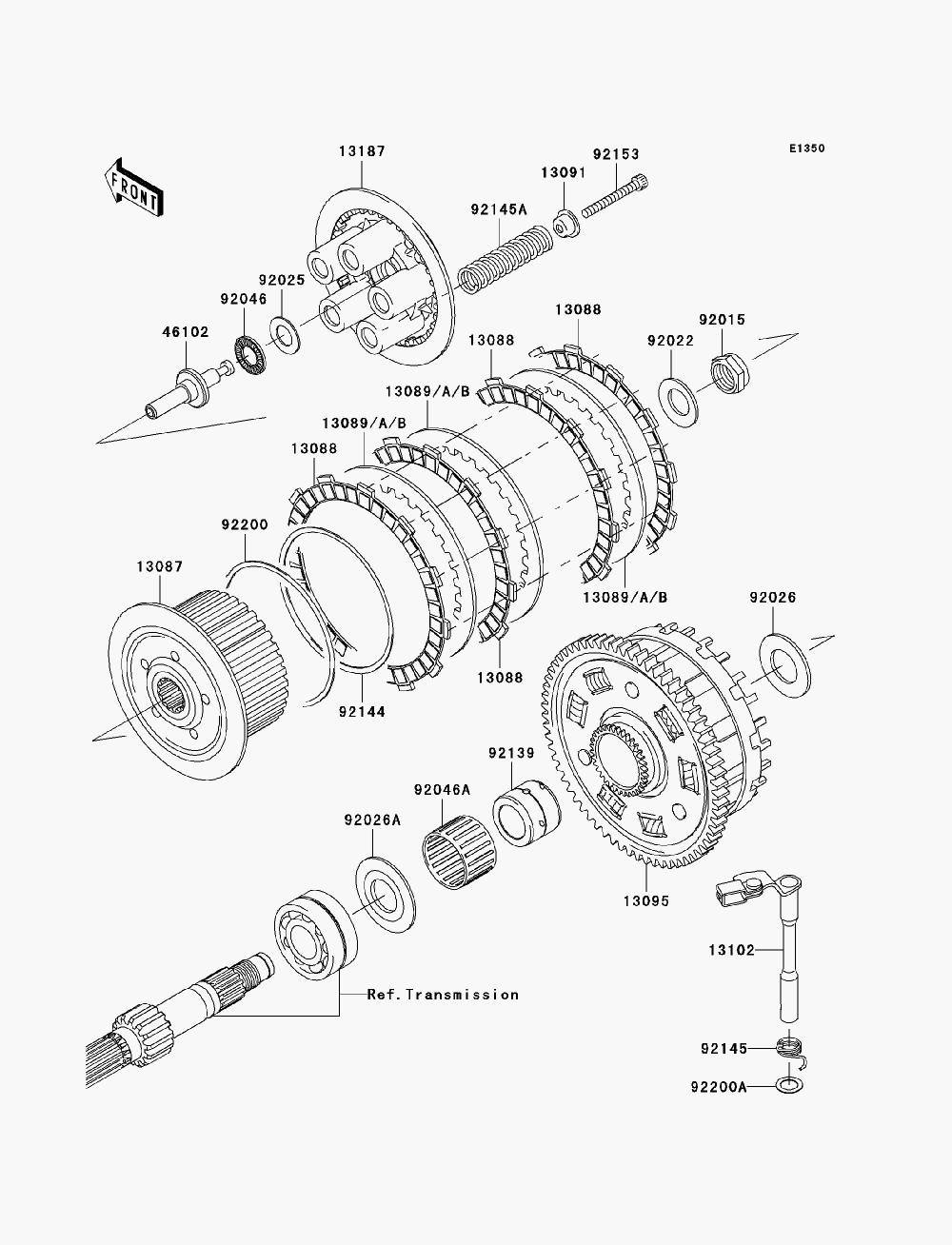

CLUTCH для Kawasaki Z1000 (ZR1000B8F) - 2008 года выпуска
-
№АртикулНазвание
-
1308713087-1173 HUB-CLUTCHHUB-CLUTCH
-
1308813088-1124 PLATE-FRICTIONPLATE-FRICTION
-
1308913089-1073 PLATE-CLUTCH, T=2.0PLATE-CLUTCH, T=2.0
-
13089A13089-1084 PLATE-CLUTCH, T=2.3PLATE-CLUTCH, T=2.3
-
13089B13089-1115 PLATE-CLUTCH, T=2.6PLATE-CLUTCH, T=2.6
-
1309113091-1840 HOLDER, CLUTCH SPRINGHOLDER, CLUTCH SPRING
-
1309513095-0061 HOUSING-COMP-CLUTCHHOUSING-COMP-CLUTCH
-
1310213102-1162 RELEASE-COMP-CLUTCHRELEASE-COMP-CLUTCH
-
1318713187-1083 PLATE-CLUTCH OPERATINGPLATE-CLUTCH OPERATING
-
4610246102-0083 RODROD
-
9201592015-1555 NUT, 20MMNUT, 20MM
-
9202292022-1868 WASHER, 20.3X36X3.7WASHER, 20.3X36X3.7
-
9202592025-1137 SHIM, 15.3X27.5X1.20SHIM, 15.3X27.5X1.20
-
9202692026-022 SPACER, 25.5X47X2.5SPACER, 25.5X47X2.5
-
92026A92026-1497 SPACERSPACER
-
9204692046-1052 BEARING-NEEDLE, AXK1102BEARING-NEEDLE, AXK1102
-
92046A92046-1263 BEARING-NEEDLE, K38X43X28.8XBEARING-NEEDLE, K38X43X28.8X
-
9213992139-0067 BUSHING, 25X38X29.05BUSHING, 25X38X29.05
-
9214492144-1854 SPRING, FRICTION PLATESPRING, FRICTION PLATE
-
9214592145-0066 SPRING, CLUTCH RELEASESPRING, CLUTCH RELEASE
-
92145A92145-0424 SPRING, CLUTCHSPRING, CLUTCH
-
9215392153-0332 BOLTBOLT
-
9220092200-1260 WASHER, FRICTION PLATEWASHER, FRICTION PLATE
-
92200A92200-1487 WASHER, 12X18.5X0.5WASHER, 12X18.5X0.5
