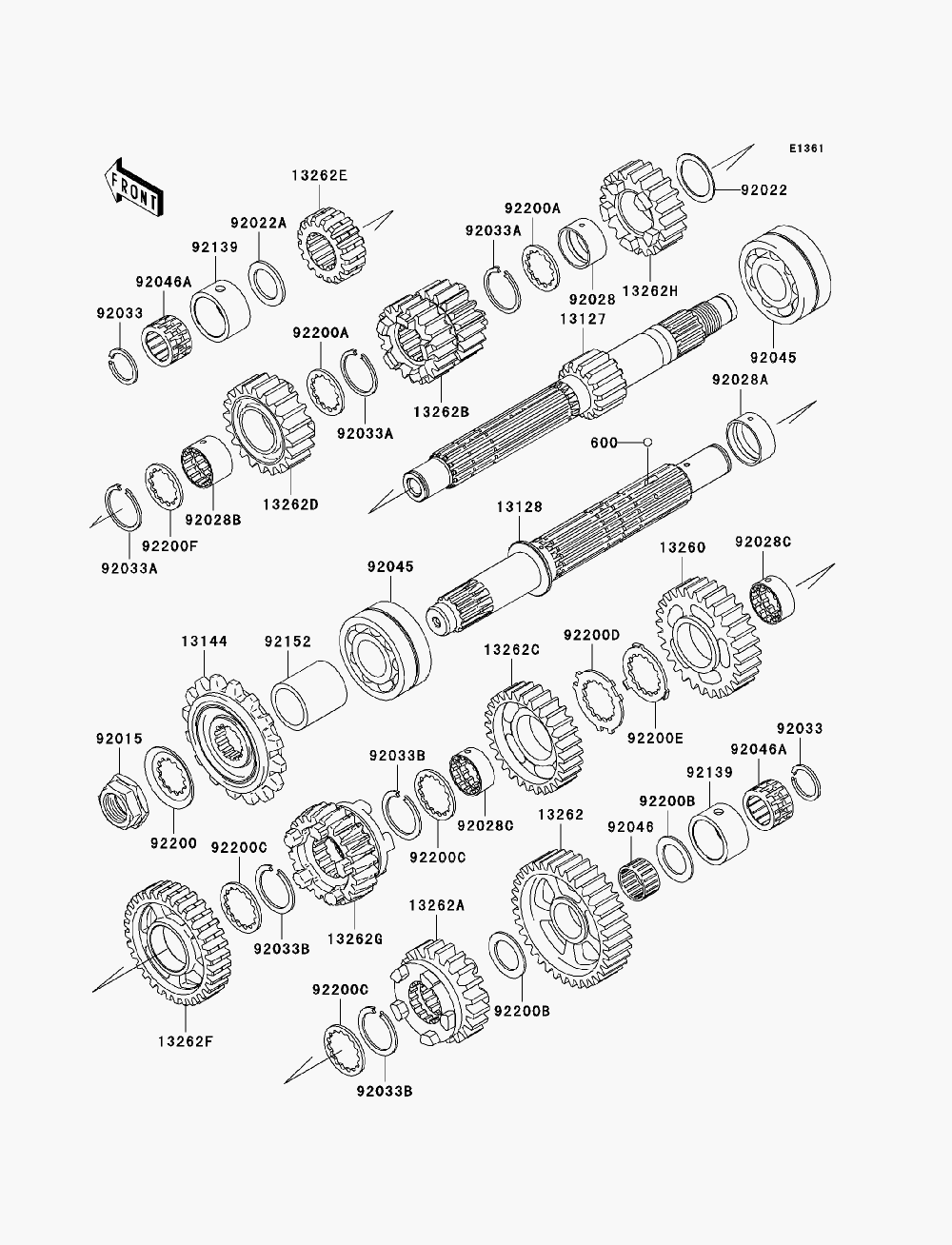

TRANSMISSION для Kawasaki Z1000 (ZR1000B8F) - 2008 года выпуска
-
№АртикулНазвание
-
600600A0500 BALL-STEEL, 5/32"BALL-STEEL, 5/32"
-
1312713127-0007 SHAFT-TRANSMISSION INPUTSHAFT-TRANSMISSION INPUT
-
1312813128-0040 SHAFT-TRANSMISSION OUTPUTSHAFT-TRANSMISSION OUTPUT
-
1314413144-0043 SPROCKET-OUTPUT, 15TSPROCKET-OUTPUT, 15T
-
1326013260-1880 GEAR, OUTPUT 3RD, 28TGEAR, OUTPUT 3RD, 28T
-
1326213262-0029 GEAR, OUTPUT LOW, 36TGEAR, OUTPUT LOW, 36T
-
13262A13262-0030 GEAR, OUTPUT 5TH, 24TGEAR, OUTPUT 5TH, 24T
-
13262B13262-0031 GEAR, INPUT 3RD & 4TH, 18T & 21TGEAR, INPUT 3RD & 4TH, 18T & 21T
-
13262C13262-0077 GEAR, OUTPUT 4TH, 28TGEAR, OUTPUT 4TH, 28T
-
13262D13262-0228 GEAR, INPUT TOP, 21TGEAR, INPUT TOP, 21T
-
13262E13262-0422 GEAR, INPUT 2ND, 17TGEAR, INPUT 2ND, 17T
-
13262F13262-0424 GEAR, OUTPUT 2ND, 32TGEAR, OUTPUT 2ND, 32T
-
13262G13262-0426 GEAR, OUTPUT TOP, 23TGEAR, OUTPUT TOP, 23T
-
13262H13262-0542 GEAR, INPUT 5TH, 20TGEAR, INPUT 5TH, 20T
-
9201592015-1963 NUT, 20MMNUT, 20MM
-
9202292022-1109 WASHER, 25.3X33X1WASHER, 25.3X33X1
-
92022A92022-112 WASHER, 20.5X30X1, STEELWASHER, 20.5X30X1, STEEL
-
9202892028-1735 BUSHING, INPUT 5TH GEARBUSHING, INPUT 5TH GEAR
-
92028A92028-1739 BUSHING, OUTPUT, 2NDBUSHING, OUTPUT, 2ND
-
92028B92028-1915 BUSHING, INPUT TOP GEARBUSHING, INPUT TOP GEAR
-
92028C92028-1968 BUSHING, OUTPUT, 3RD & 4THBUSHING, OUTPUT, 3RD & 4TH
-
9203392033-015 RING-SNAP, 20MMRING-SNAP, 20MM
-
92033A92033-026 RING-SNAP, 24MMRING-SNAP, 24MM
-
92033B92033-1249 RING-SNAP, T=1.5RING-SNAP, T=1.5
-
9204592045-0003 BEARING-BALL, DAC2557NSSHBEARING-BALL, DAC2557NSSH
-
9204692046-1219 BEARING-NEEDLE, K20X24X13BEARING-NEEDLE, K20X24X13
-
92046A92046-1303 BEARING-NEEDLE, PK20X27X17X3BEARING-NEEDLE, PK20X27X17X3
-
9213992139-1090 BUSHING, 27X34X18.6BUSHING, 27X34X18.6
-
9215292152-1466 COLLAR, SPROCKETCOLLAR, SPROCKET
-
9220092200-1065 WASHERWASHER
-
92200A92200-1239 WASHER, 25.2X31.0X1.5WASHER, 25.2X31.0X1.5
-
92200B92200-1375 WASHER, 20.5X31X1.5WASHER, 20.5X31X1.5
-
92200C92200-1457 WASHER, T=2.0WASHER, T=2.0
-
92200D92200-1522 WASHER, 25.8X40.5X1.5WASHER, 25.8X40.5X1.5
-
92200E92200-1523 WASHER, 25.2X37.0X1.0WASHER, 25.2X37.0X1.0
-
92200F92200-1524 WASHER, INPUTWASHER, INPUT
