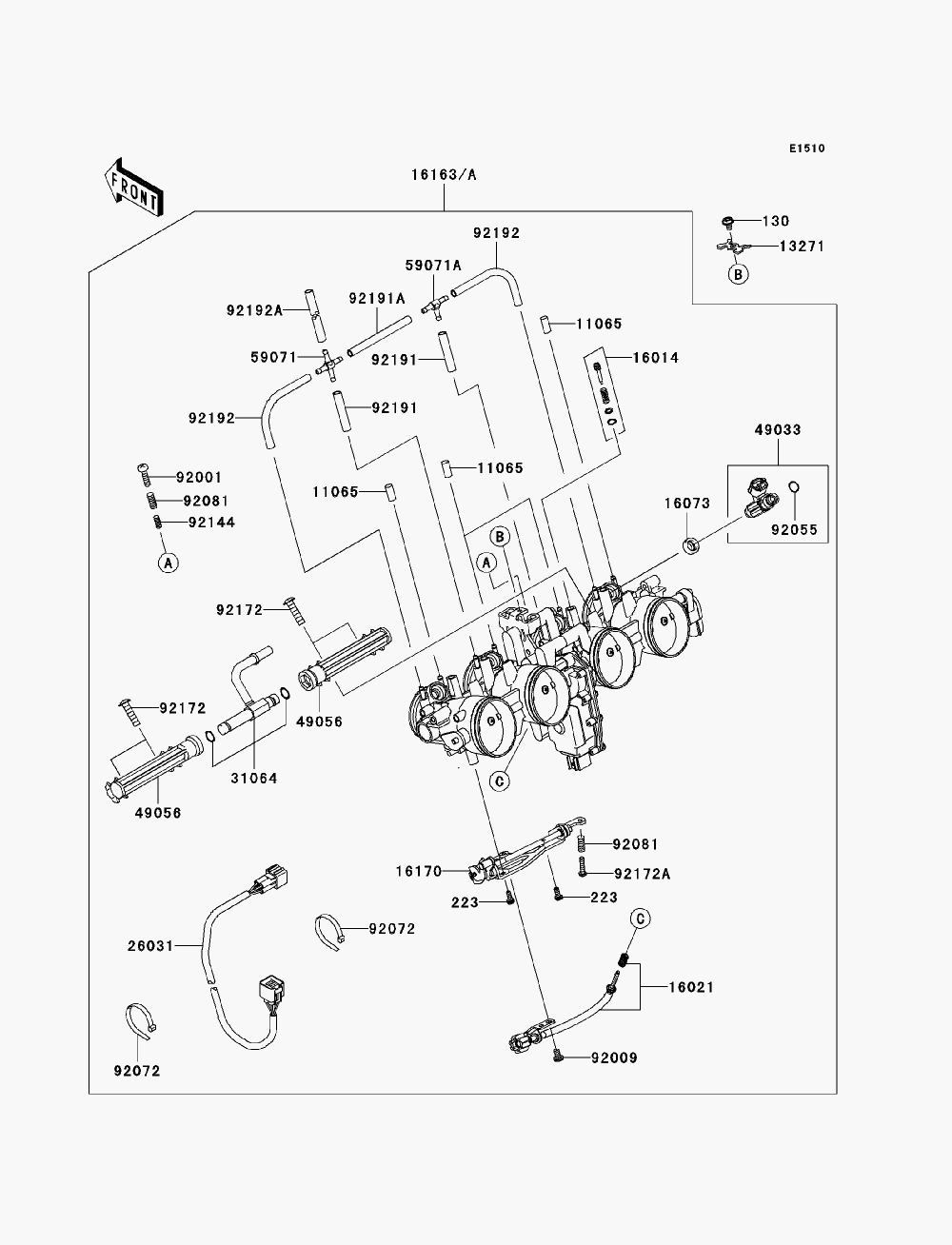

THROTTLE для Kawasaki Z1000 (ZR1000B8F) - 2008 года выпуска
-
№АртикулНазвание
-
130130G0508 BOLT-FLANGED, 5X8BOLT-FLANGED, 5X8
-
223223D0410 SCREW-PAN-WS-CROS, 4X10SCREW-PAN-WS-CROS, 4X10
-
1106511065-0018 CAPCAP
-
1327113271-0056 PLATEPLATE
-
1601416014-0002 SCREW-PILOT AIRSCREW-PILOT AIR
-
1602116021-0017 SCREW-THROTTLE STOPSCREW-THROTTLE STOP
-
1607316073-3707 INSULATORINSULATOR
-
1616316163-0079 THROTTLE-ASSY, TTK36 (EXCEPT CALIF.)THROTTLE-ASSY, TTK36 (EXCEPT CALIF.)
-
16163A16163-0121 THROTTLE-ASSY (CALIF. ONLY)THROTTLE-ASSY (CALIF. ONLY)
-
1617016170-0005 LINK-ASSYLINK-ASSY
-
2603126031-0313 HARNESSHARNESS
-
3106431064-0101 PIPE-COMP, FUELPIPE-COMP, FUEL
-
4903349033-0012 NOZZLE-INJECTIONNOZZLE-INJECTION
-
4905649056-0001 PIPE-INJECTIONPIPE-INJECTION
-
5907159071-0014 JOINT, 4WAYJOINT, 4WAY
-
59071A59071-3752 JOINT, 3WAY, TJOINT, 3WAY, T
-
9200192001-1998 BOLT, THROTTLE ADJUSTBOLT, THROTTLE ADJUST
-
9200992009-1502 SCREW, 5X10SCREW, 5X10
-
9205592055-1622 RING-O, INJECTION NOZZLERING-O, INJECTION NOZZLE
-
9207292072-0012 BAND, SUB-HARNESSBAND, SUB-HARNESS
-
9208192081-1620 SPRINGSPRING
-
9214492144-1451 SPRINGSPRING
-
9217292172-0064 SCREW, PIPE INJECTIONSCREW, PIPE INJECTION
-
92172A92172-0321 SCREWSCREW
-
9219192191-0025 TUBE, 3X7X30TUBE, 3X7X30
-
92191A92191-0036 TUBE, 3X7X82TUBE, 3X7X82
-
9219292192-0018 TUBE, 3X7X95TUBE, 3X7X95
-
92192A92192-0019 TUBE, 3X7X170TUBE, 3X7X170
