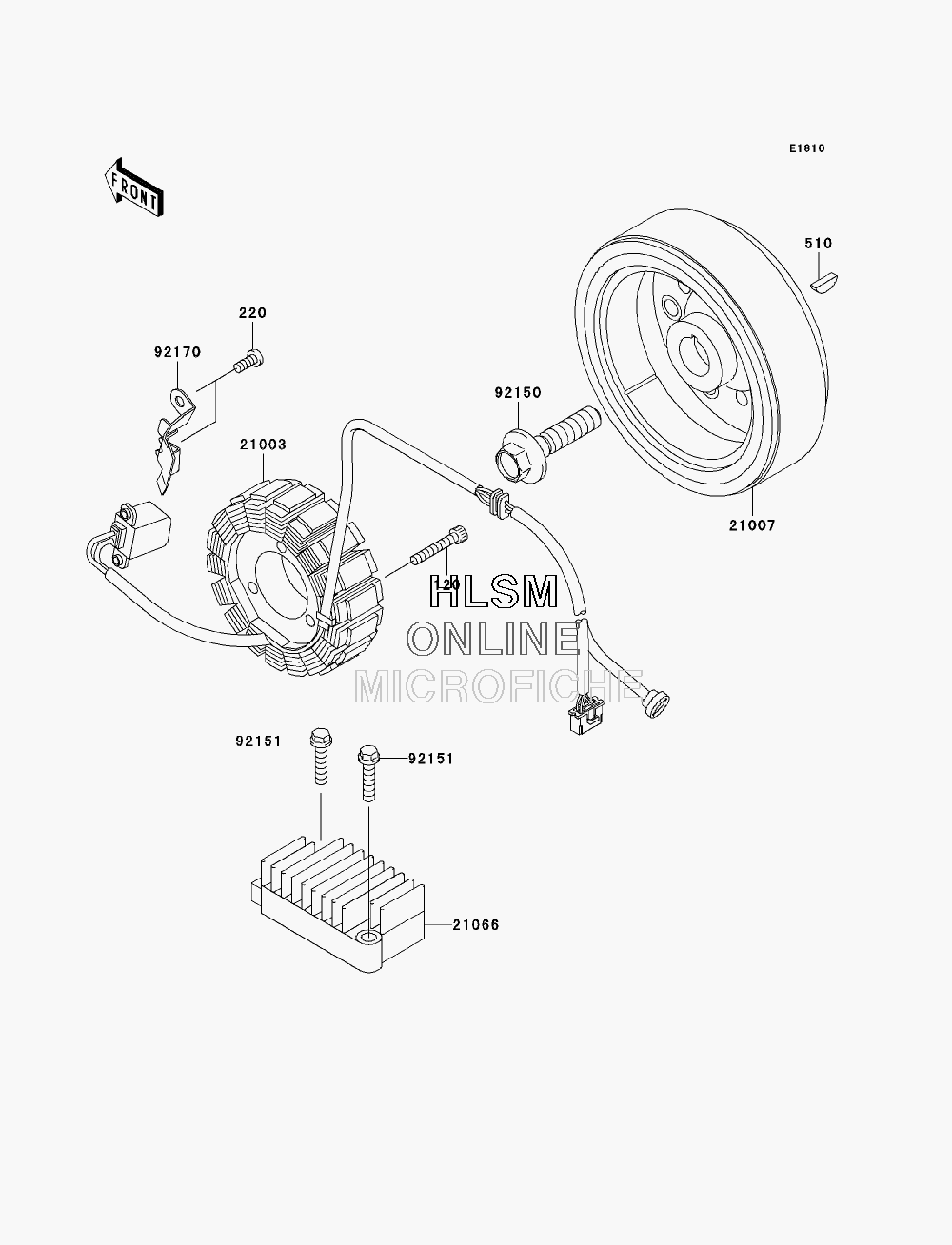

GENERATOR для Kawasaki SUPER SHERPA (KL250G9F) - 2009 года выпуска
-
№АртикулНазвание
-
120120CA0530 BOLT-SOCKET, 5X30BOLT-SOCKET, 5X30
-
220220AA0512 SCREW-PAN-CROS, 5X12SCREW-PAN-CROS, 5X12
-
510510A3100 KEY-WOODRUFFKEY-WOODRUFF
-
2100321003-1312 STATORSTATOR
-
2100721007-1273 ROTOR, MAGNETOROTOR, MAGNETO
-
2106621066-1108 REGULATOR-VOLTAGEREGULATOR-VOLTAGE
-
9215092150-1708 BOLT, 12X50BOLT, 12X50
-
9215192151-1930 BOLT, FLANGED-SMALL, 6X25BOLT, FLANGED-SMALL, 6X25
-
9217092170-1346 CLAMPCLAMP
