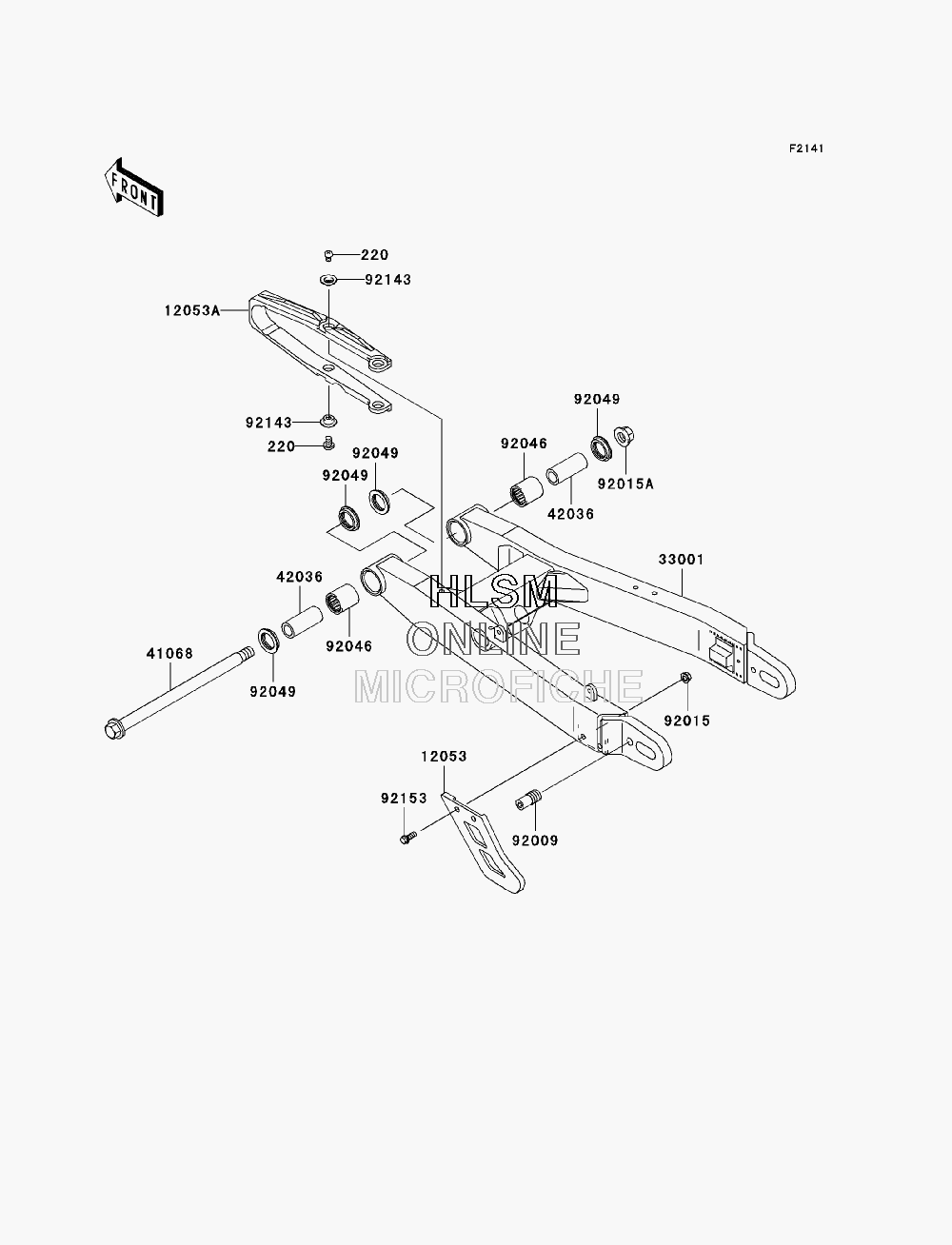

SUSPENSION - SWINGARM для Kawasaki SUPER SHERPA (KL250G9F) - 2009 года выпуска
-
№АртикулНазвание
-
220220AA0608 SCREW-PAN-CROSS, 6X8SCREW-PAN-CROSS, 6X8
-
1205312053-1389 GUIDE-CHAIN, REARGUIDE-CHAIN, REAR
-
12053A12053-1392 GUIDE-CHAIN, FRONTGUIDE-CHAIN, FRONT
-
3300133001-1526-CE ARM-COMP-SWING, SILVER (FOR HA)ARM-COMP-SWING, SILVER (FOR HA)
-
4106841068-1078 AXLE, FRONT, 15X242AXLE, FRONT, 15X242
-
4203642036-1335 SLEEVE, 15.1X22X52SLEEVE, 15.1X22X52
-
9200992009-1789 SCREW, SET, SOCKET, 10X21SCREW, SET, SOCKET, 10X21
-
9201592015-1078 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92015A92015-1407 NUT, 14MMNUT, 14MM
-
9204692046-1174 BEARING-NEEDLE, TA2230ZBEARING-NEEDLE, TA2230Z
-
9204992049-1289 SEAL-OIL, MHA22X29X5.7FSEAL-OIL, MHA22X29X5.7F
-
9214392143-1156 COLLARCOLLAR
-
9215392153-0695 BOLT, 6X16BOLT, 6X16
