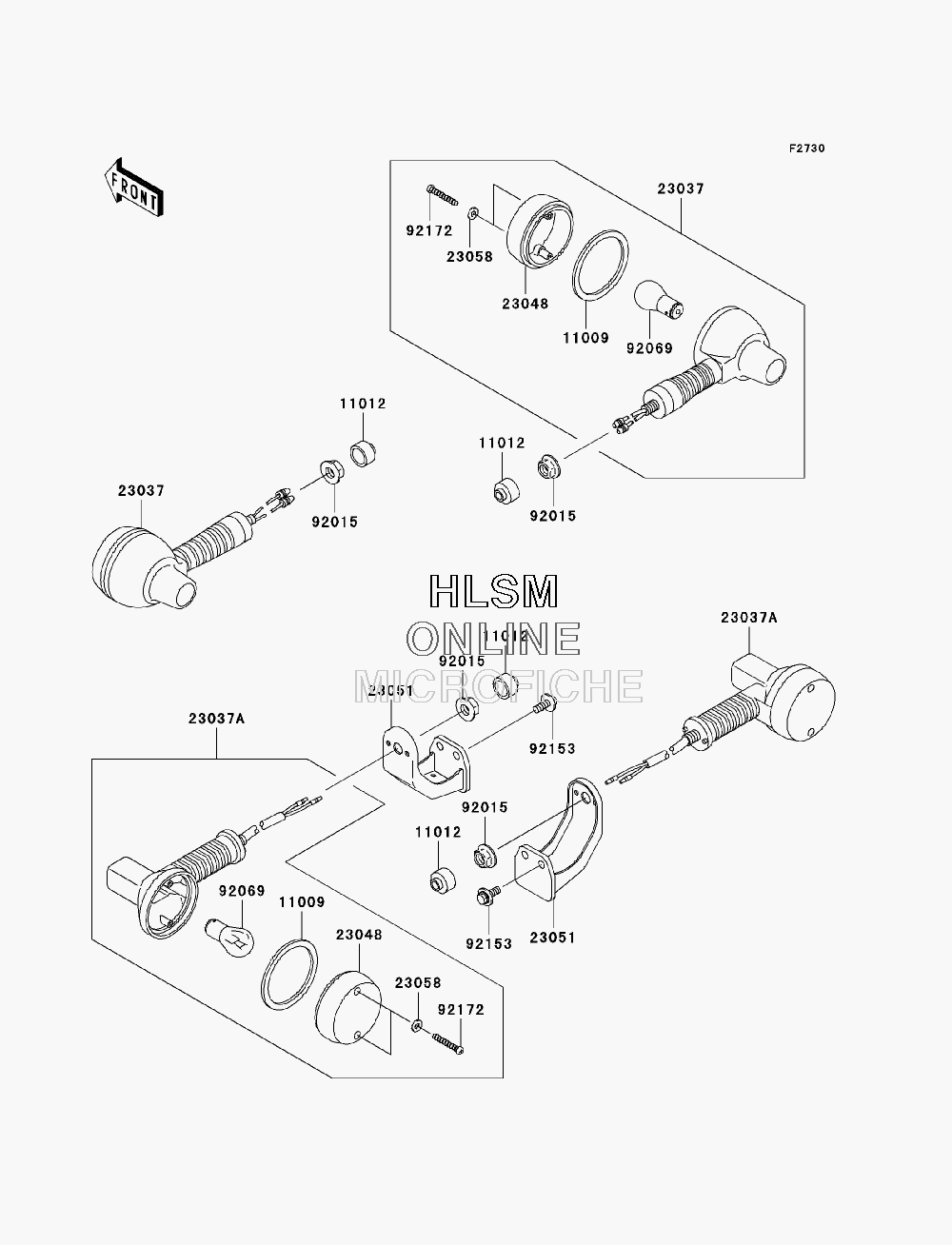

TURN SIGNALS для Kawasaki SUPER SHERPA (KL250G9F) - 2009 года выпуска
-
№АртикулНазвание
-
1100911009-1128 GASKET, TURN SIGNAL LAMP LENSGASKET, TURN SIGNAL LAMP LENS
-
1101211012-1367 CAPCAP
-
2303723037-0027 LAMP-ASSY-SIGNAL, FRONTLAMP-ASSY-SIGNAL, FRONT
-
23037A23037-0045 LAMP-ASSY-SIGNAL, REARLAMP-ASSY-SIGNAL, REAR
-
2304823048-1076 LENS-SIGNAL LAMPLENS-SIGNAL LAMP
-
2305123051-1246 BRACKET-SIGNAL LAMP, REARBRACKET-SIGNAL LAMP, REAR
-
2305823058-002 WASHER, PLAIN, 4MMWASHER, PLAIN, 4MM
-
9201592015-1428 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
9206992069-055 BULB, 12V 32CP(23W)BULB, 12V 32CP(23W)
-
9215392153-0863 BOLT, 6X16BOLT, 6X16
-
9217292172-0124 SCREW, TAPPING, 4X30SCREW, TAPPING, 4X30
