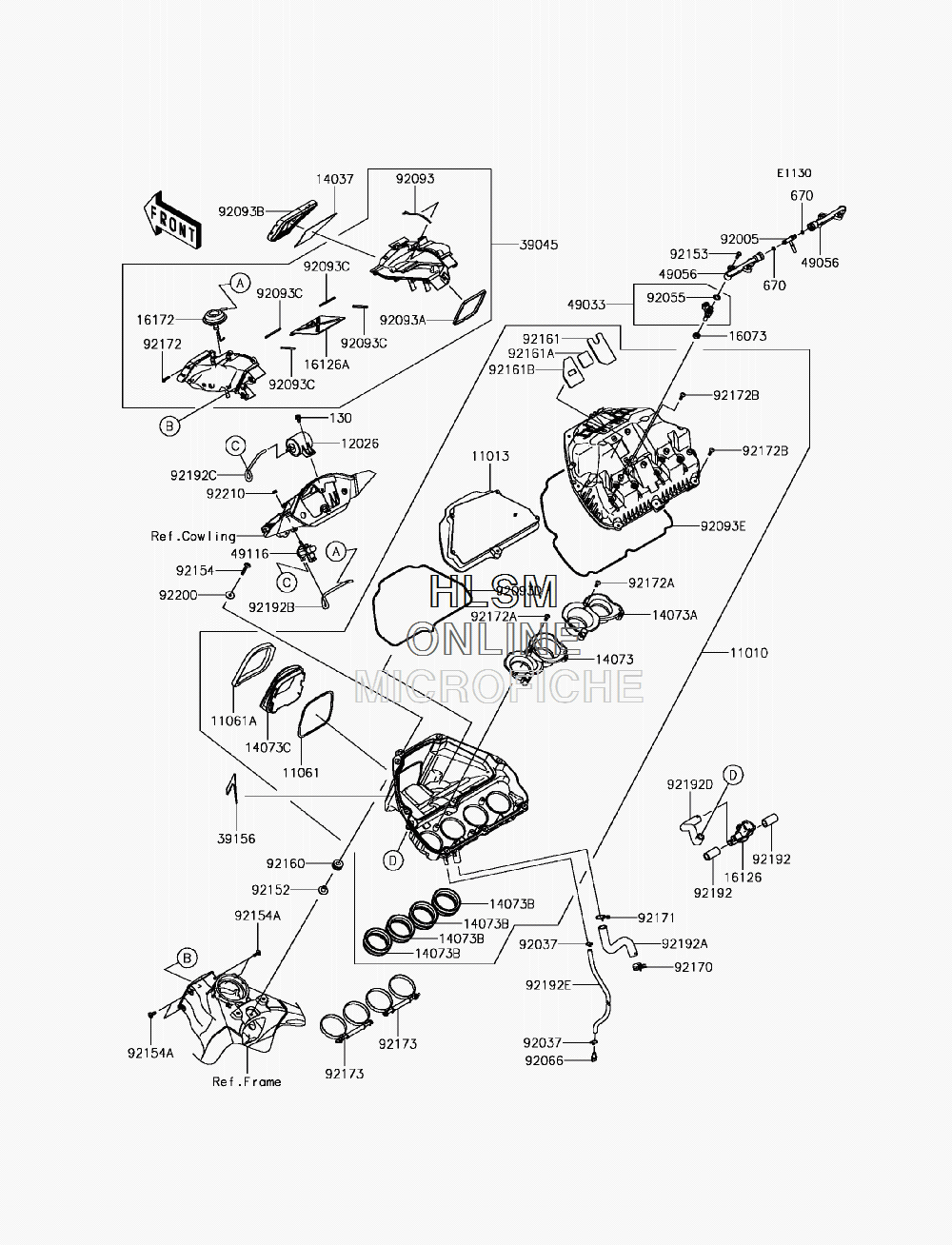

AIR CLEANER для Kawasaki NINJA ZX-10R KRT EDITION (ZX1000RHFA) - 2017 года выпуска
-
№АртикулНазвание
-
1101011010-0844 FILTER-ASSY-AIRFILTER-ASSY-AIR
-
1101311013-0757 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1106111061-0444 GASKETGASKET
-
11061A11061-0445 GASKETGASKET
-
1202612026-0009 CHAMBERCHAMBER
-
130130BA0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
1403714037-0107 SCREENSCREEN
-
1407314073-0833 DUCT, FUNNEL, #1 & #2DUCT, FUNNEL, #1 & #2
-
14073A14073-0834 DUCT, FUNNEL, #3 & #4DUCT, FUNNEL, #3 & #4
-
14073B14073-0835 DUCT, SUB FUNNELDUCT, SUB FUNNEL
-
14073C14073-0841 DUCTDUCT
-
1607316073-0129 INSULATORINSULATOR
-
1612616126-0038 VALVE, AIR SWITCHINGVALVE, AIR SWITCHING
-
16126A16126-0057 VALVEVALVE
-
1617216172-0023 ACTUATORACTUATOR
-
3904539045-0041 DUCT-ASSY, RAMDUCT-ASSY, RAM
-
3915639156-1988 PADPAD
-
4903349033-0027 NOZZLE-INJECTIONNOZZLE-INJECTION
-
4905649056-0032 PIPE-INJECTIONPIPE-INJECTION
-
4911649116-0031 VALVE-ASSYVALVE-ASSY
-
670670E1508 O RING, 8MMO RING, 8MM
-
9200592005-0125 FITTINGFITTING
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
9205592055-0124 RING-O, INJECTION NOZZLERING-O, INJECTION NOZZLE
-
9206692066-1211 PLUG, DRAINPLUG, DRAIN
-
9209392093-0175 SEALSEAL
-
92093A92093-0176 SEALSEAL
-
92093B92093-0177 SEALSEAL
-
92093C92093-0178 SEALSEAL
-
92093D92093-0686 SEAL, ELEMENTSEAL, ELEMENT
-
92093E92093-0693 SEAL, CASESEAL, CASE
-
9215292152-2197 COLLARCOLLAR
-
9215392153-0361 BOLT, FLANGED, 5MMBOLT, FLANGED, 5MM
-
9215492154-0435 BOLT, SOCKET, 6X30BOLT, SOCKET, 6X30
-
92154A92154-1882 BOLT, FLANGED, BUTTON, 6X18BOLT, FLANGED, BUTTON, 6X18
-
9216092160-1162 DAMPERDAMPER
-
9216192161-1844 DAMPERDAMPER
-
92161A92161-1845 DAMPERDAMPER
-
92161B92161-1846 DAMPERDAMPER
-
9217092170-1060 CLAMPCLAMP
-
9217192171-0391 CLAMPCLAMP
-
9217292172-0009 SCREW, TAPPING, 5X20SCREW, TAPPING, 5X20
-
92172A92172-0482 SCREW, TAPPING, 5X16SCREW, TAPPING, 5X16
-
92172B92172-0483 SCREW, TAPPING, 5X20SCREW, TAPPING, 5X20
-
9217392173-0222 CLAMPCLAMP
-
9219292192-0887 TUBE, 12X17.6X38TUBE, 12X17.6X38
-
92192A92192-0889 TUBE, BREATHERTUBE, BREATHER
-
92192B92192-0892 TUBE, 4X8X250TUBE, 4X8X250
-
92192C92192-1119 TUBETUBE
-
92192D92192-1619 TUBE, AIR CLEANER-ASVTUBE, AIR CLEANER-ASV
-
92192E92192-1644 TUBE, 10X13X420TUBE, 10X13X420
-
9220092200-1087 WASHER, 6.5X22X1.6WASHER, 6.5X22X1.6
-
9221092210-0368 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
