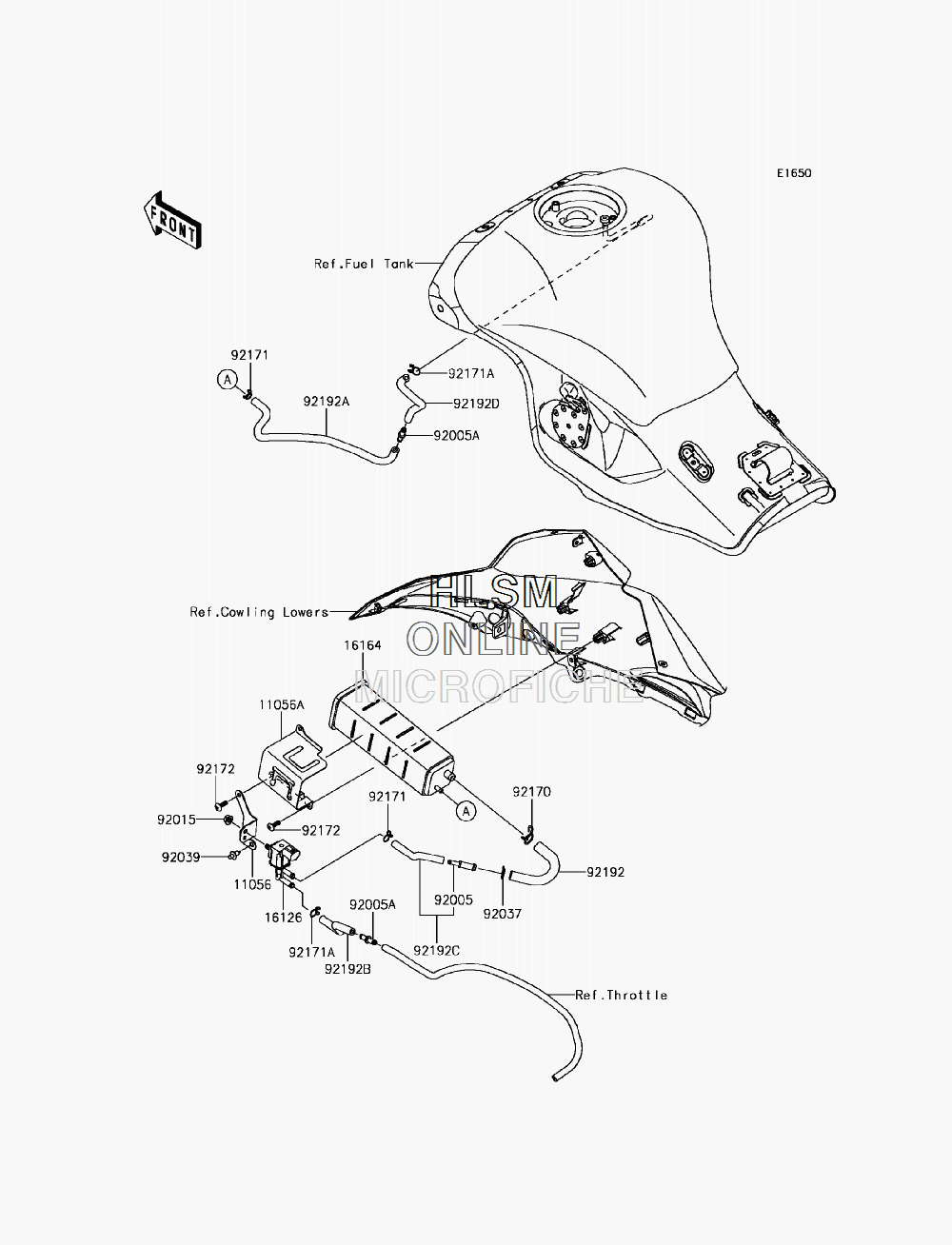

FUEL EVAPORATIVE SYSTEM (CALIF ONLY) для Kawasaki NINJA ZX-10R KRT EDITION (ZX1000RHFA) - 2017 года выпуска
-
№АртикулНазвание
-
1105611056-7697 BRACKET, SOLENOID VALVE (CALIF. ONLY)BRACKET, SOLENOID VALVE (CALIF. ONLY)
-
11056A11056-7751 BRACKET, CANISTER (CALIF. ONLY)BRACKET, CANISTER (CALIF. ONLY)
-
1612616126-0705 VALVE, SOLENOID (CALIF. ONLY)VALVE, SOLENOID (CALIF. ONLY)
-
1616416164-0009 CANISTER (CALIF. ONLY)CANISTER (CALIF. ONLY)
-
9200592005-0032 FITTING (CALIF. ONLY)FITTING (CALIF. ONLY)
-
92005A92005-0721 FITTING (CALIF. ONLY)FITTING (CALIF. ONLY)
-
9201592015-1367 NUT, FLANGED, 6MM (CALIF. ONLY)NUT, FLANGED, 6MM (CALIF. ONLY)
-
9203792037-1271 CLAMP, 12.5MM (CALIF. ONLY)CLAMP, 12.5MM (CALIF. ONLY)
-
9203992039-0068 RIVET (CALIF. ONLY)RIVET (CALIF. ONLY)
-
9217092170-1695 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
9217192171-0576 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
92171A92171-0718 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
9217292172-0175 SCREW, TAPPING, 5X16 (CALIF. ONLY)SCREW, TAPPING, 5X16 (CALIF. ONLY)
-
9219292192-1502 TUBE, TUBE(VALVE)-CANISTER (CALIF. ONLY)TUBE, TUBE(VALVE)-CANISTER (CALIF. ONLY)
-
92192A92192-1503 TUBE, CANISTER-FITTING(TANK) (CALIF. ONLY)TUBE, CANISTER-FITTING(TANK) (CALIF. ONLY)
-
92192B92192-1504 TUBE, VALVE-THROTTLE BODY (CALIF. ONLY)TUBE, VALVE-THROTTLE BODY (CALIF. ONLY)
-
92192C92192-1505 TUBE, VALVE-TUBE(CANISTER) (CALIF. ONLY)TUBE, VALVE-TUBE(CANISTER) (CALIF. ONLY)
-
92192D92192-1506 TUBE, FITTING(CANISTER)-TANK (CALIF. ONLY)TUBE, FITTING(CANISTER)-TANK (CALIF. ONLY)
