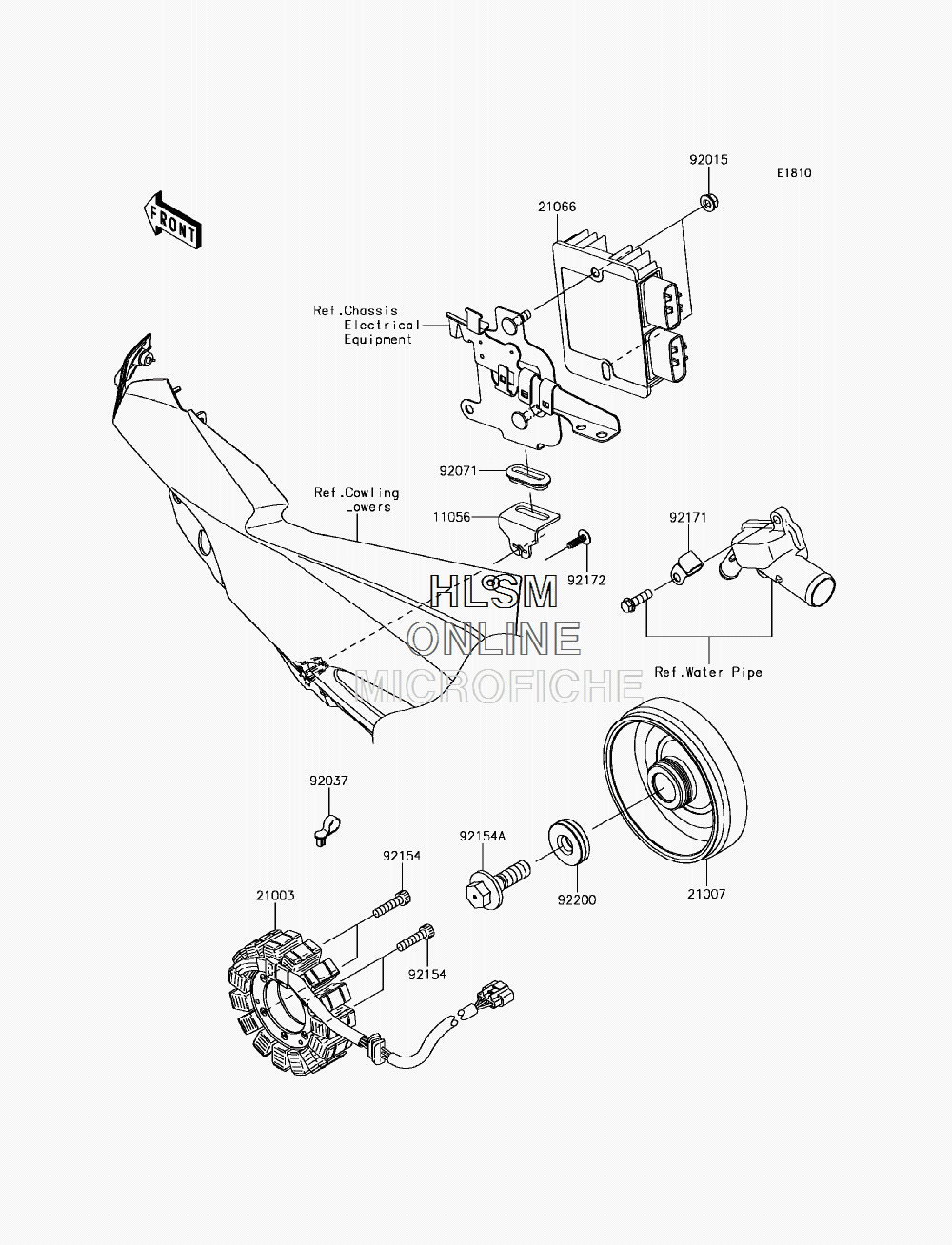

GENERATOR для Kawasaki NINJA ZX-10R KRT EDITION (ZX1000RHFA) - 2017 года выпуска
-
№АртикулНазвание
-
1105611056-7812 BRACKET, REGULATORBRACKET, REGULATOR
-
2100321003-0107 STATORSTATOR
-
2100721007-0591 ROTORROTOR
-
2106621066-0748 REGULATOR-VOLTAGEREGULATOR-VOLTAGE
-
9201592015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9203792037-1290 CLAMP, SPEED, L=43CLAMP, SPEED, L=43
-
9207192071-1187 GROMMETGROMMET
-
9215492154-0477 BOLT, SOCKET, 6X25BOLT, SOCKET, 6X25
-
92154A92154-1944 BOLT, 12X40BOLT, 12X40
-
9217192171-0534 CLAMPCLAMP
-
9217292172-0175 SCREW, TAPPING, 5X16SCREW, TAPPING, 5X16
-
9220092200-0369 WASHER, 12X34X9WASHER, 12X34X9
