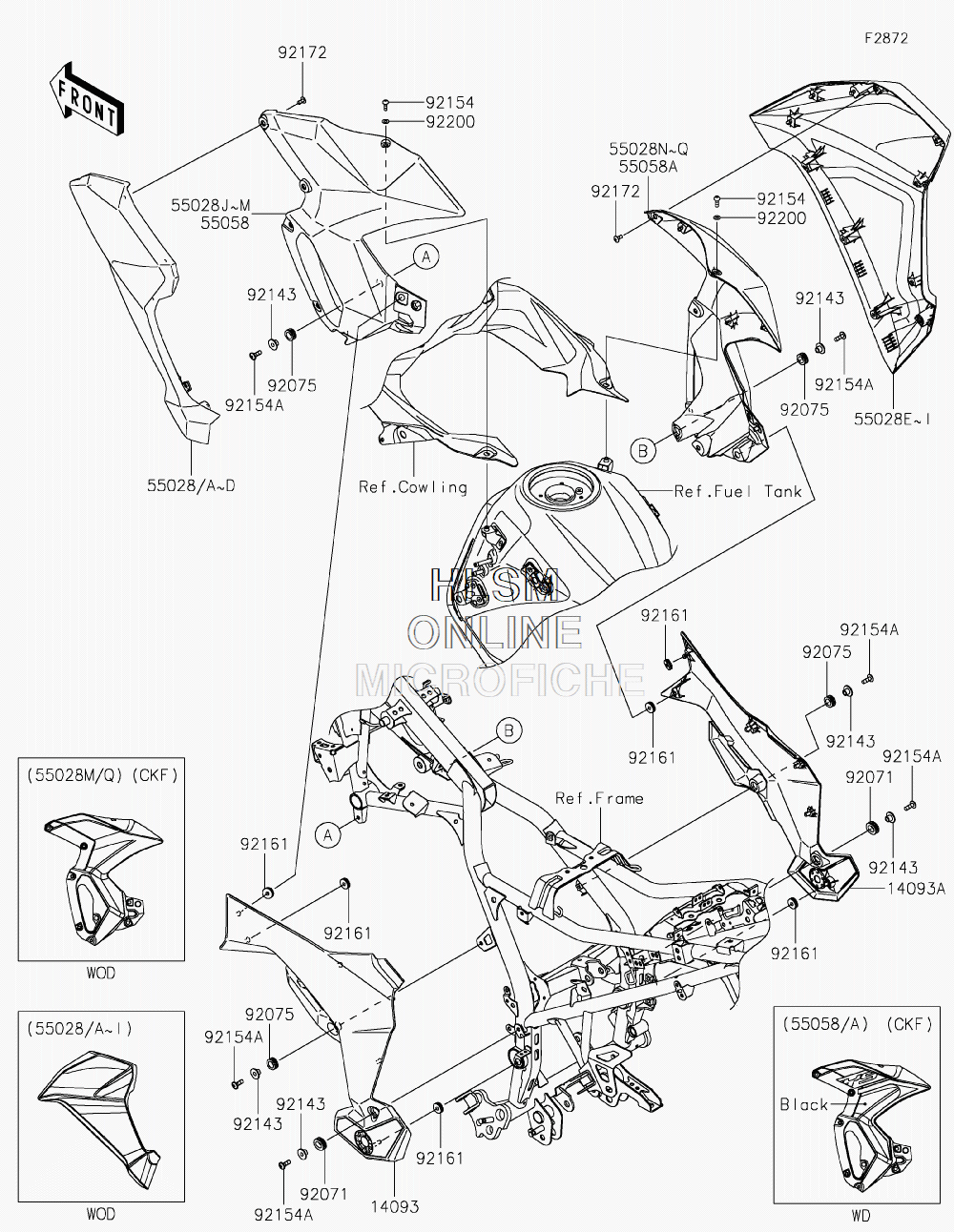

COWLING - LOWERS для Kawasaki VERSYS-X 300 ABS (KLE300CHF) - 2017 года выпуска
-
№АртикулНазвание
-
1409314093-0558 COVER, PIVOT, LEFT HANDCOVER, PIVOT, LEFT HAND
-
14093A14093-0559 COVER, PIVOT, RIGHT HANDCOVER, PIVOT, RIGHT HAND
-
55028A55028-0626-45W COWLING, SIDE, LEFT HAND, (M.G.GRAY) (FOR 45W)COWLING, SIDE, LEFT HAND, (M.G.GRAY) (FOR 45W)
-
55028B55028-0626-51P COWLING, SIDE, LEFT HAND, (C.L.GREEN) (FOR 51P)COWLING, SIDE, LEFT HAND, (C.L.GREEN) (FOR 51P)
-
55028F55028-0627-45W COWLING, SIDE, RIGHT HAND, (M.G.GRAY) (FOR 45W)COWLING, SIDE, RIGHT HAND, (M.G.GRAY) (FOR 45W)
-
55028G55028-0627-51P COWLING, SIDE, RIGHT HAND, (C.L.GREEN) (FOR 51P)COWLING, SIDE, RIGHT HAND, (C.L.GREEN) (FOR 51P)
-
55028K55028-0628-45L COWLING, TANK SIDE, LEFT HAND, (F.EBONY) (FOR 45W)COWLING, TANK SIDE, LEFT HAND, (F.EBONY) (FOR 45W)
-
55028L55028-0628-45W COWLING, TANK SIDE, LEFT HAND, (M.G.GRAY) (FOR 51P)COWLING, TANK SIDE, LEFT HAND, (M.G.GRAY) (FOR 51P)
-
55028O55028-0629-45L COWLING, TANK SIDE, RIGHT HAND, (F.EBONY) (FOR 45W)COWLING, TANK SIDE, RIGHT HAND, (F.EBONY) (FOR 45W)
-
55028P55028-0629-45W COWLING, TANK SIDE, RIGHT HAND, (M.G.GRAY) (FOR 51P)COWLING, TANK SIDE, RIGHT HAND, (M.G.GRAY) (FOR 51P)
-
9207192071-0768 GROMMET, 20X24X8GROMMET, 20X24X8
-
9207592075-1634 DAMPERDAMPER
-
9214392143-1016 COLLAR, L=9.6COLLAR, L=9.6
-
9215492154-0209 BOLT, SOCKET, 5X16BOLT, SOCKET, 5X16
-
92154A92154-2340 BOLT, SOCKET, 6X18BOLT, SOCKET, 6X18
-
9216192161-1911 DAMPER, 6X19X5.6DAMPER, 6X19X5.6
-
9217292172-0821 SCREW, 5X12SCREW, 5X12
-
9220092200-0006 WASHER, NYLONE, 5.3X11.5X0.5WASHER, NYLONE, 5.3X11.5X0.5
