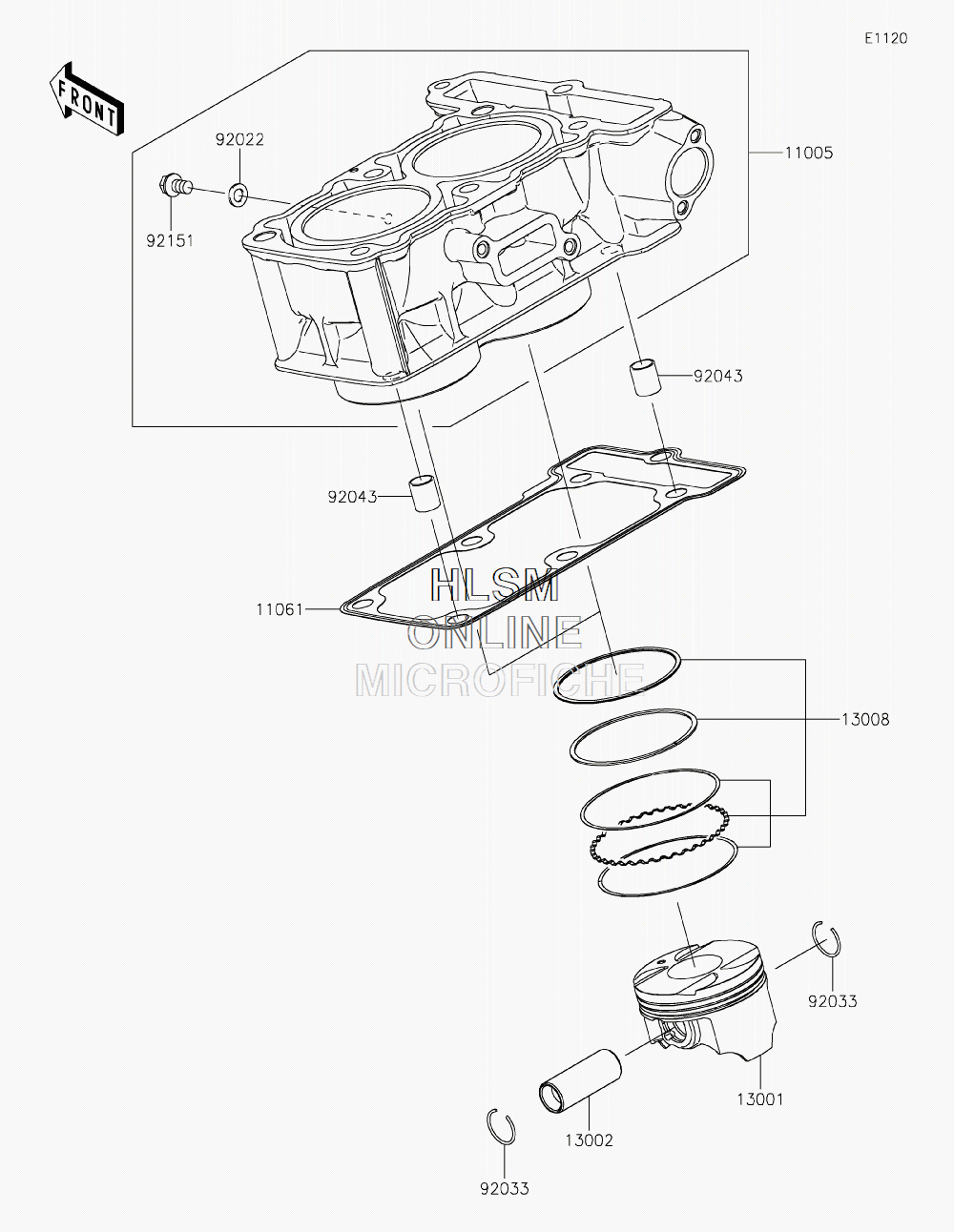

CYLINDER/PISTON(S) для Kawasaki VERSYS-X 300 ABS (KLE300CHF) - 2017 года выпуска
-
№АртикулНазвание
-
1100511005-0675 CYLINDER-ENGINECYLINDER-ENGINE
-
1106111061-0790 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
1300113001-0742 PISTON-ENGINEPISTON-ENGINE
-
1300213002-0710 PIN-PISTONPIN-PISTON
-
1300813008-0047 RING-SET-PISTONRING-SET-PISTON
-
9202292022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9203392033-0732 RING-SNAP, PISTON PINRING-SNAP, PISTON PIN
-
9204392043-1264 PIN, 8.2X10X14PIN, 8.2X10X14
-
9215192151-1233 BOLT, FLANGED, 6X10BOLT, FLANGED, 6X10
