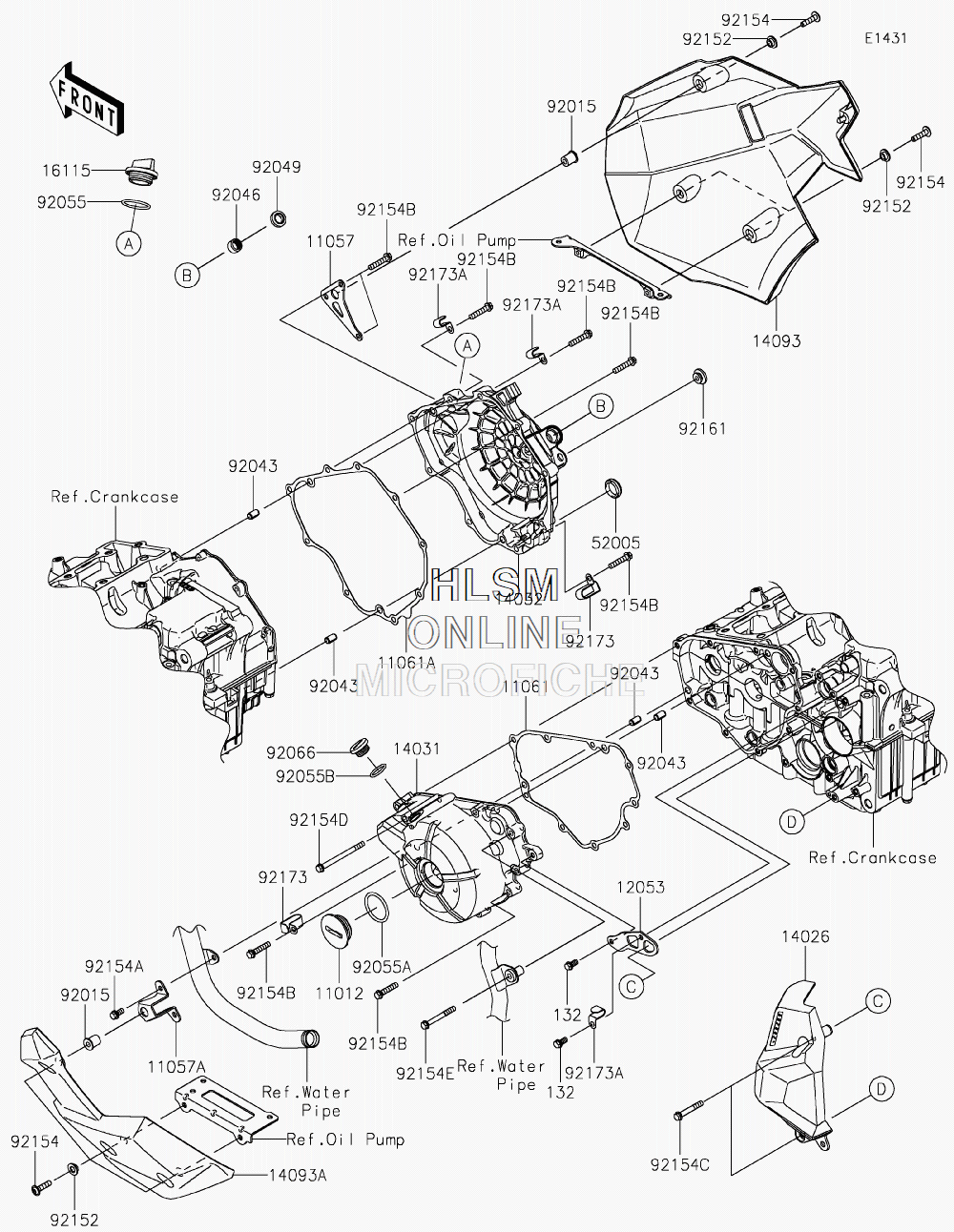

ENGINE COVER для Kawasaki VERSYS-X 300 ABS (KLE300CHF) - 2017 года выпуска
-
№АртикулНазвание
-
1101211012-1362 CAPCAP
-
1105711057-0623 BRACKET, RIGHT LOWER COVERBRACKET, RIGHT LOWER COVER
-
11057A11057-0674 BRACKET, LEFT LOWER COVERBRACKET, LEFT LOWER COVER
-
1106111061-0793 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
11061A11061-0854 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
1205312053-0237 GUIDE-CHAINGUIDE-CHAIN
-
132132BA0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
1402614026-0133 COVER-CHAINCOVER-CHAIN
-
1403114031-0562 COVER-GENERATORCOVER-GENERATOR
-
1403214032-0633 COVER-CLUTCHCOVER-CLUTCH
-
1409314093-0548 COVER, LOWER, RIGHT HANDCOVER, LOWER, RIGHT HAND
-
14093A14093-0549 COVER, LOWER, LEFT HANDCOVER, LOWER, LEFT HAND
-
1611516115-1068 CAP-OIL FILLERCAP-OIL FILLER
-
5200552005-1009 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
9201592015-1700 NUTNUT
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9204692046-0034 BEARING-NEEDLE, HK1210FMBEARING-NEEDLE, HK1210FM
-
9204992049-1560 SEAL-OILSEAL-OIL
-
9205592055-049 RING-O, 31.5X2.6RING-O, 31.5X2.6
-
92055A92055-0734 RING-O, 39.4X3.1RING-O, 39.4X3.1
-
92055B92055-1146 RING-O, 20X2RING-O, 20X2
-
9206692066-0748 PLUGPLUG
-
9215292152-2296 COLLARCOLLAR
-
9215492154-0071 BOLT, SOCKET, 6X25BOLT, SOCKET, 6X25
-
92154A92154-1140 BOLT, FLANGED, 6X12BOLT, FLANGED, 6X12
-
92154B92154-1773 BOLT, FLANGED, 6X30BOLT, FLANGED, 6X30
-
92154C92154-1774 BOLT, FLANGED, 6X40BOLT, FLANGED, 6X40
-
92154D92154-2346 BOLT, FLANGED, 6X75BOLT, FLANGED, 6X75
-
92154E92154-2347 BOLT, FLANGED, 6X50BOLT, FLANGED, 6X50
-
9216192161-1810 DAMPERDAMPER
-
9217392173-0833 CLAMPCLAMP
-
92173A92173-1811 CLAMPCLAMP
