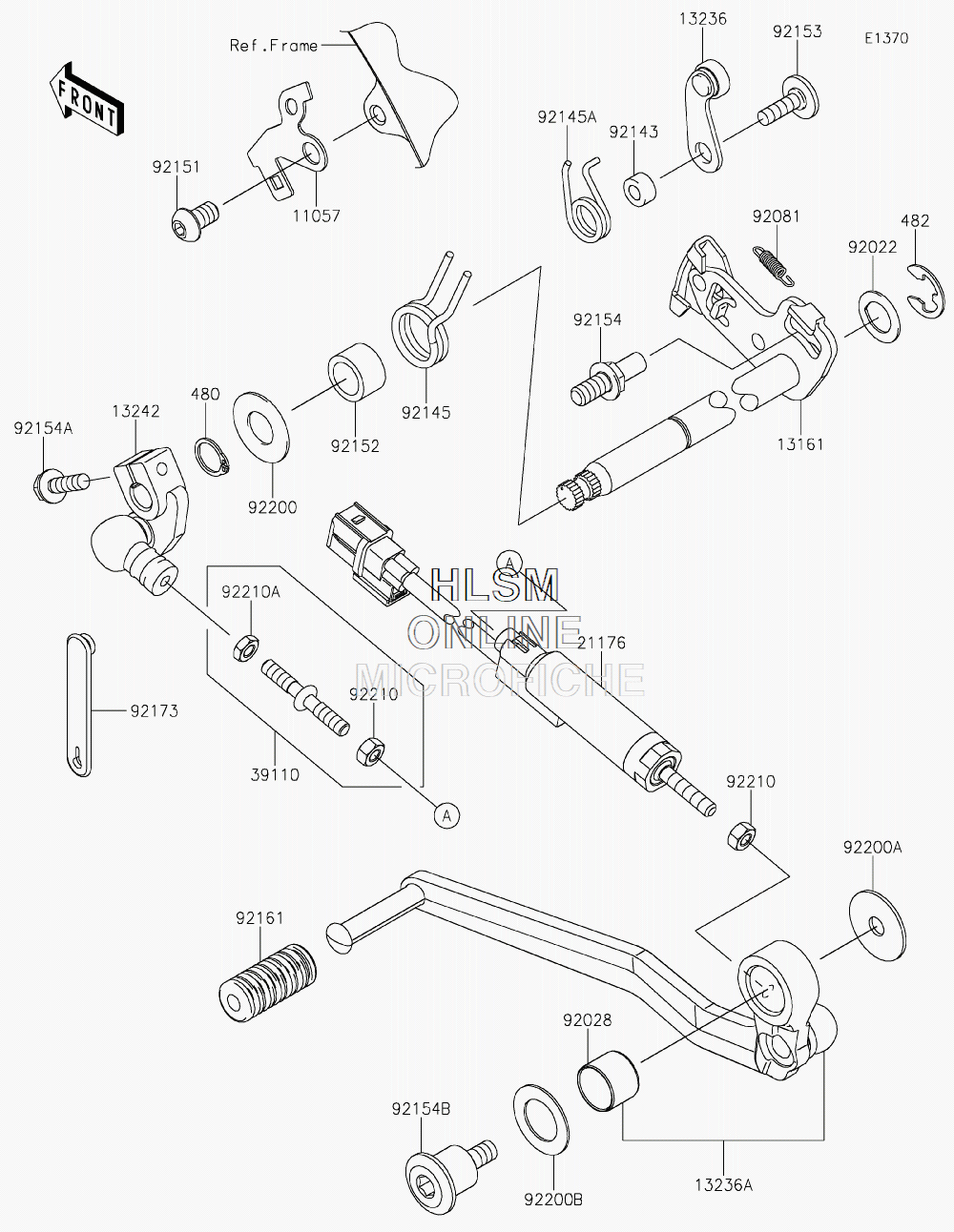

GEAR CHANGE MECHANISM для Kawasaki VERSYS 1000 SE LT+ (KLZ1000DKF) - 2019 года выпуска
-
№АртикулНазвание
-
1105711057-1984 BRACKET, QUICK SHIFTERBRACKET, QUICK SHIFTER
-
1316113161-0601 LEVER-COMP-CHANGE SHAFTLEVER-COMP-CHANGE SHAFT
-
1323613236-0068 LEVER-COMPLEVER-COMP
-
13236A13236-0812 LEVER-COMP, CHANGE PEDALLEVER-COMP, CHANGE PEDAL
-
1324213242-0156 LEVER-ASSY-CHANGELEVER-ASSY-CHANGE
-
2117621176-0884 SENSOR, QUICK SHIFTERSENSOR, QUICK SHIFTER
-
3911039110-0048 ROD-ASSY-TIEROD-ASSY-TIE
-
480480J1400 CIRCLIP-TYPE-C, 14MMCIRCLIP-TYPE-C, 14MM
-
482482J0200 CIRCLIP-TYPE-E, 12MMCIRCLIP-TYPE-E, 12MM
-
9202292022-1628 WASHER, CHANGE SHAFTWASHER, CHANGE SHAFT
-
9202892028-1558 BUSHINGBUSHING
-
9208192081-1708 SPRING, PAWL RETURNSPRING, PAWL RETURN
-
9214392143-1595 COLLARCOLLAR
-
9214592145-1871 SPRINGSPRING
-
92145A92145-1872 SPRING, GEAR POSITIONSPRING, GEAR POSITION
-
9215192151-1438 BOLT, 8X14BOLT, 8X14
-
9215292152-1383 COLLAR, 14.2X19.9X12.0COLLAR, 14.2X19.9X12.0
-
9215392153-1505 BOLT, 6X20BOLT, 6X20
-
9215492154-1838 BOLT, RETURN SPRINGBOLT, RETURN SPRING
-
92154A92154-2090 BOLT, FLANGED, 6X20BOLT, FLANGED, 6X20
-
92154B92154-2822 BOLTBOLT
-
9216192161-1300 DAMPER, CHANGE PEDALDAMPER, CHANGE PEDAL
-
9217392173-1526 CLAMPCLAMP
-
9220092200-0265 WASHERWASHER
-
92200A92200-0810 WASHER, 8.2X30X1.5WASHER, 8.2X30X1.5
-
92200B92200-0812 WASHER, 18.3X30X1WASHER, 18.3X30X1
-
9221092210-1100 NUT, 6MMNUT, 6MM
-
92210A92210-1101 NUT, LEFT HANDED, 6MMNUT, LEFT HANDED, 6MM
