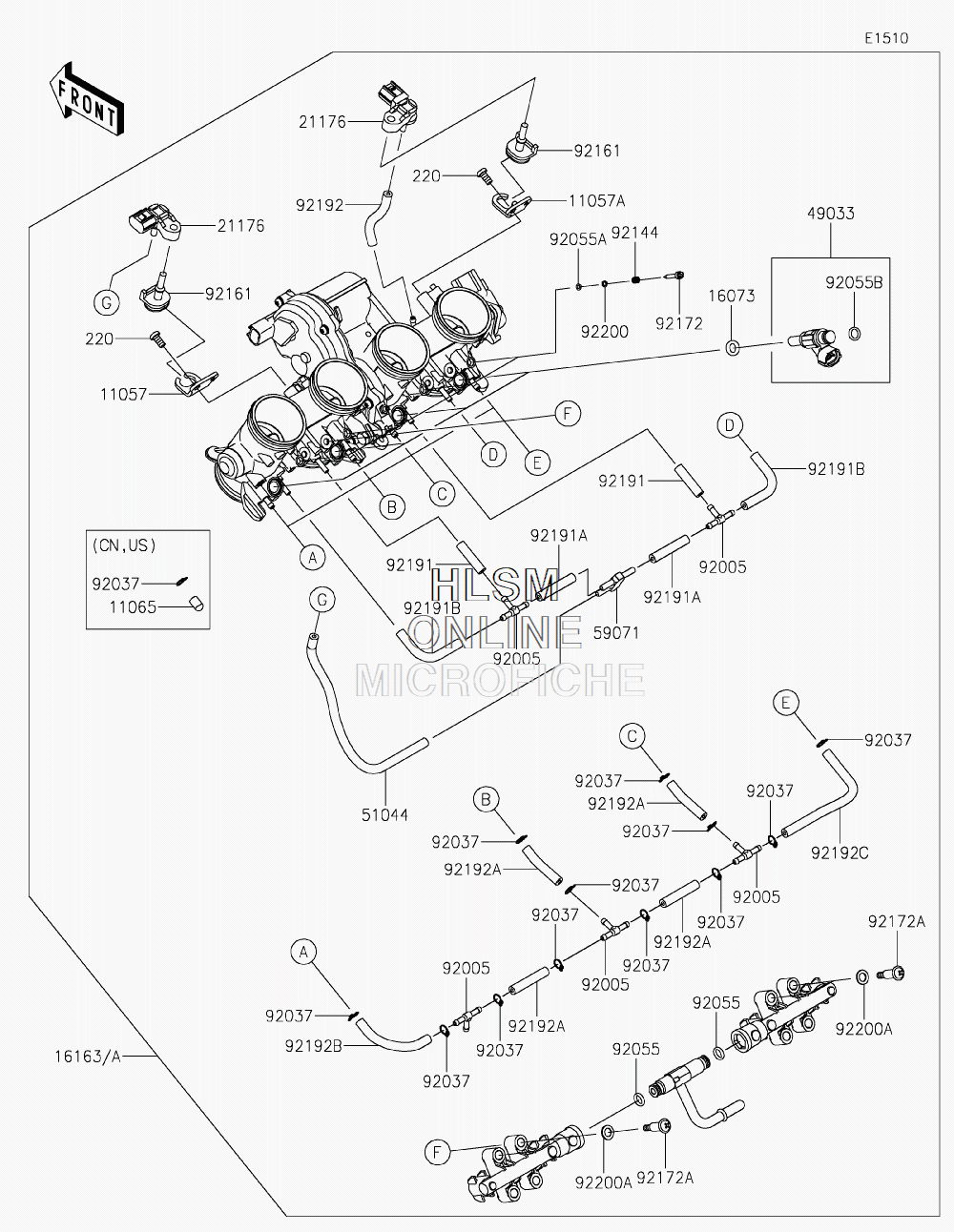

THROTTLE BODY ASSY для Kawasaki VERSYS 1000 SE LT+ (KLZ1000DKF) - 2019 года выпуска
-
№АртикулНазвание
-
1105711057-2646 BRACKETBRACKET
-
11057A11057-2647 BRACKETBRACKET
-
1106511065-0072 CAP (EXCEPT CALIF.)CAP (EXCEPT CALIF.)
-
1607316073-0848 INSULATORINSULATOR
-
1616316163-0955 THROTTLE-ASSY (CALIF. ONLY)THROTTLE-ASSY (CALIF. ONLY)
-
16163A16163-0956 THROTTLE-ASSY (EXCEPT CALIF.)THROTTLE-ASSY (EXCEPT CALIF.)
-
2117621176-0111 SENSOR, PRESSURESENSOR, PRESSURE
-
220220AA0510 SCREW-PAN-CROS, 5X10SCREW-PAN-CROS, 5X10
-
4903349033-0563 NOZZLE-INJECTIONNOZZLE-INJECTION
-
5104451044-0915 TUBE-ASSYTUBE-ASSY
-
5907159071-0022 JOINTJOINT
-
9200592005-1380 FITTING (EXCEPT CALIF.)FITTING (EXCEPT CALIF.)
-
9200592005-1380 FITTING (CALIF. ONLY)FITTING (CALIF. ONLY)
-
9203792037-1124 CLAMP, TUBE (EXCEPT CALIF.)CLAMP, TUBE (EXCEPT CALIF.)
-
9203792037-1124 CLAMP, TUBE (CALIF. ONLY)CLAMP, TUBE (CALIF. ONLY)
-
9205592055-0761 RING-ORING-O
-
92055A92055-0840 RING-ORING-O
-
92055B92055-0937 RING-O, INJECTION NOZZLERING-O, INJECTION NOZZLE
-
9214492144-1674 SPRING, THROTTLE STOP SCREWSPRING, THROTTLE STOP SCREW
-
9216192161-0673 DAMPERDAMPER
-
9217292172-0156 SCREWSCREW
-
92172A92172-0828 SCREW, PIPE INJECTIONSCREW, PIPE INJECTION
-
9219192191-1550 TUBE, 3.2X7.4X30TUBE, 3.2X7.4X30
-
92191A92191-1551 TUBE, 3.2X7.4X40TUBE, 3.2X7.4X40
-
92191B92191-1552 TUBE, 3.2X7.4X70TUBE, 3.2X7.4X70
-
9219292192-1493 TUBETUBE
-
92192A92192-1494 TUBE, 3.5X7.5X40 (CALIF. ONLY)TUBE, 3.5X7.5X40 (CALIF. ONLY)
-
92192B92192-1998 TUBE (CALIF. ONLY)TUBE (CALIF. ONLY)
-
92192C92192-1999 TUBE (CALIF. ONLY)TUBE (CALIF. ONLY)
-
9220092200-1564 WASHER, PILOT AIR SCREWWASHER, PILOT AIR SCREW
-
92200A92200-3807 WASHERWASHER
