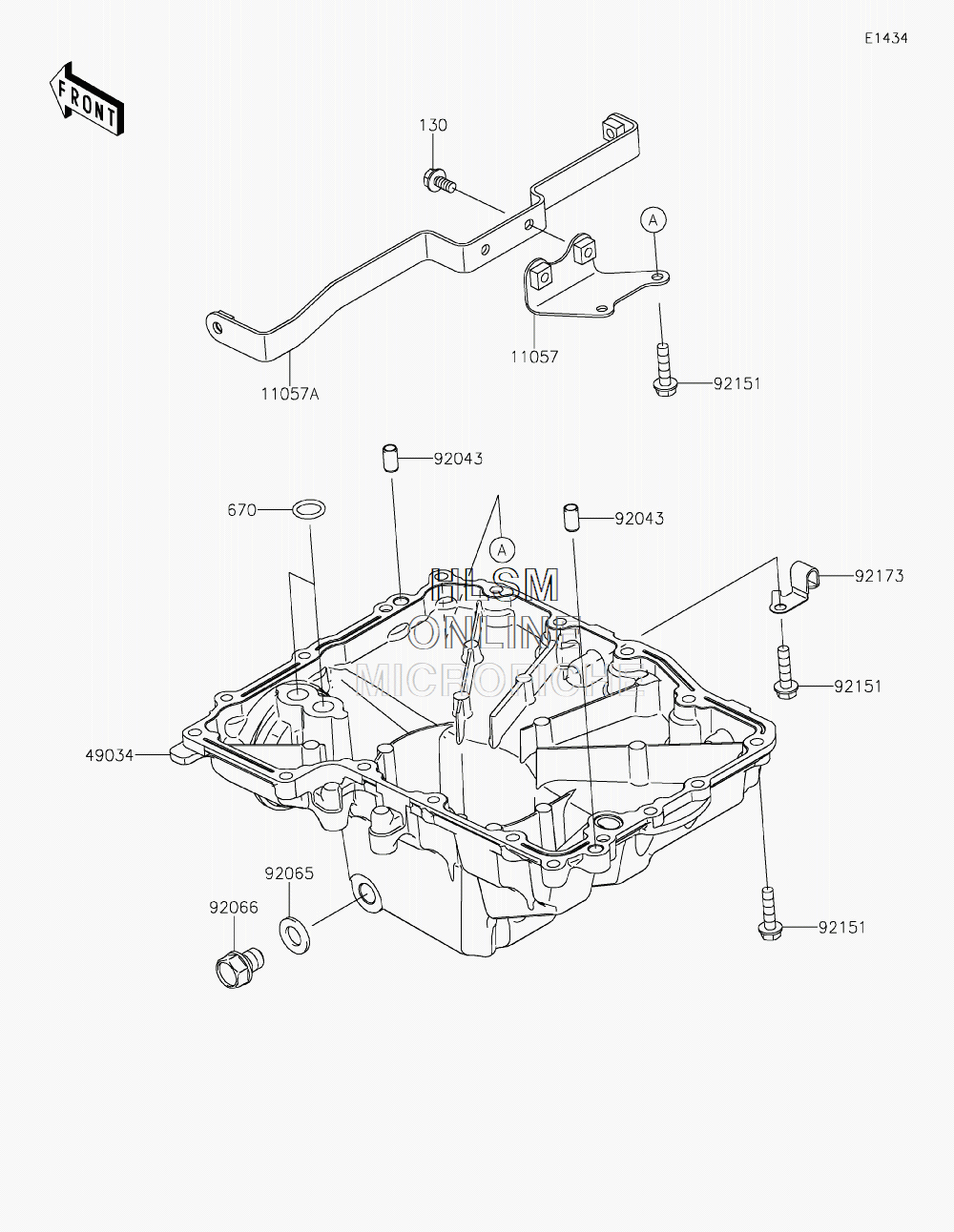

OIL PAN для Kawasaki VERSYS 1000 SE LT+ (KLZ1000DKF) - 2019 года выпуска
-
№АртикулНазвание
-
1105711057-1726 BRACKET, LOWER COWLING, FRONT, OIL PANBRACKET, LOWER COWLING, FRONT, OIL PAN
-
11057A11057-1727 BRACKET, LOWER COWLING, FRONTBRACKET, LOWER COWLING, FRONT
-
130130BB0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
4903449034-0048 PAN-OILPAN-OIL
-
670670D2014 O RING, 14MMO RING, 14MM
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9206592065-097 GASKET, 12X22X2GASKET, 12X22X2
-
9206692066-0079 PLUG, 12X15PLUG, 12X15
-
9215192151-1225 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
9217392173-1917 CLAMP, OIL PANCLAMP, OIL PAN
