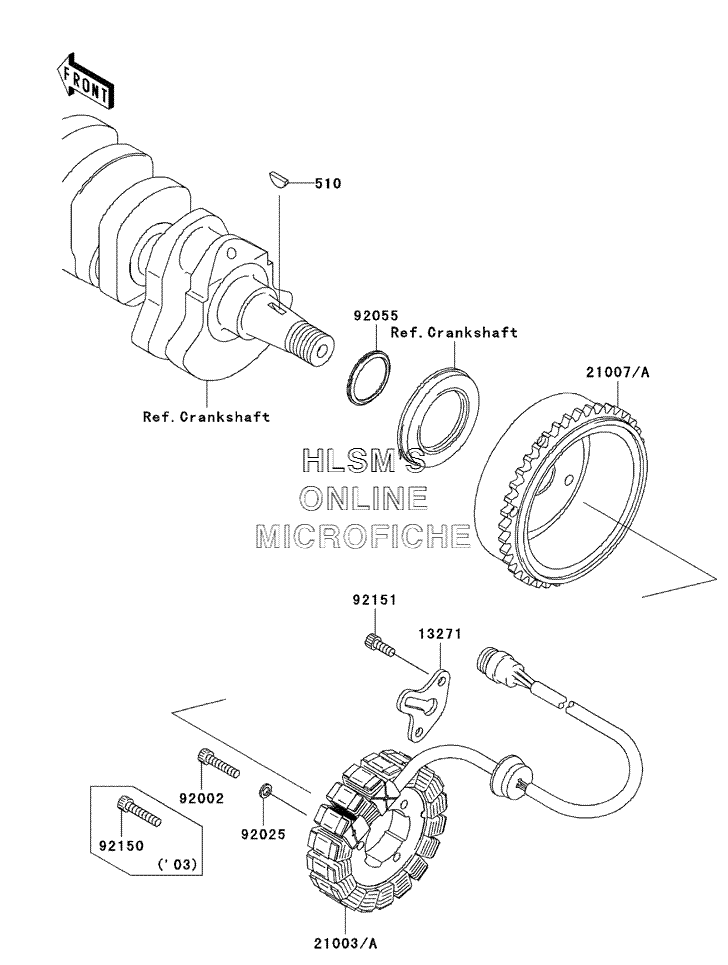

GENERATOR для Kawasaki STX-12F (JT1200-B1) - 2003 года выпуска
-
№АртикулНазвание
-
510510A4200 KEY, WOODRUFFKEY, WOODRUFF
-
1327113271-3847 PLATEPLATE
-
2100321003-3747 STATORSTATOR
-
2100721007-3728 ROTOR, MAGNETOROTOR, MAGNETO
-
9202592025-1502 SHIM, T=1.4SHIM, T=1.4
-
9205592055-3769 O-RINGO-RING
-
9215092150-1433 BOLT, SOCKET, 6X30BOLT, SOCKET, 6X30
-
9215192151-3770 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
