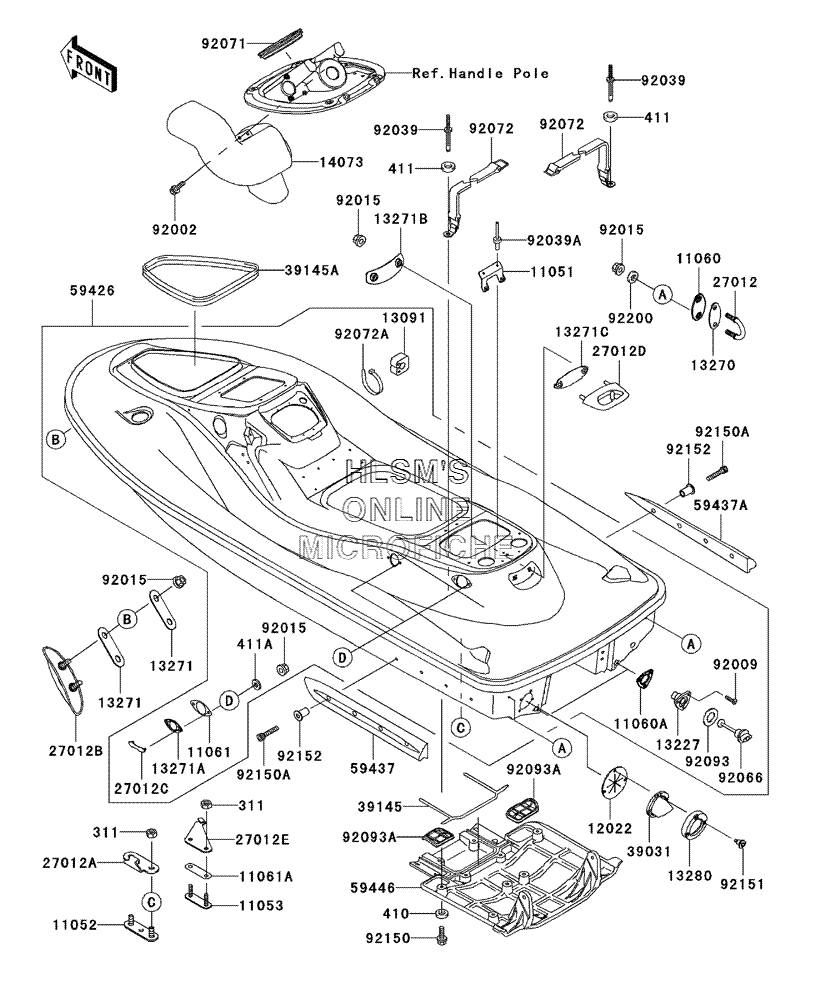

HULL для Kawasaki STX-12F (JT1200-B1) - 2003 года выпуска
-
№АртикулНазвание
-
1105111051-3802 BRACKET, BREATHER, BILGEBRACKET, BREATHER, BILGE
-
1105211052-3712 BRACKET, REAR DUCTBRACKET, REAR DUCT
-
1105311053-3746 BRACKETBRACKET
-
1106011060-3800 GASKET, U HOOK, REARGASKET, U HOOK, REAR
-
11060A11060-3801 GASKET, DRAIN PLUGGASKET, DRAIN PLUG
-
1106111061-3730 GASKET, CARGO HOOKGASKET, CARGO HOOK
-
11061A11061-3731 GASKETGASKET
-
1202212022-3712 VALVE, REEDVALVE, REED
-
1309113091-3780 HOLDERHOLDER
-
1322713227-3721-6Z HOUSING, DRAIN PLUG (F.BLACK)HOUSING, DRAIN PLUG (F.BLACK)
-
1327013270-3860 PLATEPLATE
-
1327113271-3724 PLATEPLATE
-
13271A13271-3755 PLATE, CARGO NET HOOKPLATE, CARGO NET HOOK
-
13271B13271-3859 PLATE, REAR TOWING HOOKPLATE, REAR TOWING HOOK
-
13271C13271-3889 PLATEPLATE
-
1328013280-3718 HOLDER, EXHAUST VALVEHOLDER, EXHAUST VALVE
-
1407314073-3781 DUCTDUCT
-
2701227012-3797 HOOKHOOK
-
27012A27012-3816 HOOKHOOK
-
27012B27012-3822-6Z HOOK, BOW (F.BLACK)HOOK, BOW (F.BLACK)
-
27012C27012-3828-F2 HOOK, CARGO NET (G.SILVER)HOOK, CARGO NET (G.SILVER)
-
27012D27012-3836-6Z HOOK, REAR TOWING (F.BLACK)HOOK, REAR TOWING (F.BLACK)
-
27012E27012-3849 HOOK, WATER MUFFLER (RIGHT)HOOK, WATER MUFFLER (RIGHT)
-
3903139031-3708 CAP, ENDCAP, END
-
3914539145-3768 TRIM, SEAL, JET PUMP COVERTRIM, SEAL, JET PUMP COVER
-
39145A39145-3787 TRIM, SEAL, L=1412TRIM, SEAL, L=1412
-
5942659426-3930-8C HULL, COMP (J.WHITE)HULL, COMP (J.WHITE)
-
5943759437-3733-6Z STABILIZER (LEFT) (F.BLACK)STABILIZER (LEFT) (F.BLACK)
-
59437A59437-3734-6Z STABILIZER (RIGHT) (F.BLACK)STABILIZER (RIGHT) (F.BLACK)
-
5944659446-3752 COVER, JET PUMPCOVER, JET PUMP
-
9200292002-3755 BOLT, 6X20BOLT, 6X20
-
9200992009-3849 SCREW, TAPPING, 4X16SCREW, TAPPING, 4X16
-
9201592015-3709 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
9203992039-3741 RIVETRIVET
-
92039A92039-3755 RIVETRIVET
-
9206692066-3783-6Z PLUG, REAR, DRAIN (F.BLACK)PLUG, REAR, DRAIN (F.BLACK)
-
9207192071-3812 GROMMETGROMMET
-
9207292072-3814 BAND, 314X18BAND, 314X18
-
92072A92072-3867 BAND, L=203.2BAND, L=203.2
-
9209392093-3720 SEALSEAL
-
311311R0600 NUT, HEX, 6MMNUT, HEX, 6MM
-
410410S0600 WASHER, PLAIN, SMALL, 6MMWASHER, PLAIN, SMALL, 6MM
-
411411S0500 WASHER, PLAIN, 5MMWASHER, PLAIN, 5MM
-
411A411S0800 WASHER, PLAIN, 8MMWASHER, PLAIN, 8MM
-
92093A92093-3765 SEALSEAL
-
9215092150-3775 BOLT, SOCKET, 6X18BOLT, SOCKET, 6X18
-
92150A92150-3822 BOLT, SOCKET, 6X30BOLT, SOCKET, 6X30
-
9215192151-3746 BOLT, SOCKET, M6, SHOULDERBOLT, SOCKET, M6, SHOULDER
-
9215292152-3715 COLLARCOLLAR
-
9220092200-3779 WASHERWASHER
