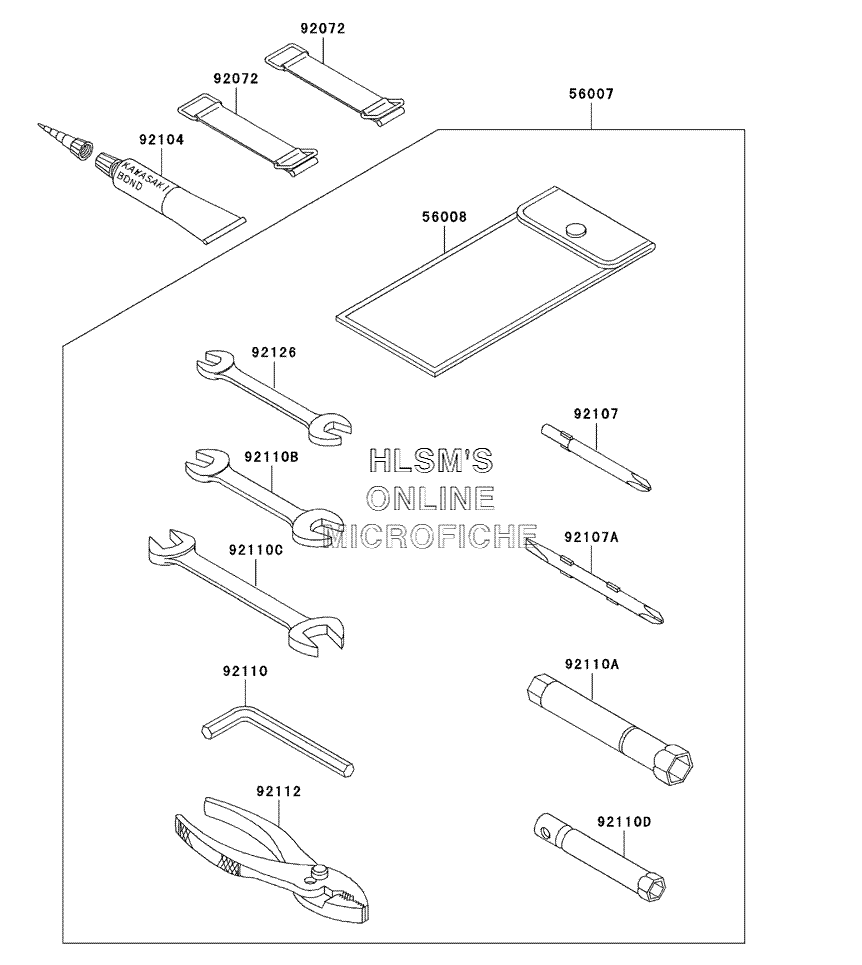

OWNER TOOLS для Kawasaki STX-12F (JT1200-B1) - 2003 года выпуска
-
№АртикулНазвание
-
5600756007-3716 TOOL, KITTOOL, KIT
-
5600856008-3704 BAG, TOOLBAG, TOOL
-
9207292072-3853 BAND, L=50BAND, L=50
-
9210492104-002 GASKET, LIQUID, TUBE, 100G (SILVER) (OPT)GASKET, LIQUID, TUBE, 100G (SILVER) (OPT)
-
9210792107-005 TOOL, DRIVER, #3 PHILLIPSTOOL, DRIVER, #3 PHILLIPS
-
92107A92107-1051 TOOL, DRIVER, #2 PHILLIPS AND SLOTTOOL, DRIVER, #2 PHILLIPS AND SLOT
-
9211092110-1015 TOOL, WRENCH, ALLEN, 5MMTOOL, WRENCH, ALLEN, 5MM
-
92110A92110-1145 TOOL, WRENCH, BOX, 16MMTOOL, WRENCH, BOX, 16MM
-
92110B92110-1152 TOOL, WRENCH, OPEN END, 10X12TOOL, WRENCH, OPEN END, 10X12
-
92110C92110-1153 TOOL, WRENCH, OPEN END, 14X17TOOL, WRENCH, OPEN END, 14X17
-
92110D92110-1156 TOOL, WRENCH, BOX, 10MMTOOL, WRENCH, BOX, 10MM
-
9211292112-1001 TOOL, PLIERSTOOL, PLIERS
-
9212692126-004 TOOL, WRENCH, OPEN END, 8X10TOOL, WRENCH, OPEN END, 8X10
Все узлы модели:
- BILGE SYSTEM
- CABLES
- CAMSHAFT(S)/TENSIONER
- COOLING (SERIAL JTT20BE002476 AND BELOW)
- COOLING (SERIAL JTT20BE002477 AND ABOVE)
- CRANKCASE
- CRANKSHAFT
- CYLINDER HEAD
- CYLINDER HEAD COVER
- CYLINDER/PISTON(S)
- DECALS (WHITE)
- DRIVE SHAFT
- ELECTRICAL EQUIPMENT
- ENGINE COVER(S)
- ENGINE MOUNT
- FUEL INJECTION
- FUEL PUMP
- FUEL TANK
- GENERATOR
- HANDLE POLE
- HANDLEBAR
- HULL
- HULL FRONT FITTINGS
- HULL MIDDLE FITTINGS
- HULL REAR FITTINGS
- IGNITION SYSTEM
- INTAKE SILENCER
- JET PUMP
- LABELS
- MANUALS
- METERS
- MUFFLER(S)
- OIL PAN
- OIL PUMP
- • OWNER TOOLS
- PADS
- SEAT
- STARTER MOTOR
- THROTTLE
- VALVE(S)
