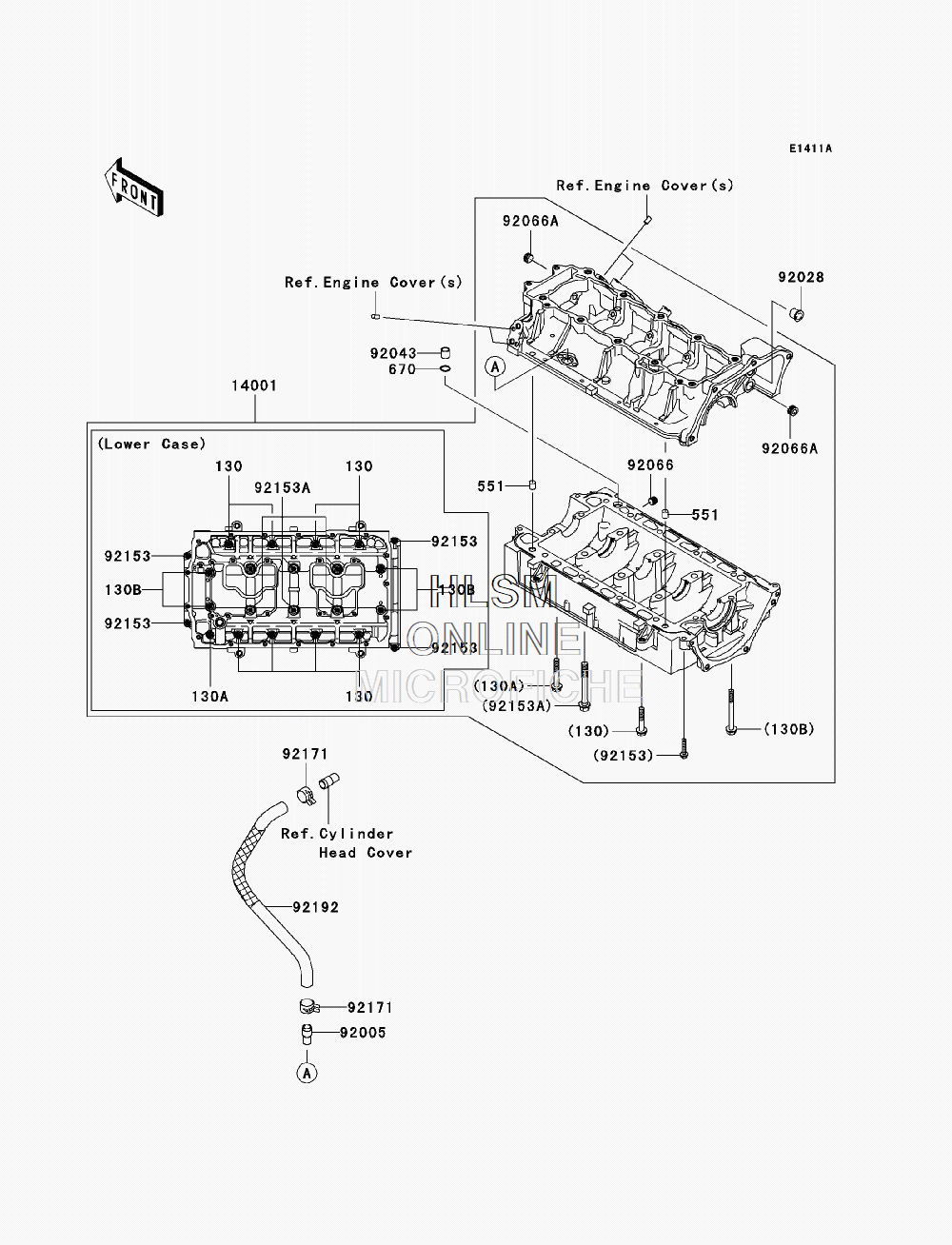

CRANKCASE для Kawasaki STX-15F (JT1500AAF) - 2010 года выпуска
-
№АртикулНазвание
-
130130CD0845 BOLT-FLANGED,8X45BOLT-FLANGED,8X45
-
130A130CD0855 BOLT-FLANGED,8X55BOLT-FLANGED,8X55
-
130B130CD0885 BOLT-FLANGED,8X85BOLT-FLANGED,8X85
-
551551R1012 PIN-DOWELPIN-DOWEL
-
670670D2014 O RING,14MMO RING,14MM
-
1400114001-3747 SET-CRANKCASESET-CRANKCASE
-
9200592005-3741 FITTINGFITTING
-
9202892028-3718 BUSHINGBUSHING
-
9204392043-1279 PIN,11.5X14X14PIN,11.5X14X14
-
9206692066-3778 PLUGPLUG
-
92066A92066-3782 PLUGPLUG
-
9215392153-3707 BOLT,6X30BOLT,6X30
-
92153A92153-3711 BOLT,10X85BOLT,10X85
-
9217192171-3710 CLAMP,TUBECLAMP,TUBE
-
9219292192-3829 TUBE,HEAD-CRANKCASETUBE,HEAD-CRANKCASE
