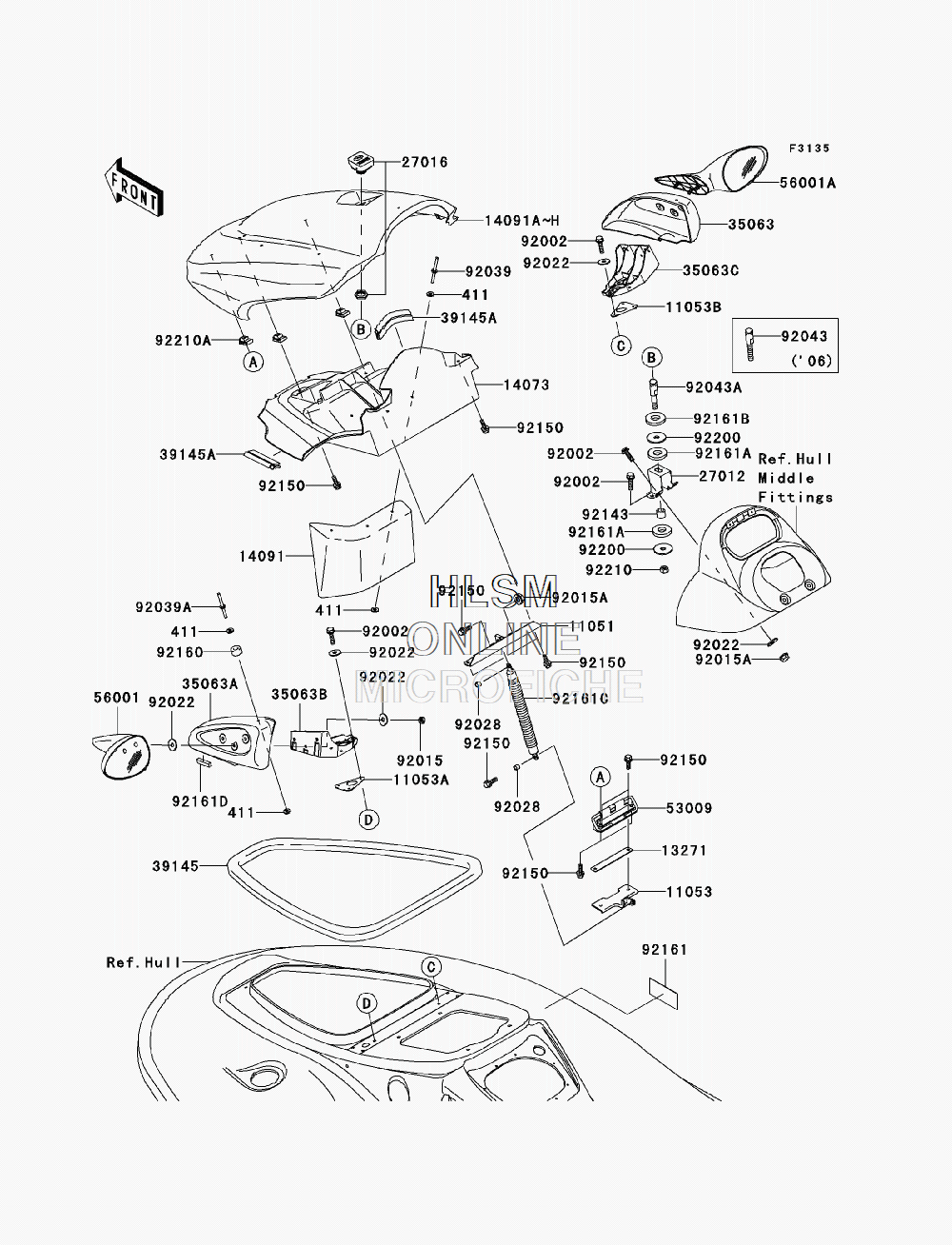

HULL FRONT FITTINGS для Kawasaki STX-15F (JT1500AAF) - 2010 года выпуска
-
№АртикулНазвание
-
1105111051-3766 BRACKETBRACKET
-
1105311053-3752 BRACKETBRACKET
-
11053A11053-3777 BRACKET, LEFT HANDBRACKET, LEFT HAND
-
11053B11053-3778 BRACKET, RIGHT HANDBRACKET, RIGHT HAND
-
1327113271-3897 PLATEPLATE
-
1407314073-3800 DUCT,HATCH,INNERDUCT,HATCH,INNER
-
1409114091-3722 COVER, FRONT DUCTCOVER, FRONT DUCT
-
14091F14091-3778-16S COVER,HATCH,M.TITANIUMCOVER,HATCH,M.TITANIUM
-
2701227012-3855 HOOKHOOK
-
2701627016-3757 LOCK-ASSYLOCK-ASSY
-
3506335063-3709-6Z STAY,MIREAROR, RIGHT HAND,F.BLACKSTAY,MIREAROR, RIGHT HAND,F.BLACK
-
35063A35063-3710-6Z STAY,MIREAROR, LEFT HAND,F.BLACKSTAY,MIREAROR, LEFT HAND,F.BLACK
-
35063B35063-3713 STAY,MIREAROR, LEFT HANDSTAY,MIREAROR, LEFT HAND
-
35063C35063-3714 STAY,MIREAROR, RIGHT HANDSTAY,MIREAROR, RIGHT HAND
-
3914539145-3773 TRIM-SEAL,L=1380TRIM-SEAL,L=1380
-
39145A39145-3789 TRIM-SEAL,L=260TRIM-SEAL,L=260
-
5300953009-3725 HINGE,HATCH COVERHINGE,HATCH COVER
-
5600156001-3721-8J MIREAROR-ASSY, LEFT HAND,F.S.BLACKMIREAROR-ASSY, LEFT HAND,F.S.BLACK
-
56001A56001-3722-8J MIREAROR-ASSY, RIGHT HAND,F.S.BLACKMIREAROR-ASSY, RIGHT HAND,F.S.BLACK
-
9200292002-3714 BOLT,6X25BOLT,6X25
-
9201592015-3766 NUT,LOCK,6MMNUT,LOCK,6MM
-
92015A92015-3767 NUT,6MMNUT,6MM
-
9202292022-3710 WASHER,6.5X20X1.5WASHER,6.5X20X1.5
-
9202892028-3765 BUSHINGBUSHING
-
9203992039-3714 RIVETRIVET
-
92039A92039-3747 RIVETRIVET
-
92043A92043-3760 PINPIN
-
9214392143-3724 COLLAR,8.2X14X11.2COLLAR,8.2X14X11.2
-
9215092150-3729 BOLT,6X18BOLT,6X18
-
9216092160-3738 DAMPERDAMPER
-
411411S0500 WASHER-PLAIN,5MMWASHER-PLAIN,5MM
-
9216192161-3728 DAMPERDAMPER
-
92161A92161-3739 DAMPERDAMPER
-
92161B92161-3747 DAMPERDAMPER
-
92161C92161-3753 DAMPER,HATCHDAMPER,HATCH
-
92161D92161-3754 DAMPERDAMPER
-
9220092200-3786 WASHER,8.5X32X2WASHER,8.5X32X2
-
9221092210-3742 NUT,LOCK,8MMNUT,LOCK,8MM
-
92210A92210-3768 NUT,6MMNUT,6MM
