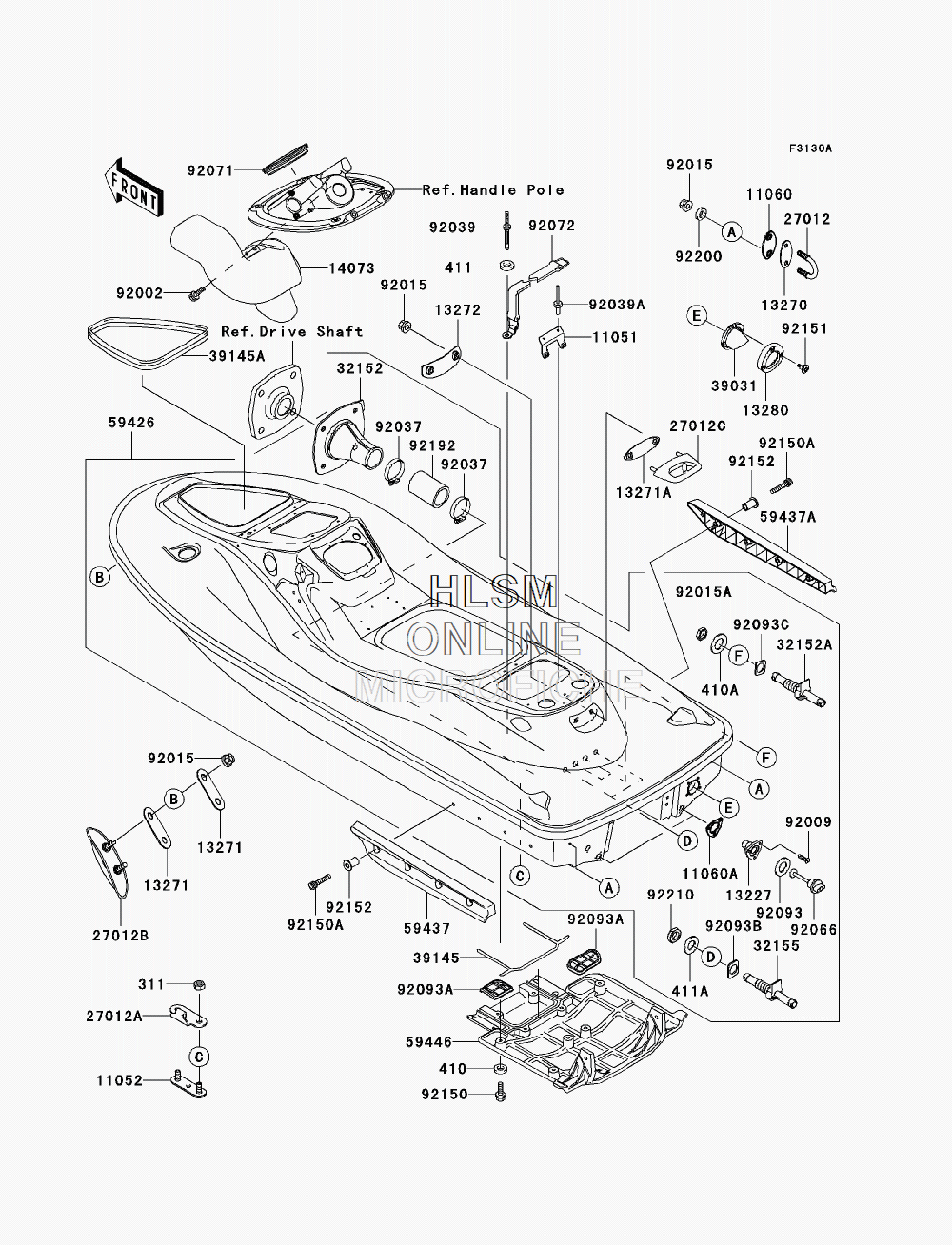

HULL для Kawasaki STX-15F (JT1500AAF) - 2010 года выпуска
-
№АртикулНазвание
-
1105111051-3802 BRACKET,BREATHER-BILGEBRACKET,BREATHER-BILGE
-
1105211052-3712 BRACKET, REAR DUCTBRACKET, REAR DUCT
-
1106011060-3800 GASKET,U HOOK, REARGASKET,U HOOK, REAR
-
11060A11060-3801 GASKET,DRAIN PLUGGASKET,DRAIN PLUG
-
1322713227-3721-6Z HOUSING,DRAIN PLUG,F.BLACKHOUSING,DRAIN PLUG,F.BLACK
-
1327013270-3860 PLATEPLATE
-
1327113271-3724 PLATEPLATE
-
13271A13271-3889 PLATEPLATE
-
1327213272-3702 PLATE, REAR TOWING HOOKPLATE, REAR TOWING HOOK
-
1328013280-3718 HOLDER,EXHAUST VALVEHOLDER,EXHAUST VALVE
-
1407314073-3801 DUCTDUCT
-
2701227012-3797 HOOKHOOK
-
27012A27012-3816 HOOKHOOK
-
27012B27012-3822-6Z HOOK,BOW,F.BLACKHOOK,BOW,F.BLACK
-
27012C27012-3836-6Z HOOK, REAR TOWING,F.BLACKHOOK, REAR TOWING,F.BLACK
-
3215232152-3703 PIPE,DRIVE SHAFTPIPE,DRIVE SHAFT
-
32152A32152-3749 PIPEPIPE
-
3215532155-3702 PIPE,COOLINGPIPE,COOLING
-
3903139031-3704 CAP-ENDCAP-END
-
3914539145-3768 TRIM-SEAL,JET PUMP COVERTRIM-SEAL,JET PUMP COVER
-
39145A39145-3787 TRIM-SEAL,L=1412TRIM-SEAL,L=1412
-
5942659426-3970-8C HULL-COMP,J.WHITE (USA ONLY)HULL-COMP,J.WHITE (USA ONLY)
-
5943759437-3743-6Z STABILIZER, LEFT HAND,F.BLACKSTABILIZER, LEFT HAND,F.BLACK
-
59437A59437-3744-6Z STABILIZER, RIGHT HAND,F.BLACKSTABILIZER, RIGHT HAND,F.BLACK
-
5944659446-3758 COVER-JET PUMPCOVER-JET PUMP
-
9200292002-3755 BOLT,6X20BOLT,6X20
-
9200992009-3849 SCREW,TAPPING,4X16SCREW,TAPPING,4X16
-
9201592015-3709 NUT,FLANGED,8MMNUT,FLANGED,8MM
-
92015A92015-3738 NUT,20MMNUT,20MM
-
9203792037-3009 CLAMPCLAMP
-
9203992039-3741 RIVETRIVET
-
92039A92039-3755 RIVETRIVET
-
9206692066-3783-6Z PLUG, REAR,DRAIN,F.BLACKPLUG, REAR,DRAIN,F.BLACK
-
9207192071-3812 GROMMETGROMMET
-
9207292072-3814 BAND,314X18BAND,314X18
-
9209392093-3720 SEALSEAL
-
92093A92093-3765 SEALSEAL
-
92093B92093-3783 SEALSEAL
-
92093C92093-3784 SEALSEAL
-
311311R0600 NUT-HEX,6MMNUT-HEX,6MM
-
410410S0600 WASHER-PLAIN-SMALL,6MMWASHER-PLAIN-SMALL,6MM
-
410A410S2000 WASHER-PLAIN-SMALLWASHER-PLAIN-SMALL
-
411411S0500 WASHER-PLAIN,5MMWASHER-PLAIN,5MM
-
411A411S1600 WASHER-PLAINWASHER-PLAIN
-
9215092150-3775 BOLT,SOCKET,6X18BOLT,SOCKET,6X18
-
92150A92150-3822 BOLT,SOCKET,6X30BOLT,SOCKET,6X30
-
9215192151-3746 BOLT,SOCKET,M6,SHOULDERBOLT,SOCKET,M6,SHOULDER
-
9215292152-3715 COLLARCOLLAR
-
9219292192-3845 TUBE,39X51X90TUBE,39X51X90
-
9220092200-3779 WASHERWASHER
-
9221092210-3707 NUTNUT
