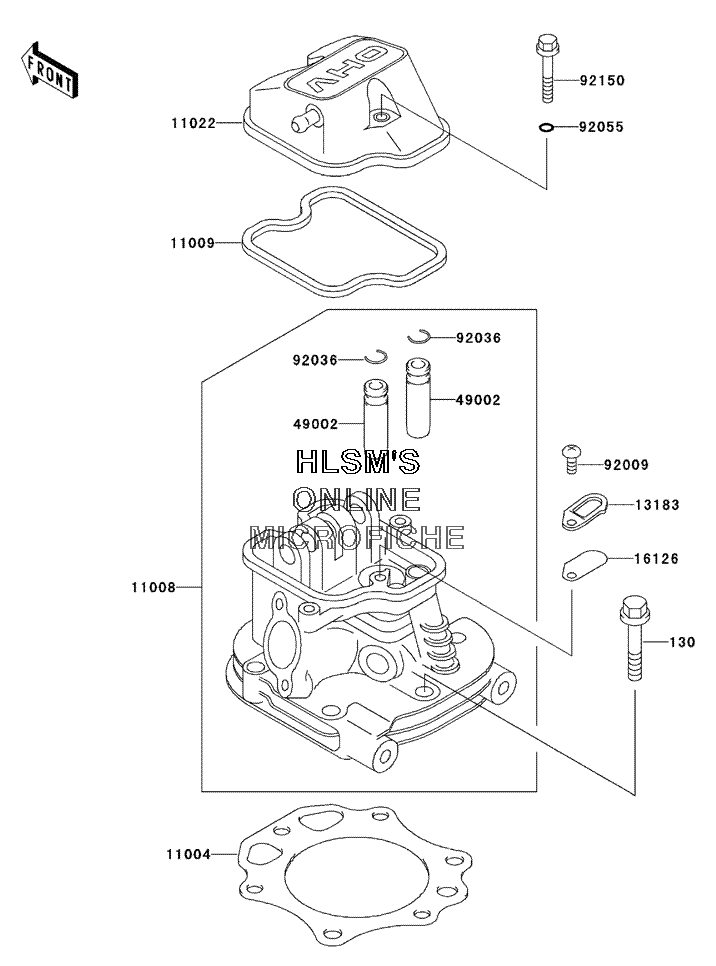

CYLINDER HEAD для Kawasaki MULE 520 (KAF300-D2) - 2001 года выпуска
-
№АртикулНазвание
-
130130T0845 BOLT-FLANGED 8X45BOLT-FLANGED 8X45
-
1100411004-2138 GASKET-HEADGASKET-HEAD
-
1100811008-2129 HEAD-COMP-CYLINDERHEAD-COMP-CYLINDER
-
1100911009-2829 GASKET, ROCKER CASEGASKET, ROCKER CASE
-
1102211022-6001 CASE-ROCKERCASE-ROCKER
-
1318313183-2299 PLATEPLATE
-
1612616126-2107 VALVEVALVE
-
4900249002-2101 GUIDE-VALVEGUIDE-VALVE
-
9200992009-2308 SCREWSCREW
-
9203692036-023 CIRCLIP-VALVECIRCLIP-VALVE
-
9205592055-1343 RING-O, 5.5X1.5RING-O, 5.5X1.5
-
9215092150-2145 BOLT, 6X35BOLT, 6X35
