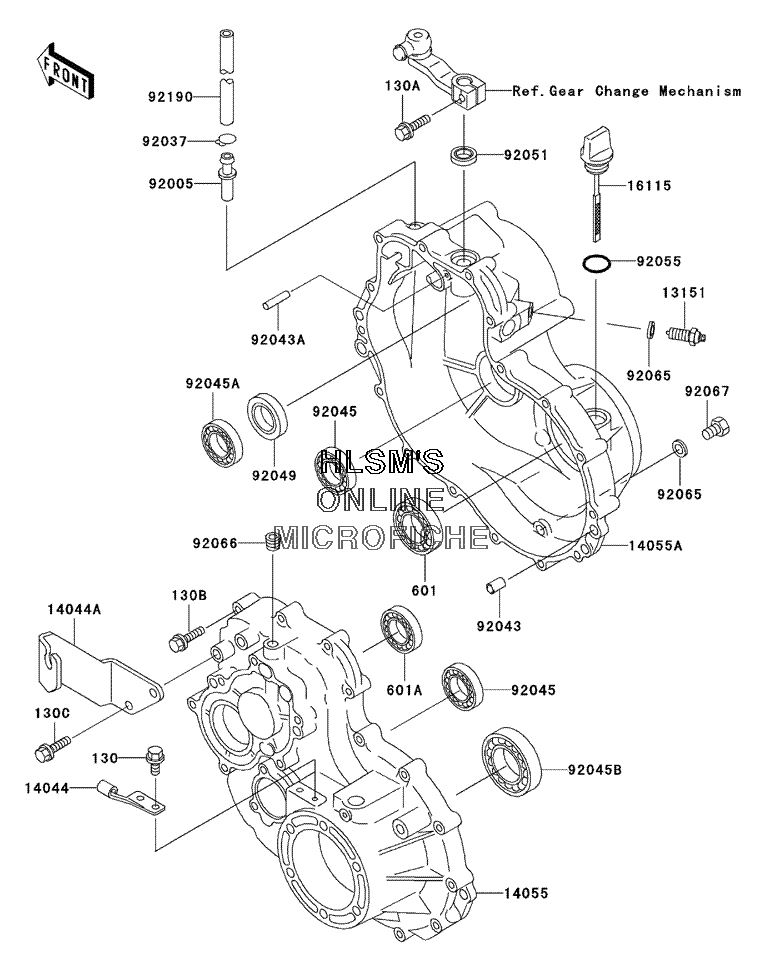

GEAR BOX для Kawasaki MULE 520 (KAF300-D2) - 2001 года выпуска
-
№АртикулНазвание
-
130130D0610 BOLT-FLANGED 6X10BOLT-FLANGED 6X10
-
130A130H0620 BOLT-FLANGEDBOLT-FLANGED
-
130B130H0635 BOLT-FLANGED, 6X35BOLT-FLANGED, 6X35
-
130C130H0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
601601B6008 BEARING-BALLBEARING-BALL
-
601A601B6303U BEARING-BALLBEARING-BALL
-
1315113151-1069 SWITCH-COMP, NEUTRALSWITCH-COMP, NEUTRAL
-
1404414044-1061 HOLDER-CABLEHOLDER-CABLE
-
14044A14044-1071 HOLDER-CABLE, CHANGEHOLDER-CABLE, CHANGE
-
1405514055-1096 CASE-GEAR (LEFT)CASE-GEAR (LEFT)
-
14055A14055-1097 CASE-GEAR (RIGHT)CASE-GEAR (RIGHT)
-
1611516115-1060 CAP-OIL FILLERCAP-OIL FILLER
-
9200592005-1127 FITTING, BREATHERFITTING, BREATHER
-
9203792037-1505 CLAMP, TUBECLAMP, TUBE
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
92043A92043-1415 PINPIN
-
9204592045-1032 BEARING-BALL, #6204BEARING-BALL, #6204
-
92045A92045-1200 BEARING-BALL, 6205CMBEARING-BALL, 6205CM
-
92045B92045-1213 BEARING-BALL, 6210CMBEARING-BALL, 6210CM
-
9204992049-2014 SEAL-OILSEAL-OIL
-
9205192051-005 SEAL-OIL, TB13225.5SEAL-OIL, TB13225.5
-
9205592055-2185 RING-O, 20MMRING-O, 20MM
-
9206592065-058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
9206692066-1227 PLUG, PT1/8X7PLUG, PT1/8X7
-
9206792067-001 PLUG, DRAIN, 10X12PLUG, DRAIN, 10X12
-
9219092190-3807 TUBETUBE
