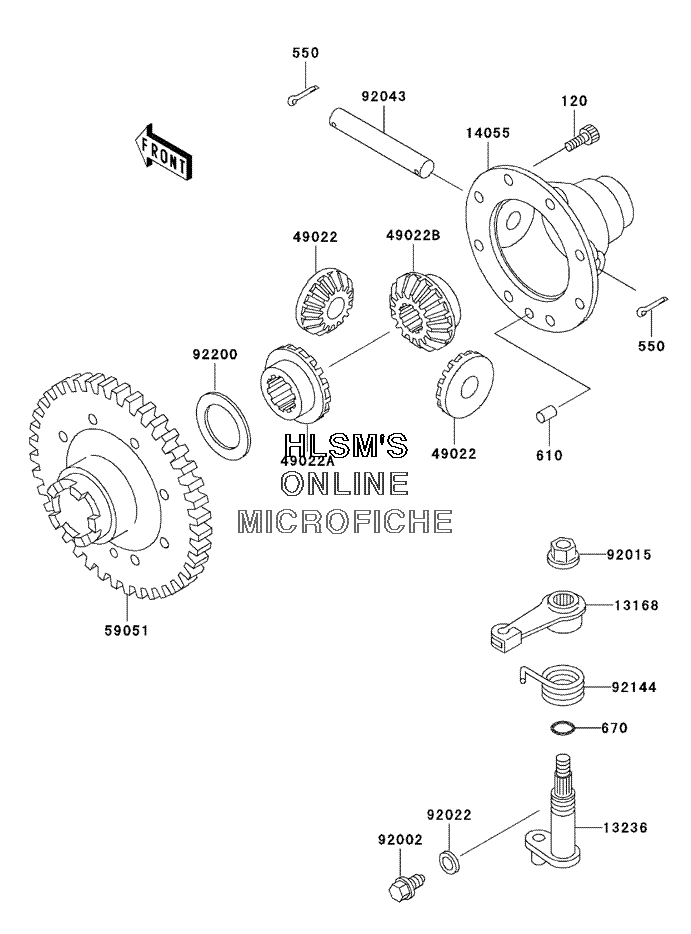

DIFFERENTIAL для Kawasaki MULE 520 (KAF300-D2) - 2001 года выпуска
-
№АртикулНазвание
-
120120P0820 BOLT-SOCKET, 8X20BOLT-SOCKET, 8X20
-
550550D2520 PIN-COTTER, 2.5X20PIN-COTTER, 2.5X20
-
610610A0812 ROLLER, 8X12ROLLER, 8X12
-
670670B2010 O RING, 10MMO RING, 10MM
-
1316813168-1523 LEVER, DIFF LOCKLEVER, DIFF LOCK
-
1323613236-1219 LEVER-COMP, DIFF LOCKLEVER-COMP, DIFF LOCK
-
1405514055-1098 CASE-GEAR, DIFFERENTIALCASE-GEAR, DIFFERENTIAL
-
4902249022-1105 GEAR-BEVEL (10 TEETH)GEAR-BEVEL (10 TEETH)
-
49022A49022-1117 GEAR-BEVEL (16 TEETH)GEAR-BEVEL (16 TEETH)
-
49022B49022-1120 GEAR-BEVEL (16 TEETH)GEAR-BEVEL (16 TEETH)
-
5905159051-1239 GEAR, DIFFERENTIAL (67 TEETH)GEAR, DIFFERENTIAL (67 TEETH)
-
9200292002-1962 BOLT, DECOMPRESSORBOLT, DECOMPRESSOR
-
9201592015-1406 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
9202292022-077 WASHER, 6.1X12X1WASHER, 6.1X12X1
-
9204392043-1458 PIN, BEVEL GEARPIN, BEVEL GEAR
-
9214492144-1198 SPRING, LOCK LEVERSPRING, LOCK LEVER
-
9220092200-1077 WASHERWASHER
